A-1
C7-613 Control System
A5E00138934-03

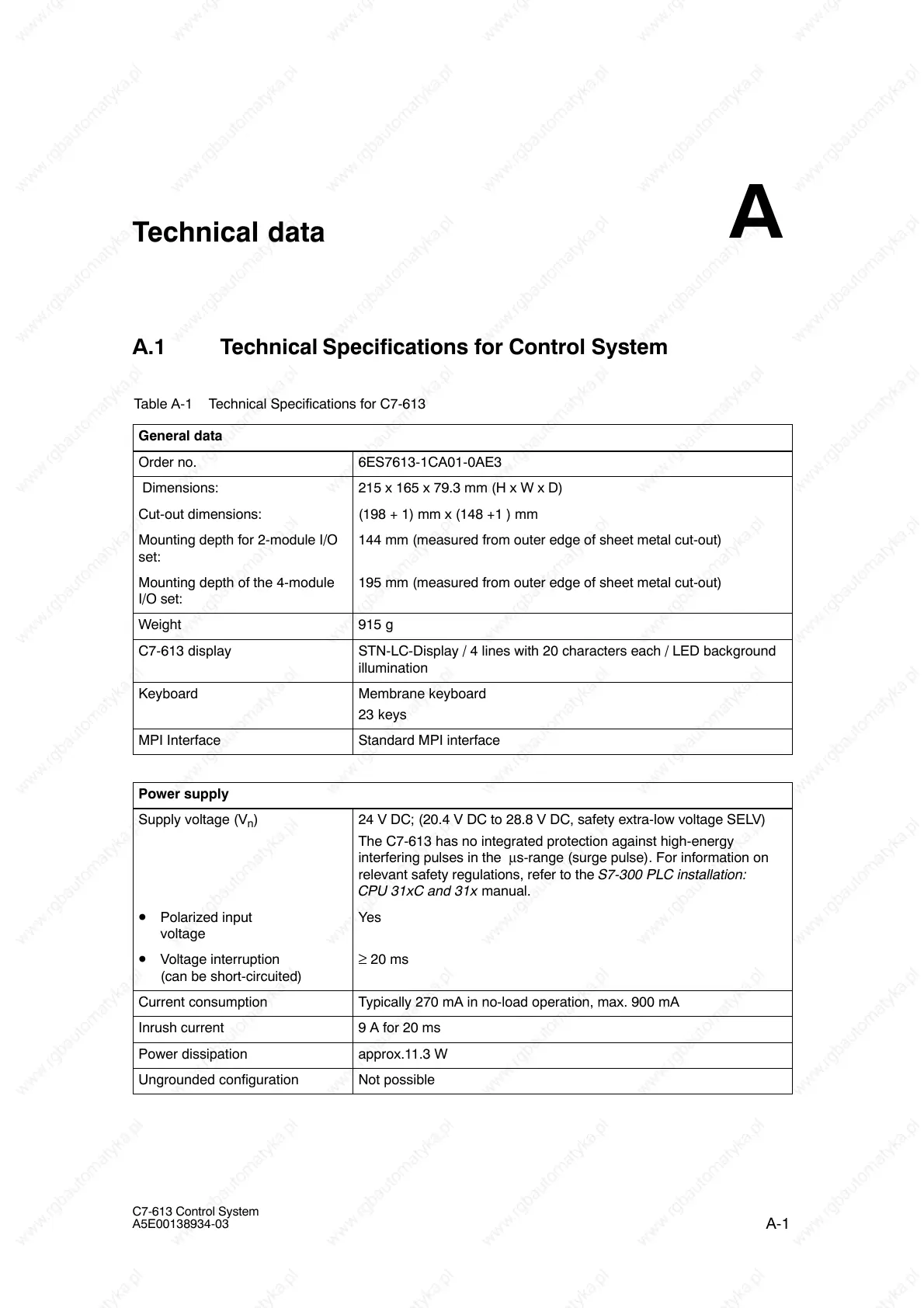

Technical data
A.1 Technical Specifications for Control System
Table A-1 Technical Specifications for C7-613
General data
Order no. 6ES7613-1CA01-0AE3
Dimensions: 215 x 165 x 79.3 mm (H x W x D)
Cut-out dimensions: (198 + 1) mm x (148 +1 ) mm
Mounting depth for 2-module I/O
set:
144 mm (measured from outer edge of sheet metal cut-out)
Mounting depth of the 4-module
I/O set:
195 mm (measured from outer edge of sheet metal cut-out)
Weight 915 g
C7-613 display STN-LC-Display / 4 lines with 20 characters each / LED background
illumination
Keyboard Membrane keyboard
23 keys
MPI Interface Standard MPI interface
Power supply
Supply voltage (V
n
) 24 V DC; (20.4 V DC to 28.8 V DC, safety extra-low voltage SELV)
The C7-613 has no integrated protection against high-energy
interfering pulses in the μs-range (surge pulse). For information on
relevant safety regulations, refer to the S7-300 PLC installation:
CPU 31xC and 31x manual.
• Polarized input
voltage
Yes
• Voltage interruption
(can be short-circuited)
≥ 20 ms
Current consumption Typically 270 mA in no-load operation, max. 900 mA
Inrush current 9 A for 20 ms
Power dissipation approx.11.3 W
Ungrounded configuration Not possible
