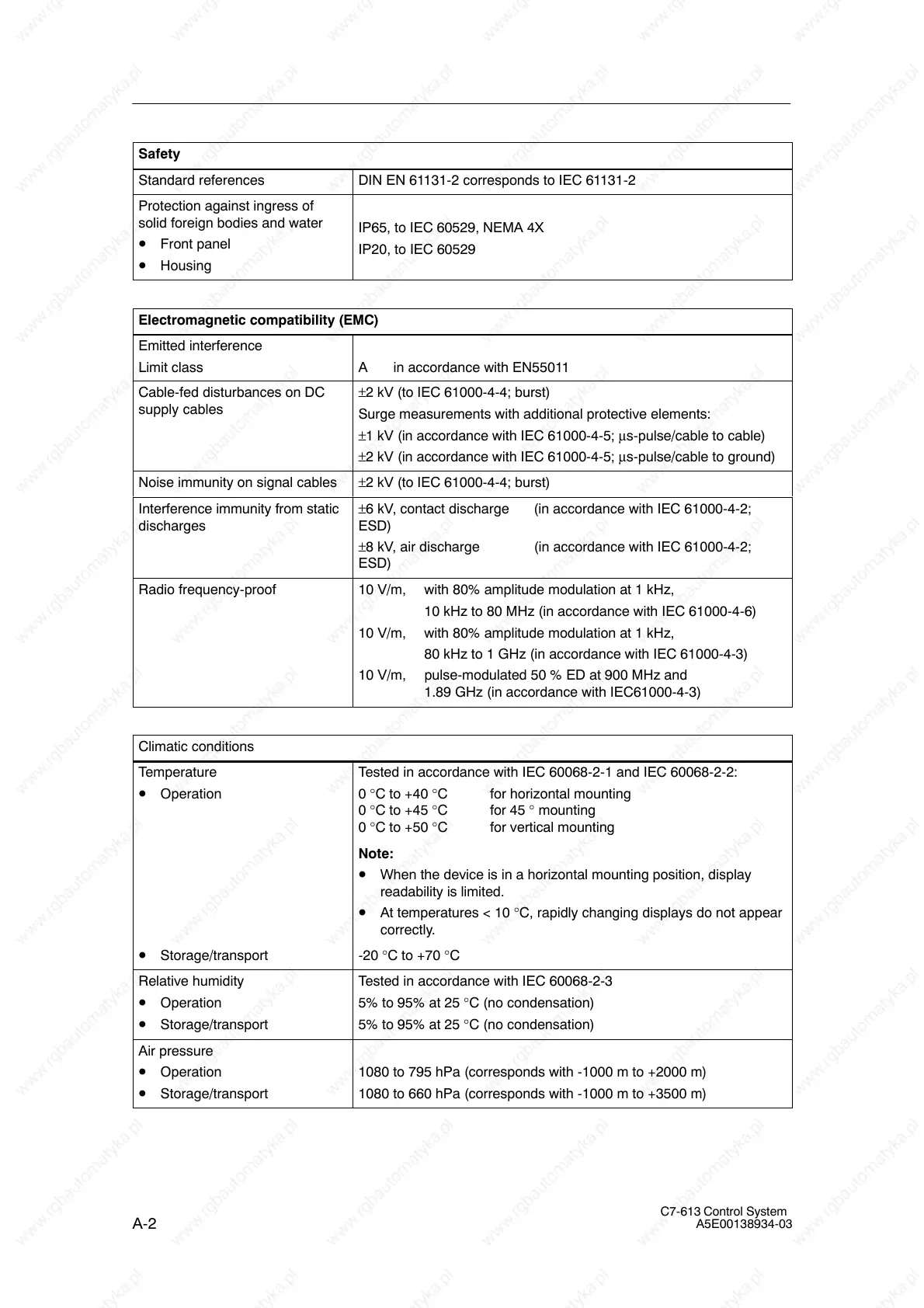

A-2
C7-613 Control System
A5E00138934-03
Safety
Standard references DIN EN 61131-2 corresponds to IEC 61131-2
Protection against ingress of
solid foreign bodies and water
• Front panel
• Housing
IP65, to IEC 60529, NEMA 4X
IP20, to IEC 60529
Electromagnetic compatibility (EMC)
Emitted interference
Limit class
A in accordance with EN55011
Cable-fed disturbances on DC
supply cables
±2 kV (to IEC 61000-4-4; burst)
Surge measurements with additional protective elements:
±1 kV (in accordance with IEC 61000-4-5; μs-pulse/cable to cable)
±2 kV (in accordance with IEC 61000-4-5; μs-pulse/cable to ground)
Noise immunity on signal cables ±2 kV (to IEC 61000-4-4; burst)
Interference immunity from static
discharges
±6 kV, contact discharge (in accordance with IEC 61000-4-2;
ESD)
±8 kV, air discharge (in accordance with IEC 61000-4-2;
ESD)
Radio frequency-proof 10 V/m, with 80% amplitude modulation at 1 kHz,
10 kHz to 80 MHz (in accordance with IEC 61000-4-6)
10 V/m, with 80% amplitude modulation at 1 kHz,
80 kHz to 1 GHz (in accordance with IEC 61000-4-3)
10 V/m, pulse-modulated 50 % ED at 900 MHz and
1.89 GHz (in accordance with IEC61000-4-3)
Climatic conditions
Temperature
• Operation
Tested in accordance with IEC 60068-2-1 and IEC 60068-2-2:
0 °C to +40 °C for horizontal mounting
0 °C to +45 °C for 45 ° mounting
0 °C to +50 °C for vertical mounting
Note:
• When the device is in a horizontal mounting position, display
readability is limited.
• At temperatures < 10 °C, rapidly changing displays do not appear
correctly.
• Storage/transport -20 °C to +70 °C
Relative humidity
• Operation
• Storage/transport
Tested in accordance with IEC 60068-2-3
5% to 95% at 25 °C (no condensation)
5% to 95% at 25 °C (no condensation)
Air pressure
• Operation
• Storage/transport
1080 to 795 hPa (corresponds with -1000 m to +2000 m)
1080 to 660 hPa (corresponds with -1000 m to +3500 m)
