A-4
C7-613 Control System
A5E00138934-03

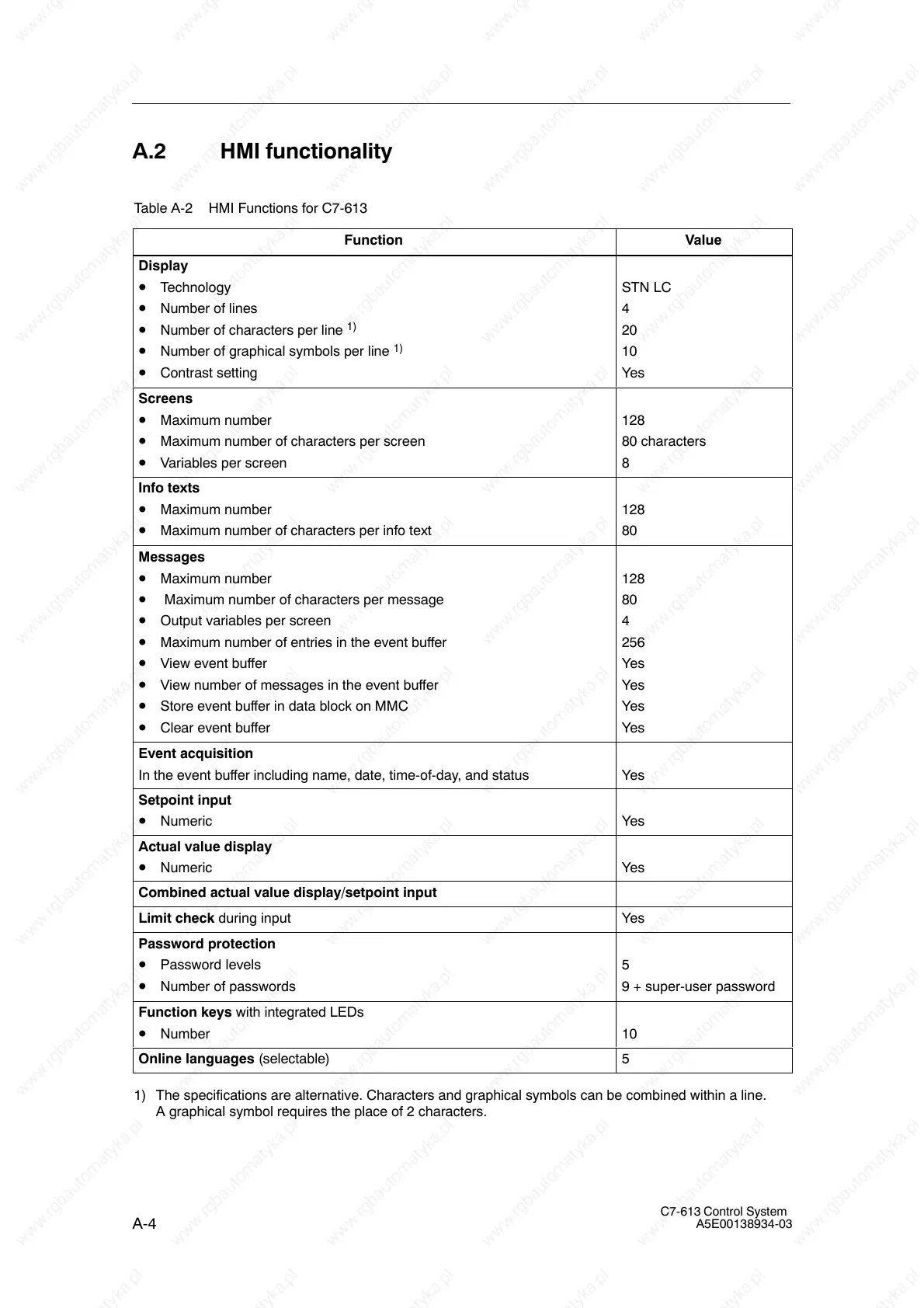

A.2 HMI functionality
Table A-2 HMI Functions for C7-613
Function
Value
Display
Technology
Number of lines
Number of characters per line
1)
Number of graphical symbols per line
1)
Contrast setting
STN LC
4
20
10
Yes
Screens
Maximum number
Maximum number of characters per screen
Variables per screen
128
80 characters
8
Info texts
Maximum number
Maximum number of characters per info text
128
80
Messages
Maximum number
Maximum number of characters per message
Output variables per screen
Maximum number of entries in the event buffer
View event buffer
View number of messages in the event buffer
Store event buffer in data block on MMC
Clear event buffer
128
80
4
256
Yes
Yes
Yes
Yes
Event acquisition
In the event buffer including name, date, time-of-day, and status
Yes
Setpoint input
Numeric Yes
Actual value display
Numeric Yes
Combined actual value display/setpoint input
Limit check during input Yes
Password protection
Password levels
Number of passwords
5
9 + super-user password
Function keys with integrated LEDs
Number 10
Online languages (selectable) 5
1) The specifications are alternative. Characters and graphical symbols can be combined within a line.
A graphical symbol requires the place of 2 characters.
