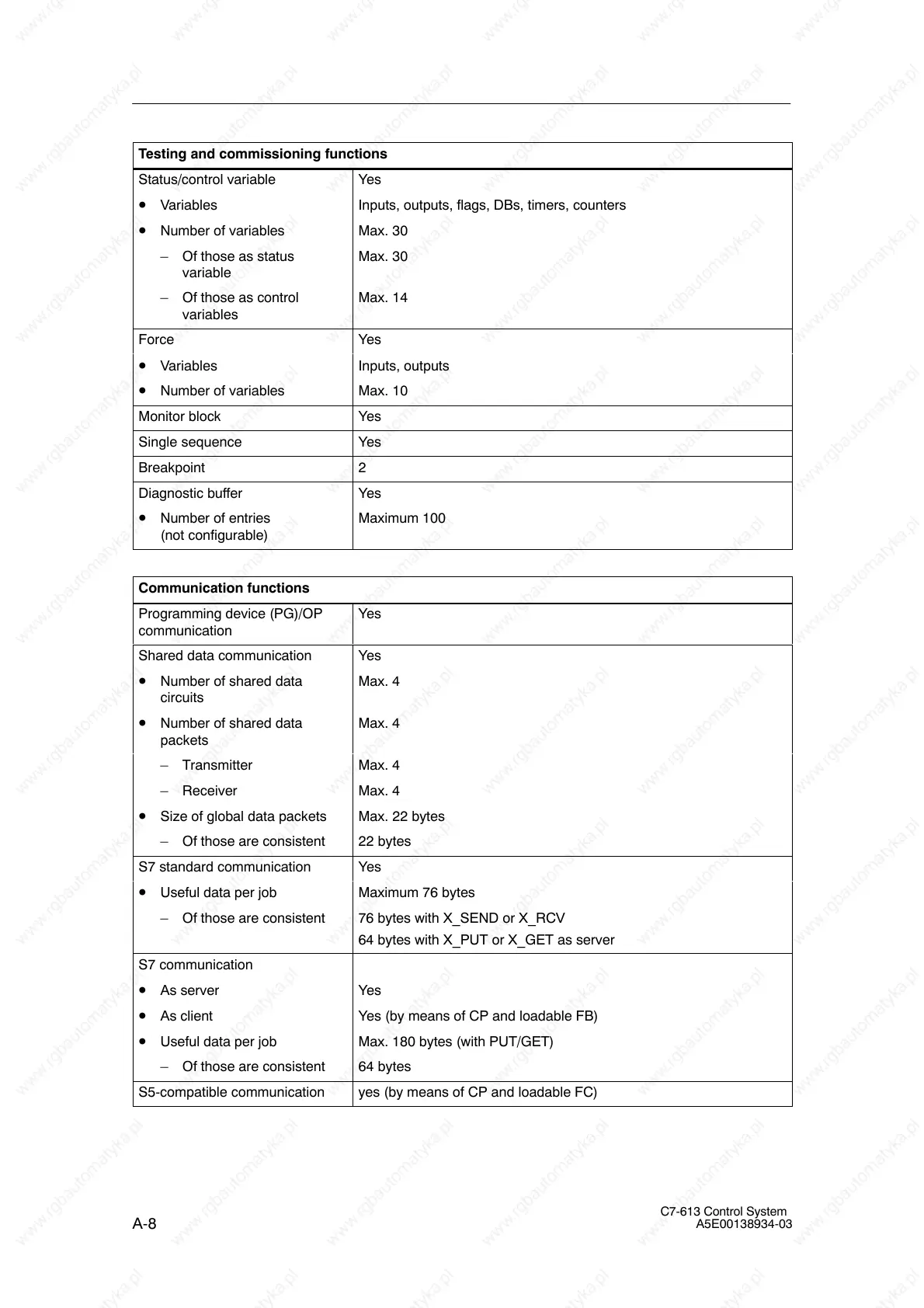

A-8
C7-613 Control System
A5E00138934-03
Testing and commissioning functions
Status/control variable Yes
• Variables Inputs, outputs, flags, DBs, timers, counters
• Number of variables Max. 30
– Of those as status
variable
Max. 30
– Of those as control
variables
Max. 14
Force Yes
• Variables Inputs, outputs
• Number of variables Max. 10
Monitor block Yes
Single sequence Yes
Breakpoint 2
Diagnostic buffer Yes
• Number of entries
(not configurable)
Maximum 100
Communication functions
Programming device (PG)/OP
communication
Yes
Shared data communication Yes
• Number of shared data
circuits
Max. 4
• Number of shared data
packets
Max. 4
– Transmitter Max. 4
– Receiver Max. 4
• Size of global data packets Max. 22 bytes
– Of those are consistent 22 bytes
S7 standard communication Yes
• Useful data per job Maximum 76 bytes
– Of those are consistent 76 bytes with X_SEND or X_RCV
64 bytes with X_PUT or X_GET as server
S7 communication
• As server Yes
• As client Yes (by means of CP and loadable FB)
• Useful data per job Max. 180 bytes (with PUT/GET)
– Of those are consistent 64 bytes
S5-compatible communication yes (by means of CP and loadable FC)
