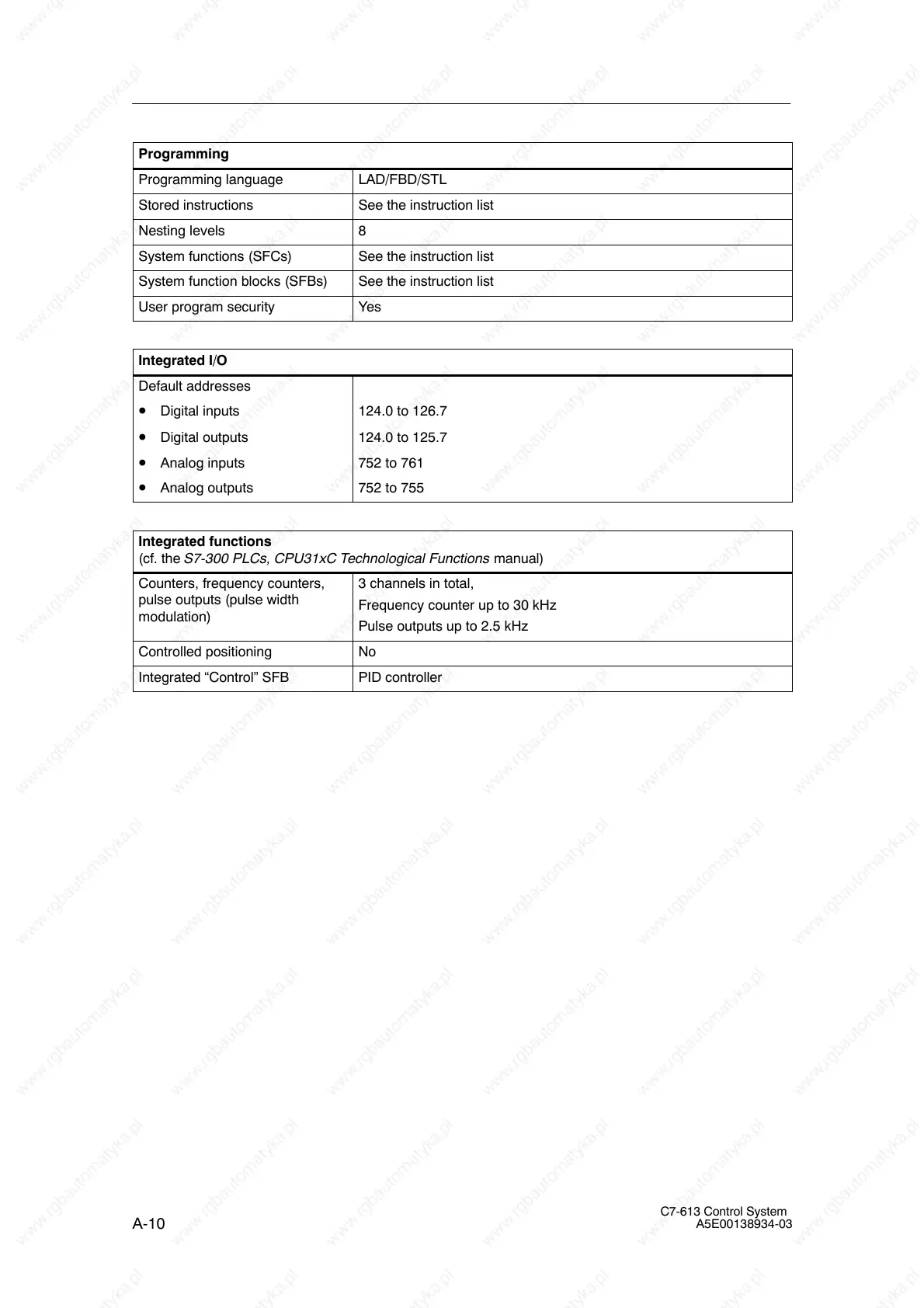

A-10
C7-613 Control System
A5E00138934-03
Programming
Programming language LAD/FBD/STL
Stored instructions See the instruction list
Nesting levels 8
System functions (SFCs) See the instruction list
System function blocks (SFBs) See the instruction list
User program security Yes
Integrated I/O
Default addresses
• Digital inputs 124.0 to 126.7
• Digital outputs 124.0 to 125.7
• Analog inputs 752 to 761
• Analog outputs 752 to 755
Integrated functions
(cf. the S7-300 PLCs, CPU31xC Technological Functions manual)
Counters, frequency counters,
pulse outputs (pulse width
modulation)
3 channels in total,
Frequency counter up to 30 kHz
Pulse outputs up to 2.5 kHz
Controlled positioning No
Integrated “Control” SFB PID controller
