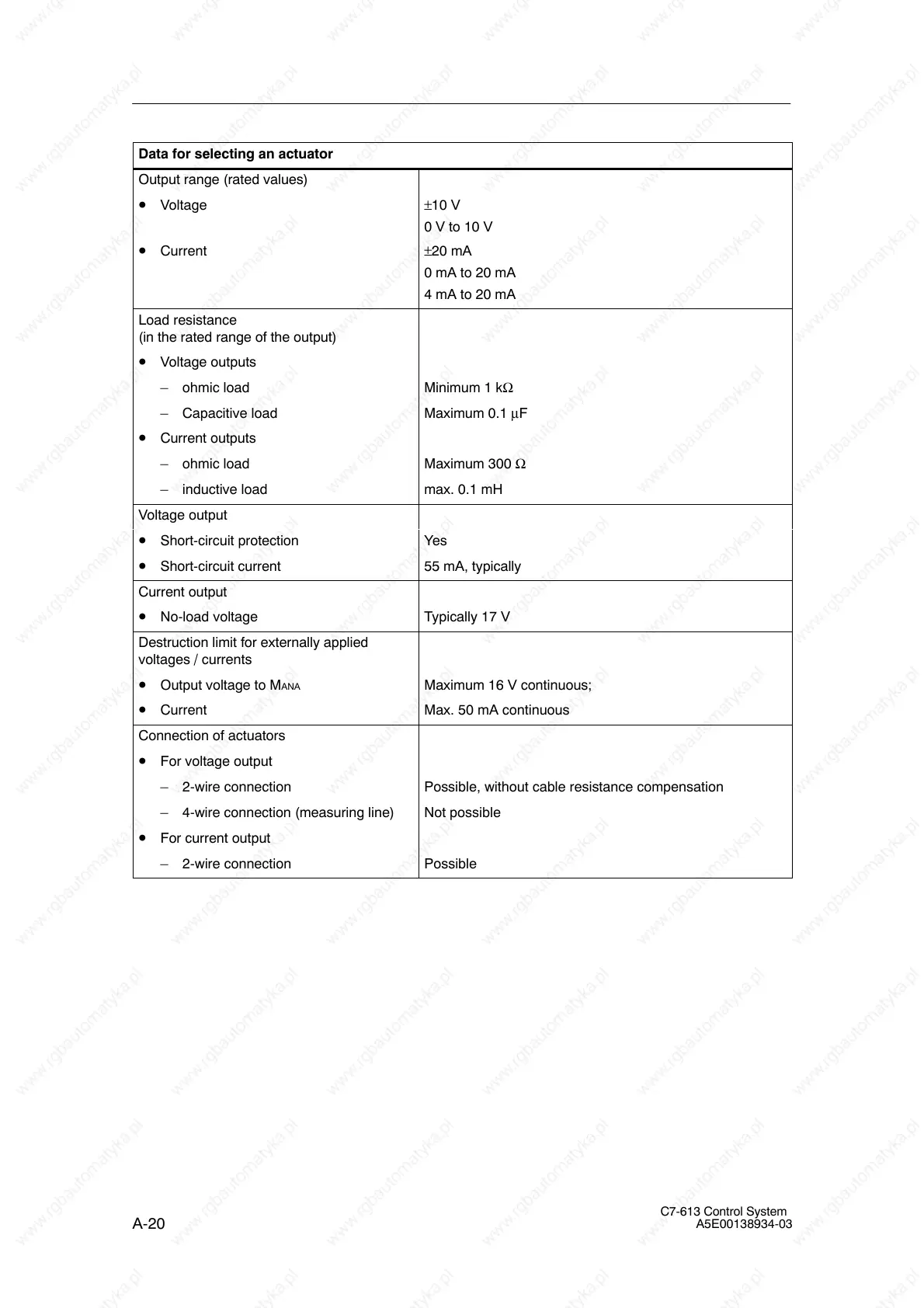

A-20
C7-613 Control System
A5E00138934-03
Data for selecting an actuator
Output range (rated values)
• Voltage ±10 V
0 V to 10 V
• Current ±20 mA
0 mA to 20 mA
4 mA to 20 mA
Load resistance
(in the rated range of the output)
• Voltage outputs
– ohmic load Minimum 1 kΩ
– Capacitive load Maximum 0.1 μF
• Current outputs
– ohmic load Maximum 300 Ω
– inductive load max. 0.1 mH
Voltage output
• Short-circuit protection Yes
• Short-circuit current 55 mA, typically
Current output
• No-load voltage Typically 17 V
Destruction limit for externally applied
voltages / currents
• Output voltage to MANA Maximum 16 V continuous;
• Current Max. 50 mA continuous
Connection of actuators
• For voltage output
– 2-wire connection Possible, without cable resistance compensation
– 4-wire connection (measuring line) Not possible
• For current output
– 2-wire connection Possible
