Product overview
1-2
C7-613 Control System
A5E00138934-03
Components
The C7-613 complete system consists of the following components:
• SIMATIC CPU: S7-313C
• Integrated HMI module (“C7-613 Panel” on Slot 4 in HW Config) with a
keyboard and a four-line display with 20 characters or 10 graphical symbols per
line
Interfaces
• An interface for connecting up to four S7-300 modules via the S7-300 I/O bus
• MPI interface for the communication with a PG/PC and further S7 CPUs, C7
control systems and OPs
• Integrated digital and analog I/O (C7-I/O)
C7-613
MPI
interface
CPU S7-313C
STEP 7
S7-300
I/O bus
expansion
HMI module with
display and keyboard
C7
I/O

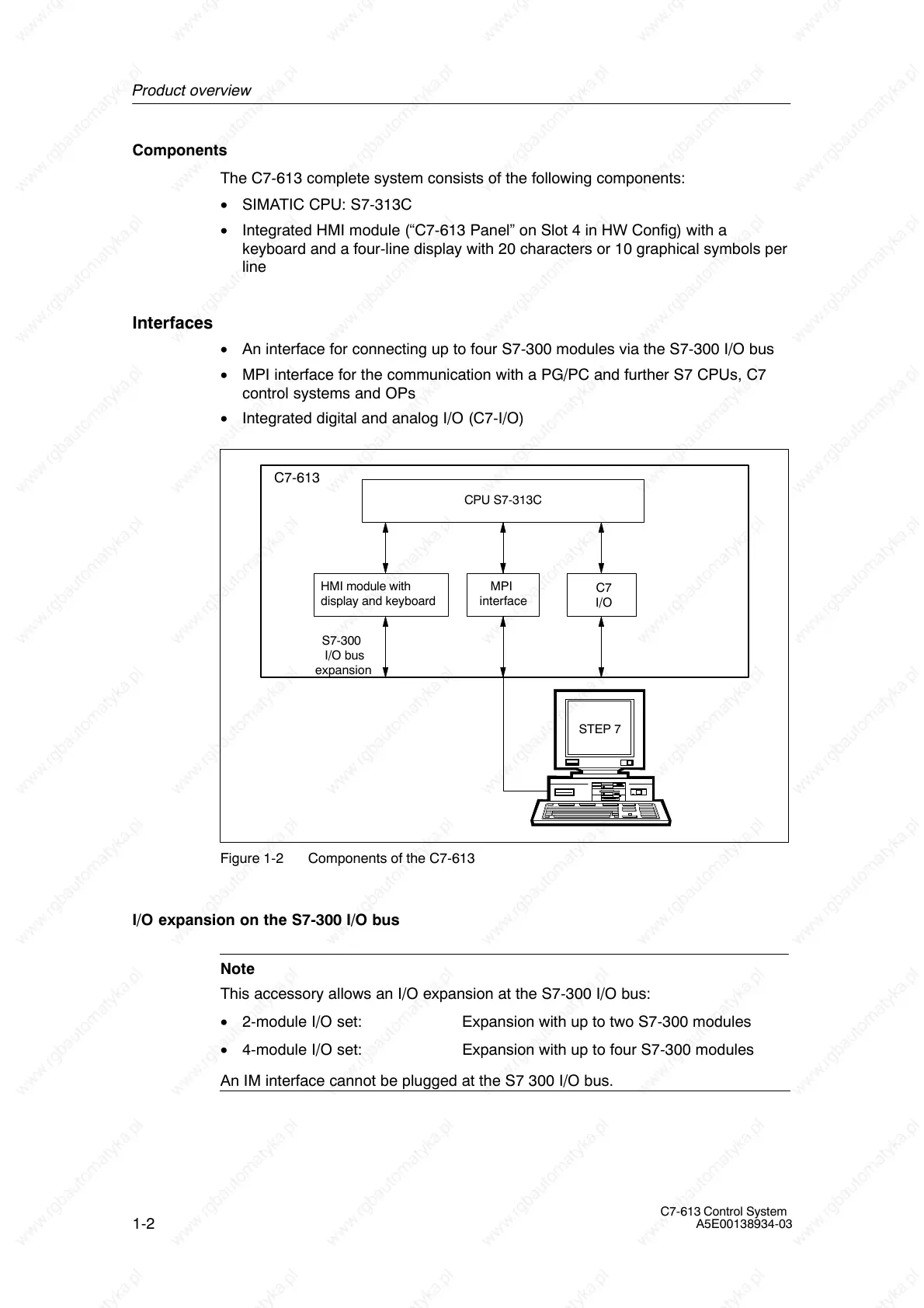

Figure 1-2 Components of the C7-613
I/O expansion on the S7-300 I/O bus
Note
This accessory allows an I/O expansion at the S7-300 I/O bus:
• 2-module I/O set: Expansion with up to two S7-300 modules
• 4-module I/O set: Expansion with up to four S7-300 modules
An IM interface cannot be plugged at the S7 300 I/O bus.
