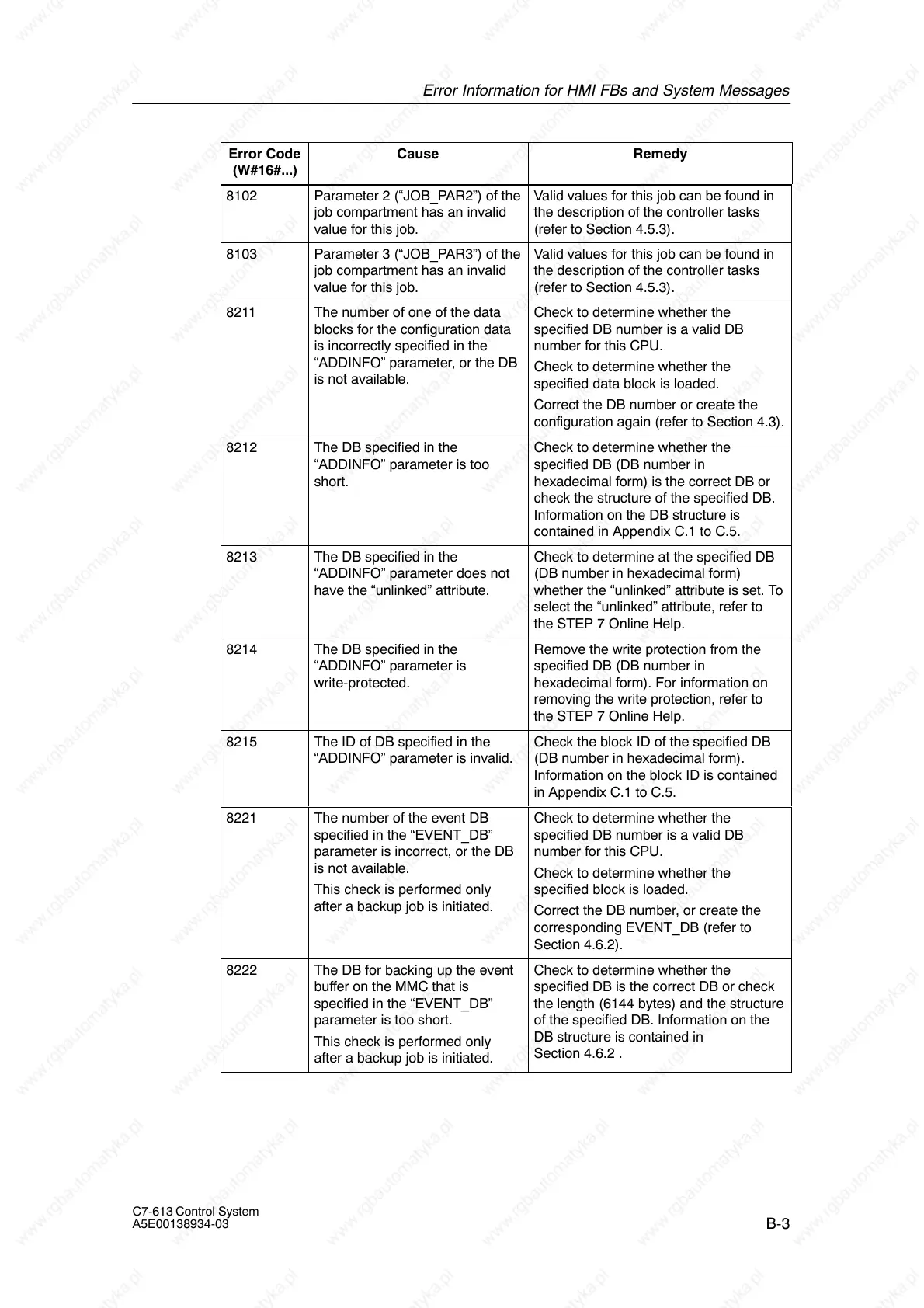

Siemens SIMATIC C7-613 User Manual

Error Information for HMI FBs and System Messages
B-3
C7-613 Control System
A5E00138934-03
Error Code
(W#16#...)
RemedyCause
8102 Parameter 2 (“JOB_PAR2”) of the
job compartment has an invalid
value for this job.
Valid values for this job can be found in
the description of the controller tasks
(refer to Section 4.5.3).
8103 Parameter 3 (“JOB_PAR3”) of the
job compartment has an invalid
value for this job.
Valid values for this job can be found in
the description of the controller tasks
(refer to Section 4.5.3).
8211 The number of one of the data
blocks for the configuration data
is incorrectly specified in the
“ADDINFO” parameter, or the DB
is not available.
Check to determine whether the
specified DB number is a valid DB
number for this CPU.
Check to determine whether the
specified data block is loaded.
Correct the DB number or create the
configuration again (refer to Section 4.3).
8212 The DB specified in the
“ADDINFO” parameter is too
short.
Check to determine whether the
specified DB (DB number in
hexadecimal form) is the correct DB or
check the structure of the specified DB.
Information on the DB structure is
contained in Appendix C.1 to C.5.
8213 The DB specified in the
“ADDINFO” parameter does not
have the “unlinked” attribute.
Check to determine at the specified DB
(DB number in hexadecimal form)
whether the “unlinked” attribute is set. To
select the “unlinked” attribute, refer to
the STEP 7 Online Help.
8214 The DB specified in the
“ADDINFO” parameter is
write-protected.
Remove the write protection from the
specified DB (DB number in
hexadecimal form). For information on
removing the write protection, refer to
the STEP 7 Online Help.
8215 The ID of DB specified in the
“ADDINFO” parameter is invalid.
Check the block ID of the specified DB
(DB number in hexadecimal form).
Information on the block ID is contained
in Appendix C.1 to C.5.
8221 The number of the event DB
specified in the “EVENT_DB”
parameter is incorrect, or the DB
is not available.
This check is performed only
after a backup job is initiated.
Check to determine whether the
specified DB number is a valid DB
number for this CPU.
Check to determine whether the
specified block is loaded.
Correct the DB number, or create the
corresponding EVENT_DB (refer to
Section 4.6.2).
8222 The DB for backing up the event
buffer on the MMC that is
specified in the “EVENT_DB”
parameter is too short.
This check is performed only
after a backup job is initiated.
Check to determine whether the
specified DB is the correct DB or check
the length (6144 bytes) and the structure
of the specified DB. Information on the
DB structure is contained in
Section 4.6.2 .
