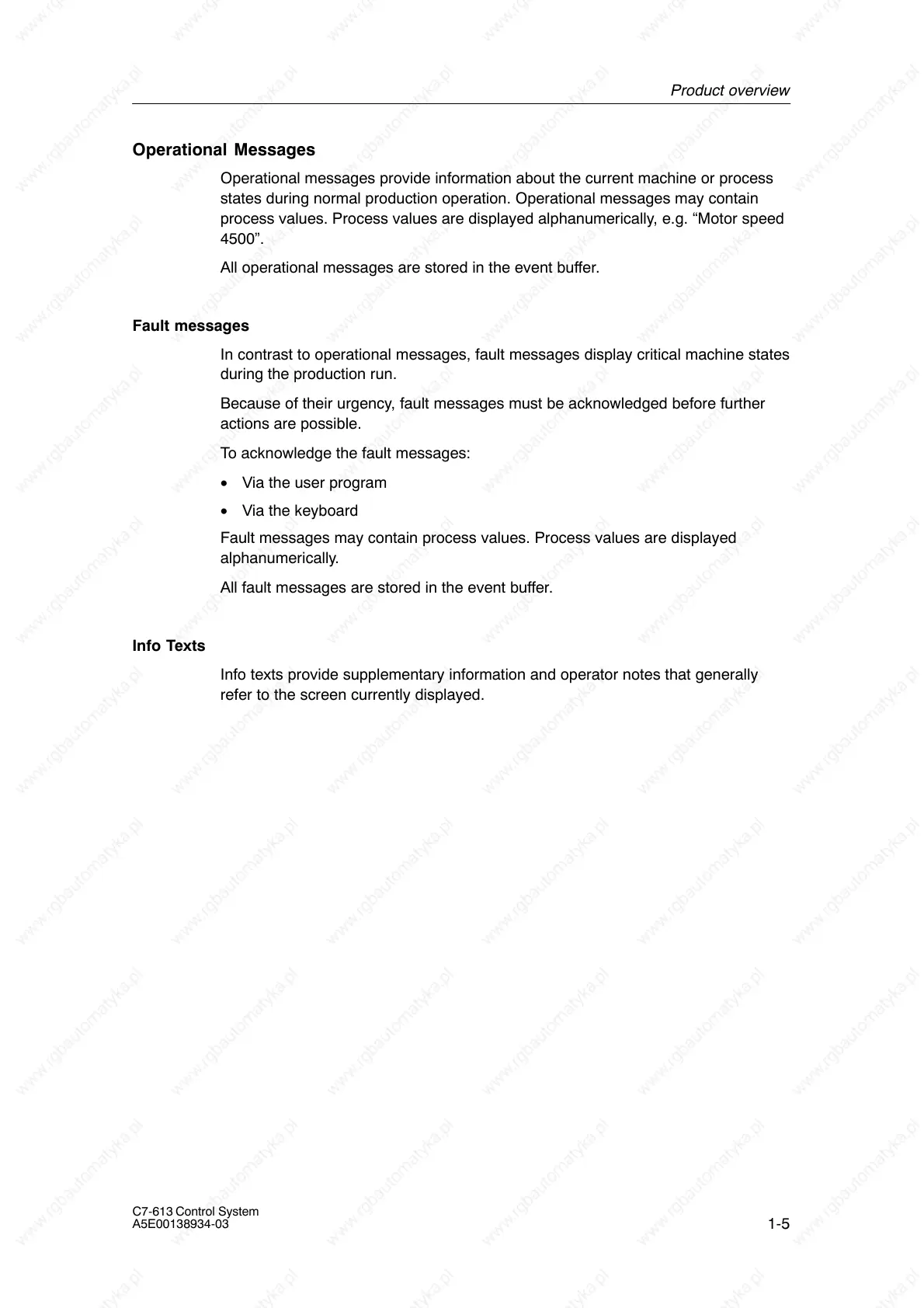

Product overview
1-5
C7-613 Control System
A5E00138934-03
Operational Messages
Operational messages provide information about the current machine or process
states during normal production operation. Operational messages may contain
process values. Process values are displayed alphanumerically, e.g. “Motor speed
4500”.
All operational messages are stored in the event buffer.
Fault messages
In contrast to operational messages, fault messages display critical machine states
during the production run.
Because of their urgency, fault messages must be acknowledged before further
actions are possible.
To acknowledge the fault messages:
• Via the user program
• Via the keyboard
Fault messages may contain process values. Process values are displayed
alphanumerically.
All fault messages are stored in the event buffer.
Info Texts
Info texts provide supplementary information and operator notes that generally
refer to the screen currently displayed.
