Configuration DBs
C-15
C7-613 Control System
A5E00138934-03

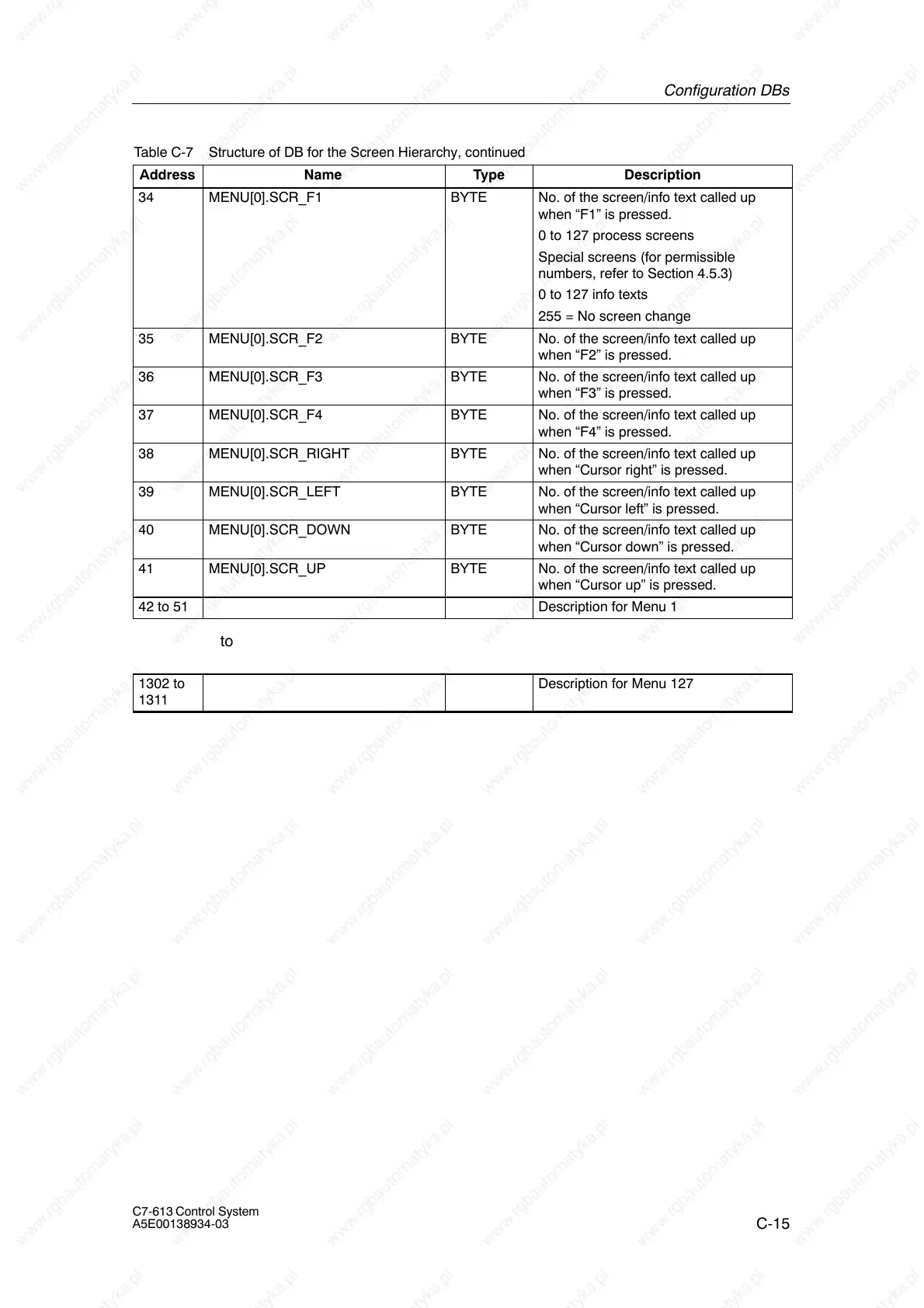

Table C-7 Structure of DB for the Screen Hierarchy, continued
Address DescriptionTypeName
34 MENU[0].SCR_F1 BYTE No. of the screen/info text called up
when “F1” is pressed.
0 to 127 process screens
Special screens (for permissible
numbers, refer to Section 4.5.3)
0 to 127 info texts
255 = No screen change
35 MENU[0].SCR_F2 BYTE No. of the screen/info text called up
when “F2” is pressed.
36 MENU[0].SCR_F3 BYTE No. of the screen/info text called up
when “F3” is pressed.
37 MENU[0].SCR_F4 BYTE No. of the screen/info text called up
when “F4” is pressed.
38 MENU[0].SCR_RIGHT BYTE No. of the screen/info text called up
when “Cursor right” is pressed.
39 MENU[0].SCR_LEFT BYTE No. of the screen/info text called up
when “Cursor left” is pressed.
40 MENU[0].SCR_DOWN BYTE No. of the screen/info text called up
when “Cursor down” is pressed.
41 MENU[0].SCR_UP BYTE No. of the screen/info text called up
when “Cursor up” is pressed.
42 to 51 Description for Menu 1
to
1302 to
1311
Description for Menu 127
