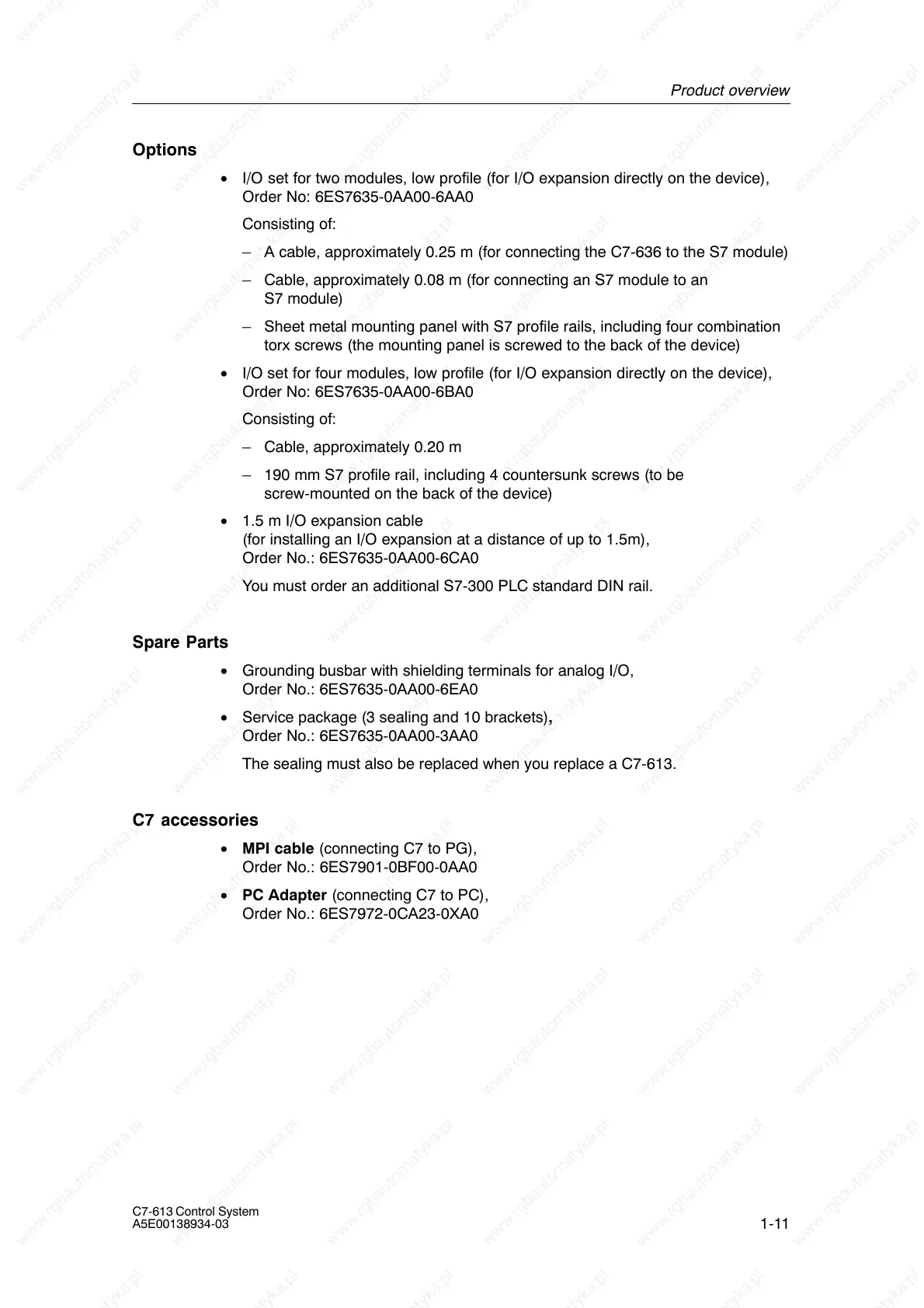

Product overview
1-11
C7-613 Control System
A5E00138934-03
Options
• I/O set for two modules, low profile (for I/O expansion directly on the device),
Order No: 6ES7635-0AA00-6AA0
Consisting of:
– A cable, approximately 0.25 m (for connecting the C7-636 to the S7 module)
– Cable, approximately 0.08 m (for connecting an S7 module to an
S7 module)
– Sheet metal mounting panel with S7 profile rails, including four combination
torx screws (the mounting panel is screwed to the back of the device)
• I/O set for four modules, low profile (for I/O expansion directly on the device),
Order No: 6ES7635-0AA00-6BA0
Consisting of:
– Cable, approximately 0.20 m
– 190 mm S7 profile rail, including 4 countersunk screws (to be
screw-mounted on the back of the device)
• 1.5 m I/O expansion cable
(for installing an I/O expansion at a distance of up to 1.5m),
Order No.: 6ES7635-0AA00-6CA0
You must order an additional S7-300 PLC standard DIN rail.
Spare Parts
• Grounding busbar with shielding terminals for analog I/O,
Order No.: 6ES7635-0AA00-6EA0
• Service package (3 sealing and 10 brackets),
Order No.: 6ES7635-0AA00-3AA0
The sealing must also be replaced when you replace a C7-613.
C7 accessories
• MPI cable (connecting C7 to PG),
Order No.: 6ES7901-0BF00-0AA0
• PC Adapter (connecting C7 to PC),
Order No.: 6ES7972-0CA23-0XA0
