Installing and Wiring the C7-613
2-4
C7-613 Control System
A5E00138934-03
Mounting
supports are
not affixed to
this side
Switching cabinet
door
1
2
3

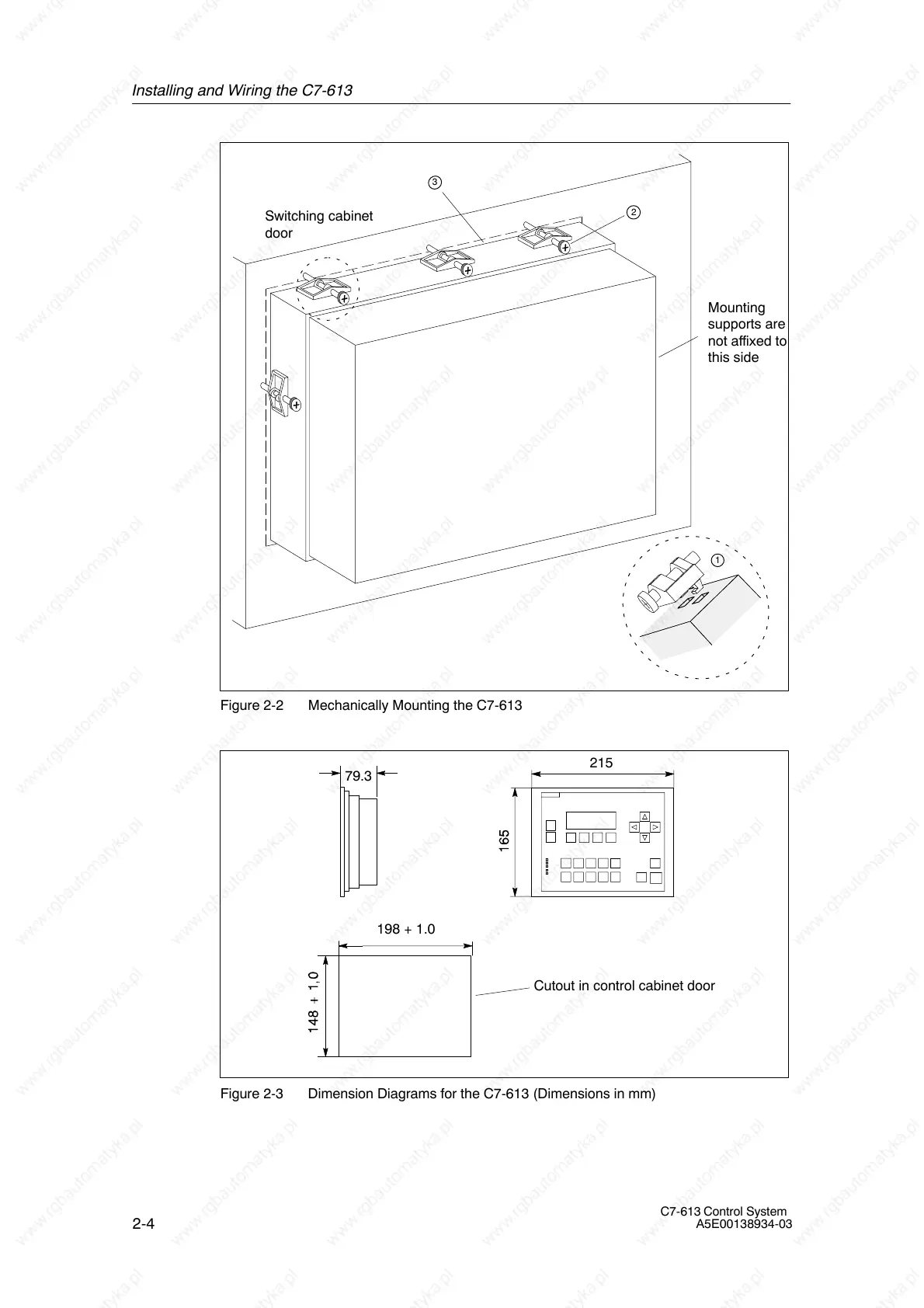

Figure 2-2 Mechanically Mounting the C7-613
215
79.3
198 + 1.0
Cutout in control cabinet door
Figure 2-3 Dimension Diagrams for the C7-613 (Dimensions in mm)
