Special Features of the C7-613
3-7
C7-613 Control System
A5E00138934-03
4-module I/O set
Requirements: The C7-613-specific accessories “4-module I/O set” is available.
Use the following procedure to connect the additional S7-300 modules:
Step Action
1 Screw the S7 DIN rail (190 mm) to the backplane of the C7-613.
2 Install the C7-613 in the cabinet door. Follow the instructions in chapter 2.2
3 Connect the C7-613 to the outermost module on the left-hand side using the
connecting cable.
4 Mount the modules on the S7 DIN rail (190 mm).
C7-613
S7 DIN rail
S7-300 modules

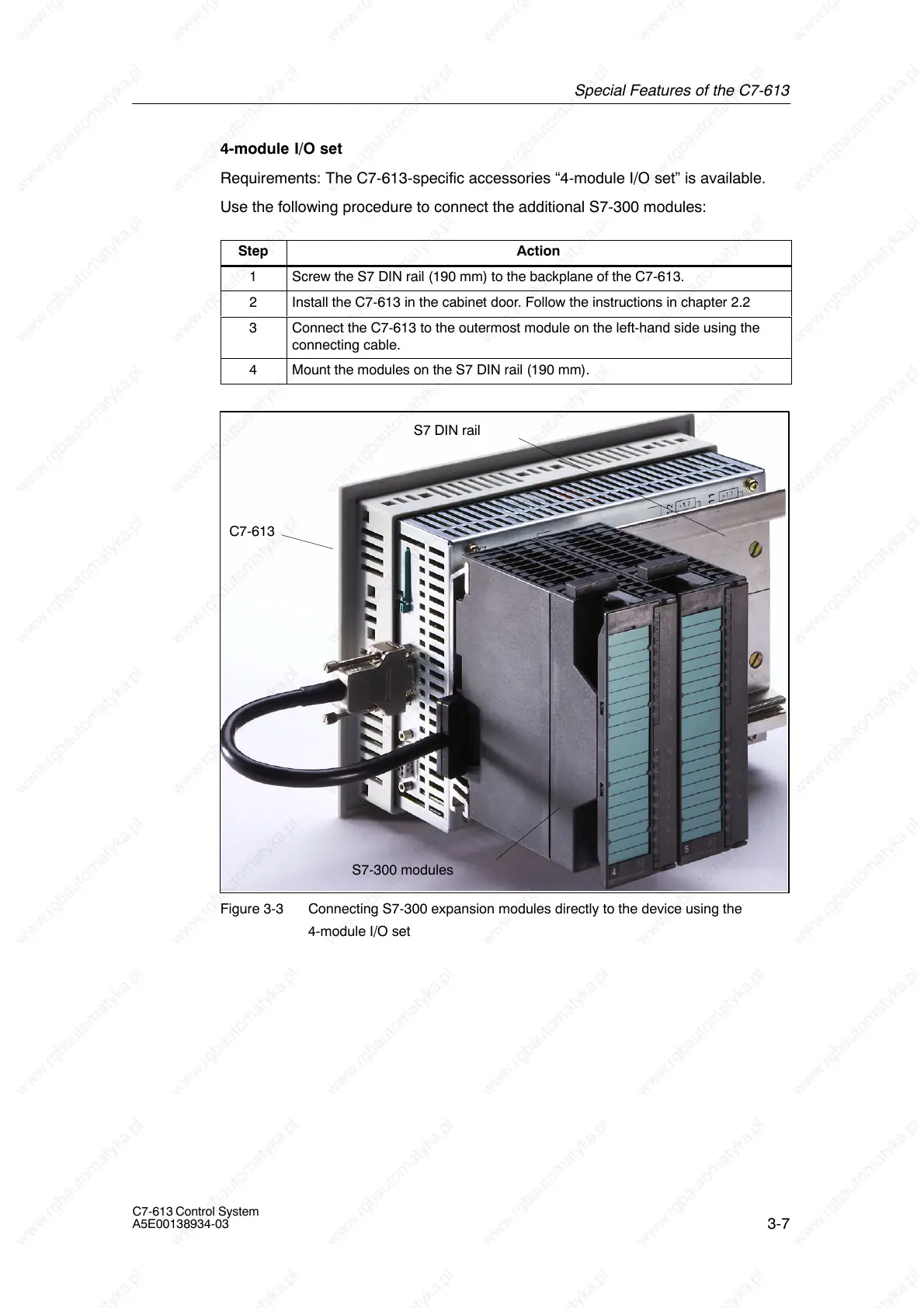

Figure 3-3 Connecting S7-300 expansion modules directly to the device using the
4-module I/O set
