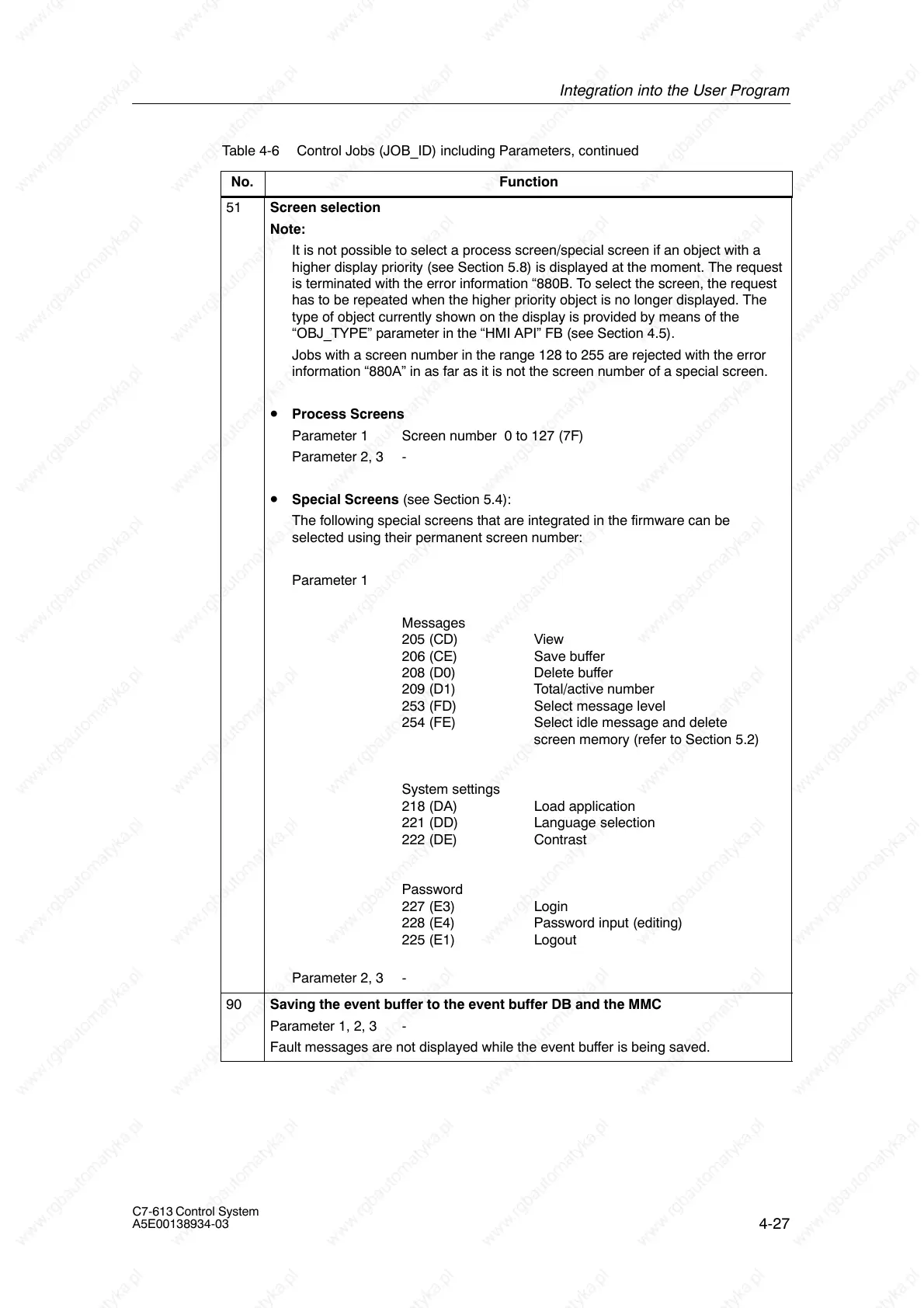

Table 4-6 Control Jobs (JOB_ID) including Parameters, continued
No. Function
51 Screen selection
Note:
It is not possible to select a process screen/special screen if an object with a
higher display priority (see Section 5.8) is displayed at the moment. The request
is terminated with the error information “880B. To select the screen, the request
has to be repeated when the higher priority object is no longer displayed. The
type of object currently shown on the display is provided by means of the
“OBJ_TYPE” parameter in the “HMI API” FB (see Section 4.5).
Jobs with a screen number in the range 128 to 255 are rejected with the error
information “880A” in as far as it is not the screen number of a special screen.
• Process Screens
Parameter 1 Screen number 0 to 127 (7F)
Parameter 2, 3 -
• Special Screens (see Section 5.4):
The following special screens that are integrated in the firmware can be
selected using their permanent screen number:
Parameter 1
Messages
205 (CD) View
206 (CE) Save buffer
208 (D0) Delete buffer
209 (D1) Total/active number
253 (FD) Select message level
254 (FE) Select idle message and delete
screen memory (refer to Section 5.2)
System settings
218 (DA) Load application
221 (DD) Language selection
222 (DE) Contrast
Password
227 (E3) Login
228 (E4) Password input (editing)
225 (E1) Logout
Parameter 2, 3 -
90 Saving the event buffer to the event buffer DB and the MMC
Parameter 1, 2, 3 -
Fault messages are not displayed while the event buffer is being saved.
