5.2 Mounting the enclosure
The enclosure is intended for wall mounting and should be secured with the wall supports

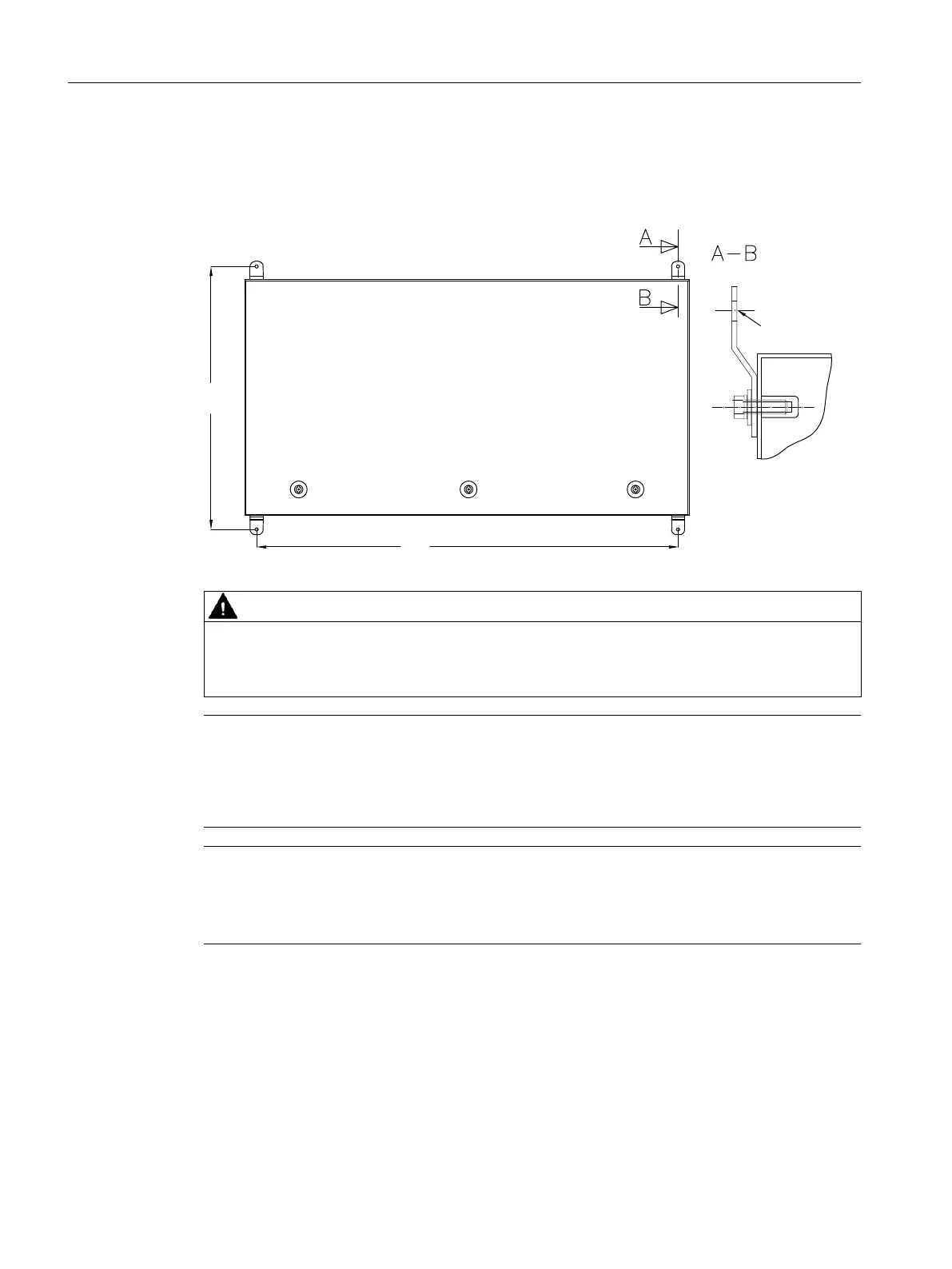

supplied with it. Use the following template for the drilling.
CAUTION
Danger of injury when the enclosure is opened
When opening the enclosure with pivoting cover, the cover is pressed upwards by means of the
pressure of the dampers. When opening, press against the cover with your hand.
Note
• Remember the maximum thermal load on the cables and wiring. The degree of protection is
only ensured when suitable cables and wires are used and correctly installed.
• Note that it is only permitted to connect and disconnect the cables to the power supply
module if the module has been powered down.
Note
The I/O device may be mounted horizontally. Other mounting positions are not permitted
(no ceiling or oor mounting, no vertical mounting).
Mounting
5.2Mounting the enclosure
Distributed I/O device 6DL2804-1xxxx & 6DL2804-2xxxx
22 Hardware Installation Manual, 11/2023, A5E42025214-AC
