Siemens SIMATIC ET 200SP TM ECC 2xPWM ST - Configuring and Address Space; Module Configuration

Wiring
3.2 Connection examples
Technology module TM ECC 2xPWM ST (6FE1242-6TM10-0BB1)
Manual, 04/2018, A5E42681298B-AA
29

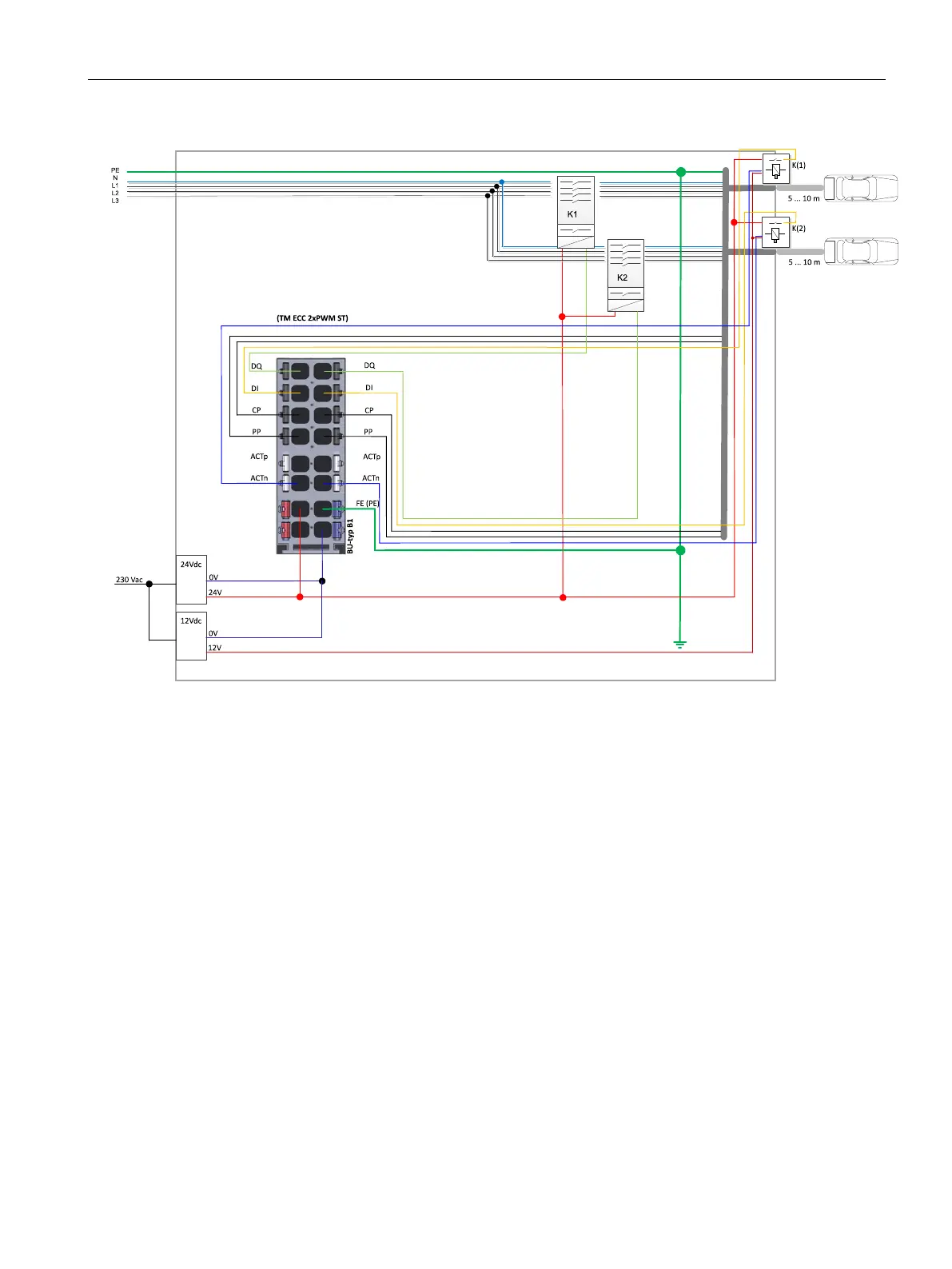

Figure 3-8 Connecting the technology module with electromagnetic connector locking (in the example via ACTn) and its
feedback.
