Siemens SIMATIC ET 200SP TM ECC 2xPWM ST User Manual

Technology module TM ECC 2xPWM ST (6FE1242-6TM10-0BB1)
Manual, 04/2018, A5E42681298B-AA
11
Product overview
2
2.1
Properties
Article number
SIMATIC ET 200SP TM ECC 2xPWM ST 6FE1242-6TM10-0BB1
Validity
This manual is valid as of firmware version V1.0.2 and function block ECC4100 V1.1.
View of the module
①
Module type and name
⑦
Function class
②
LED for diagnostics
⑧
Color labeling module type
③
2D matrix code
⑨
Functional version of the device
④
Wiring diagram
⑩
Color code for selecting the color
identification labels
⑤
LEDs for channel status
⑪
BU type
⑥
LED for supply voltage
⑫
Article number

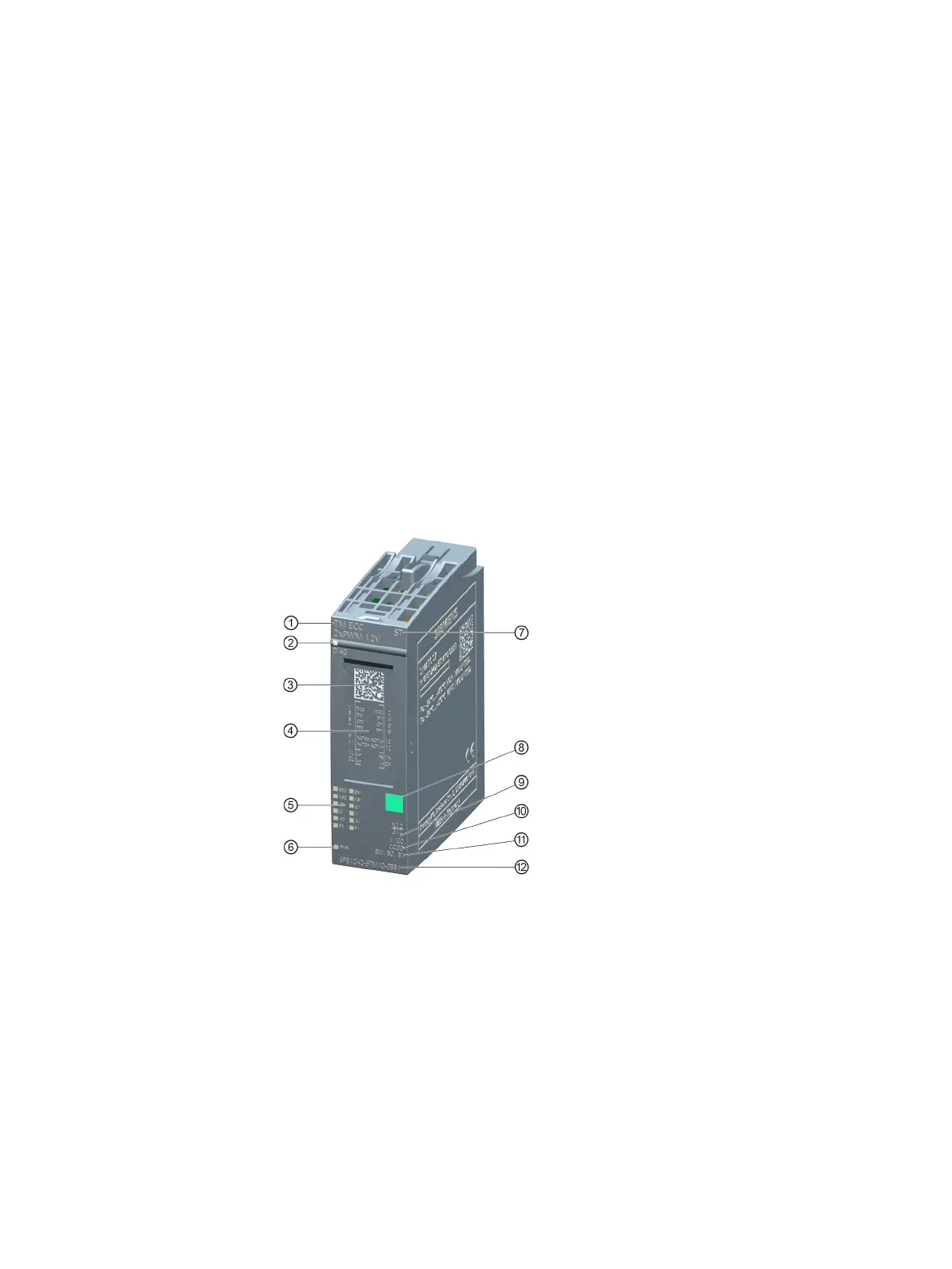

Figure 2-1 View of the SIMATIC ET 200SP TM ECC 2xPWM ST module

Siemens SIMATIC ET 200SP TM ECC 2xPWM ST Specifications

General

Brand	Siemens
Model	SIMATIC ET 200SP TM ECC 2xPWM ST
Category	Control Unit
Language	English
