Siemens SIMATIC ET 200SP TM ECC 2xPWM ST User Manual

Wiring
3.2 Connection examples
Technology module TM ECC 2xPWM ST (6FE1242-6TM10-0BB1)
Manual, 04/2018, A5E42681298B-AA
25
3.2
Connection examples
Block diagrams
The circuit diagrams below show the schematic wiring of the technology module with the
typical options for use of the feedback input.

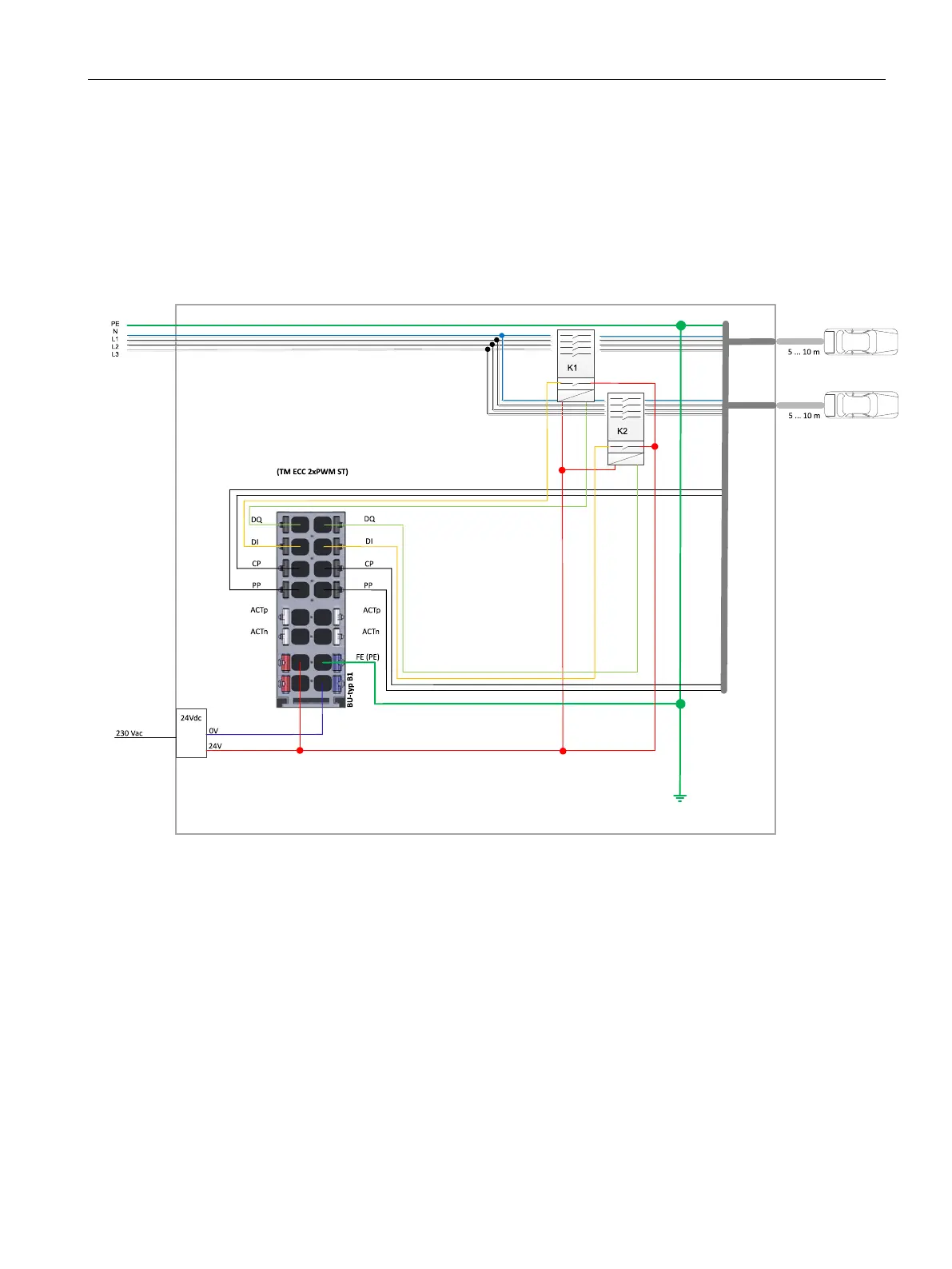

Figure 3-3 Connecting the technology module with feedback from contactor status (when using a BU type B1)
