Wiring
3.2 Connection examples
Technology module TM ECC 2xPWM ST (6FE1242-6TM10-0BB1)
26 Manual, 04/2018, A5E42681298B-AA

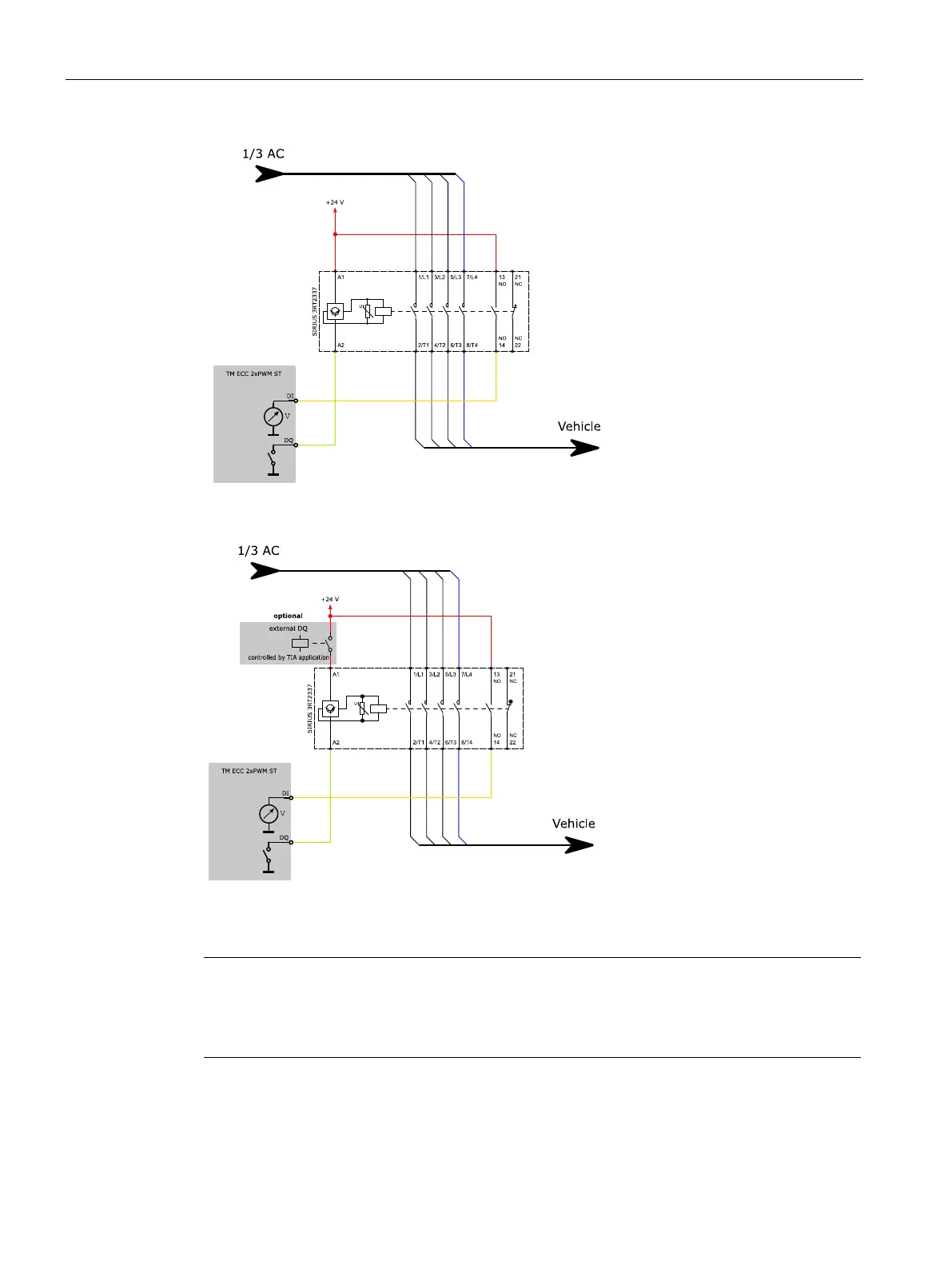

Figure 3-4 Detail view contactor circuit
Figure 3-5 Detail view of protective wiring with optional DQ in the supply line
Note
We recommend supplying the output contactor via an additional standard DQ
To ensure the best possible protection during shutdown of the charging system, we
recommend supplying the output contactor via a standard DQ (see above).
