Wiring
3.2 Connection examples
Technology module TM ECC 2xPWM ST (6FE1242-6TM10-0BB1)
Manual, 04/2018, A5E42681298B-AA
27

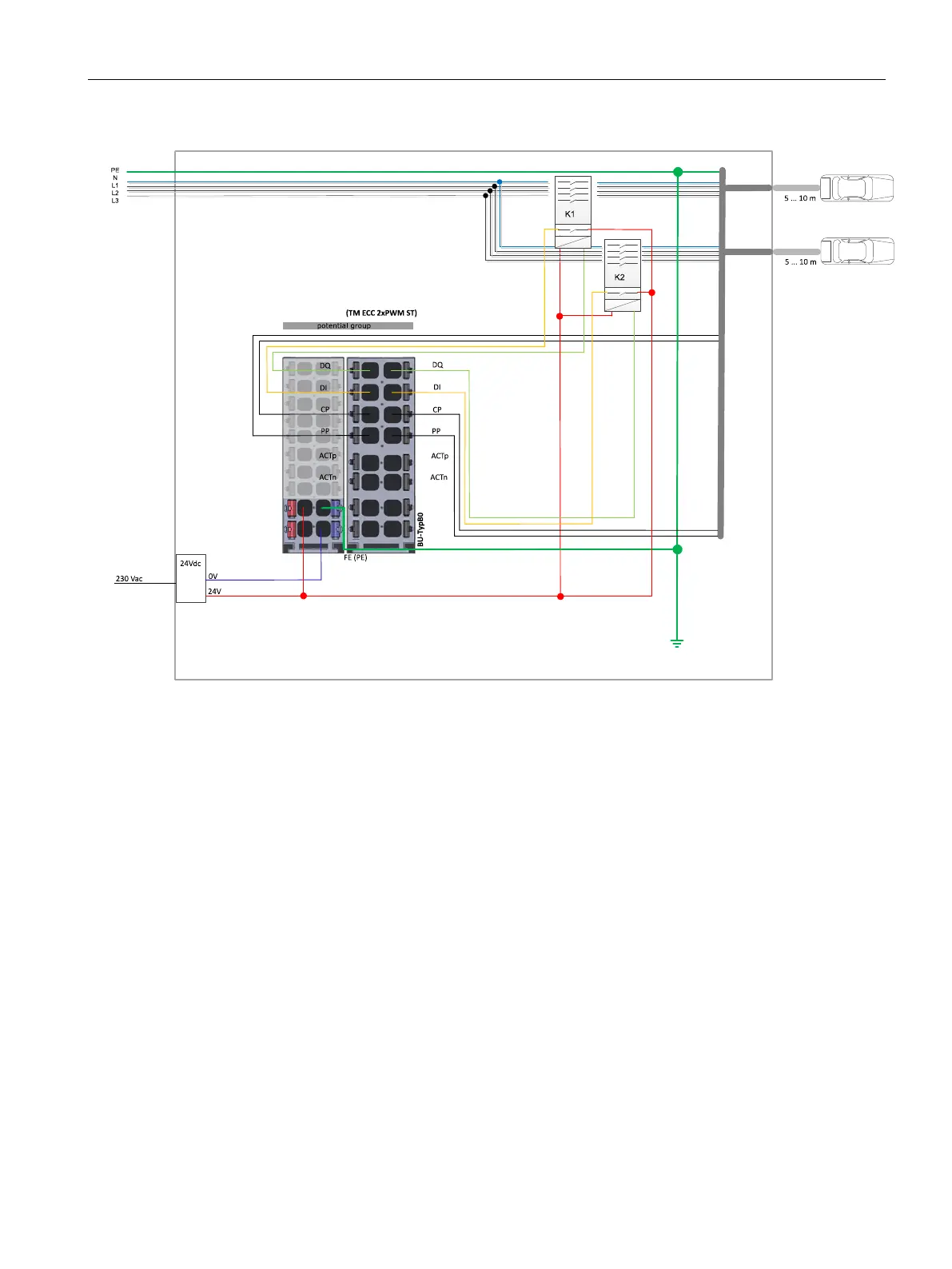

Figure 3-6 Connecting the technology module with feedback from contactor status (when using a BU type B0)
