Siemens SIMATIC ET 200SP TM ECC 2xPWM ST User Manual

Technology module TM ECC 2xPWM ST (6FE1242-6TM10-0BB1)
Manual, 04/2018, A5E42681298B-AA
41
Programming
5
5.1
General information
You can use the function "ECC4100" to integrate the SIMATIC ET 200SP TM ECC
2xPWM ST technology module in the TIA environment. This description is based on the
function "ECC4100, Version V1.1".
You can download this function from the SIEMENS Customer Support
(https://support.industry.siemens.com/cs/de/en/ps/6FE1242-6TM10-0BB1). It is available in
form of the TIA library "ET200SP TM ECC". There you can find it in the folder Types\PWM.
5.2
"ECC4100" functions
Introduction
Below you can see the inputs and outputs of the ECC4100 function.

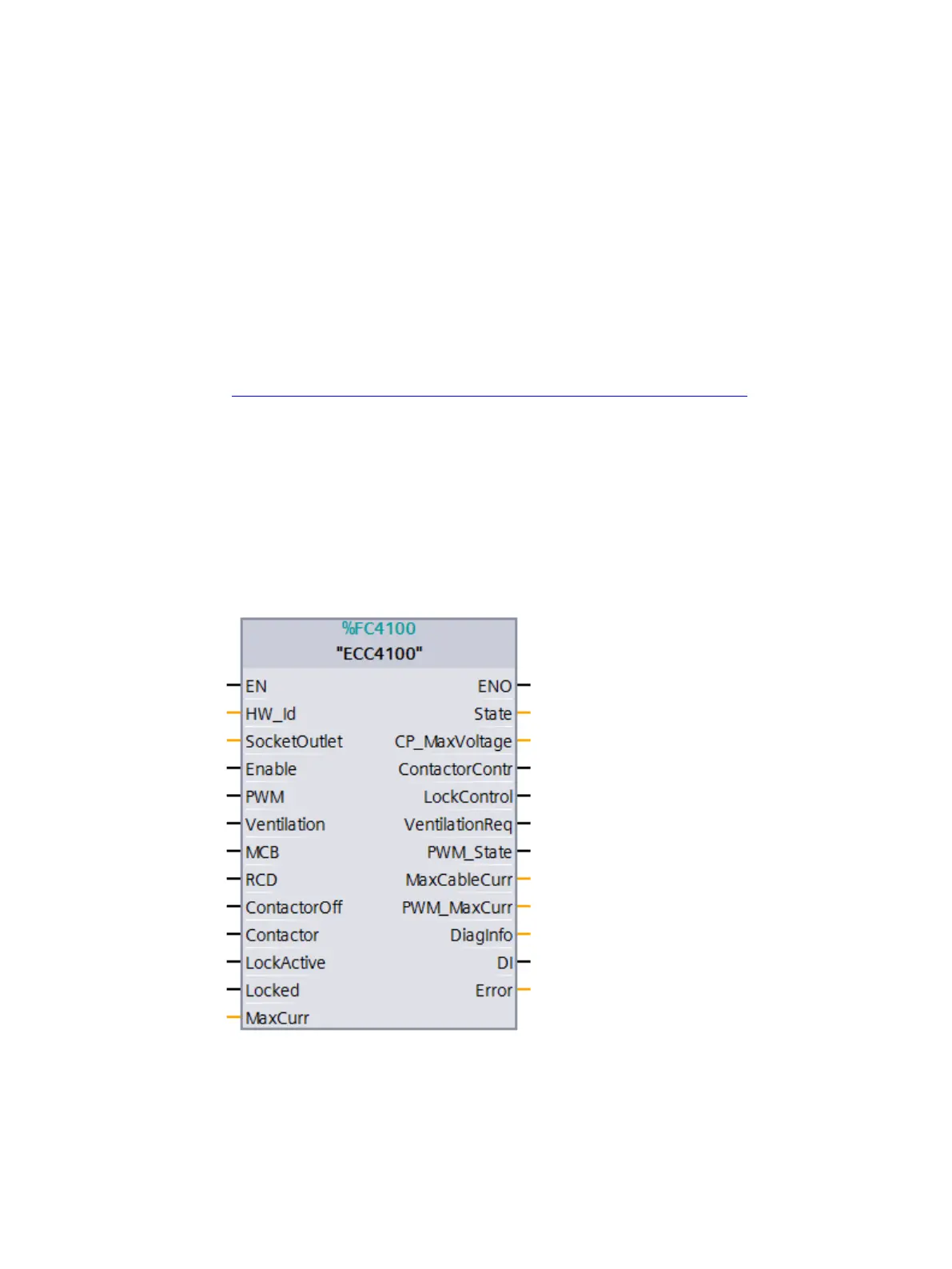

Figure 5-1 Function "ECC4100 (V1.1)"
