17-3
OP27, OP37 Equipment Manual
Release 05/99
17.2 Operating and Display Elements
System keys
/
AB
7
CD
8
EF
9
GH
*
IJ
4
KL
5
MN
6
OP
–
QR
1
ST
2
UV
3
WX
+
YZ
.
:\
0
=,
+/–
()
TAB
DEL
INS
ESC
A–Z
A–Z
ENTER
HELP
F1
F3
F5
F7
F9
F11
ALT
CTRL
Shift
K1 K2 K3 K4 K5 K6 K7 K8
K9 K10 K11 K12 K13 K14 K15 K16
TEMP
DISK
HD BUSY
POWER
SIMA TIC OP37
Keyboard connector
Floppy disk drive
Front flap
Function keys
Function keys
LED displays
F2
F4
F6
F8
F10
F12
F13 F14 F15 F16 F17 F18 F19 F20
A–Z
ACK
Display

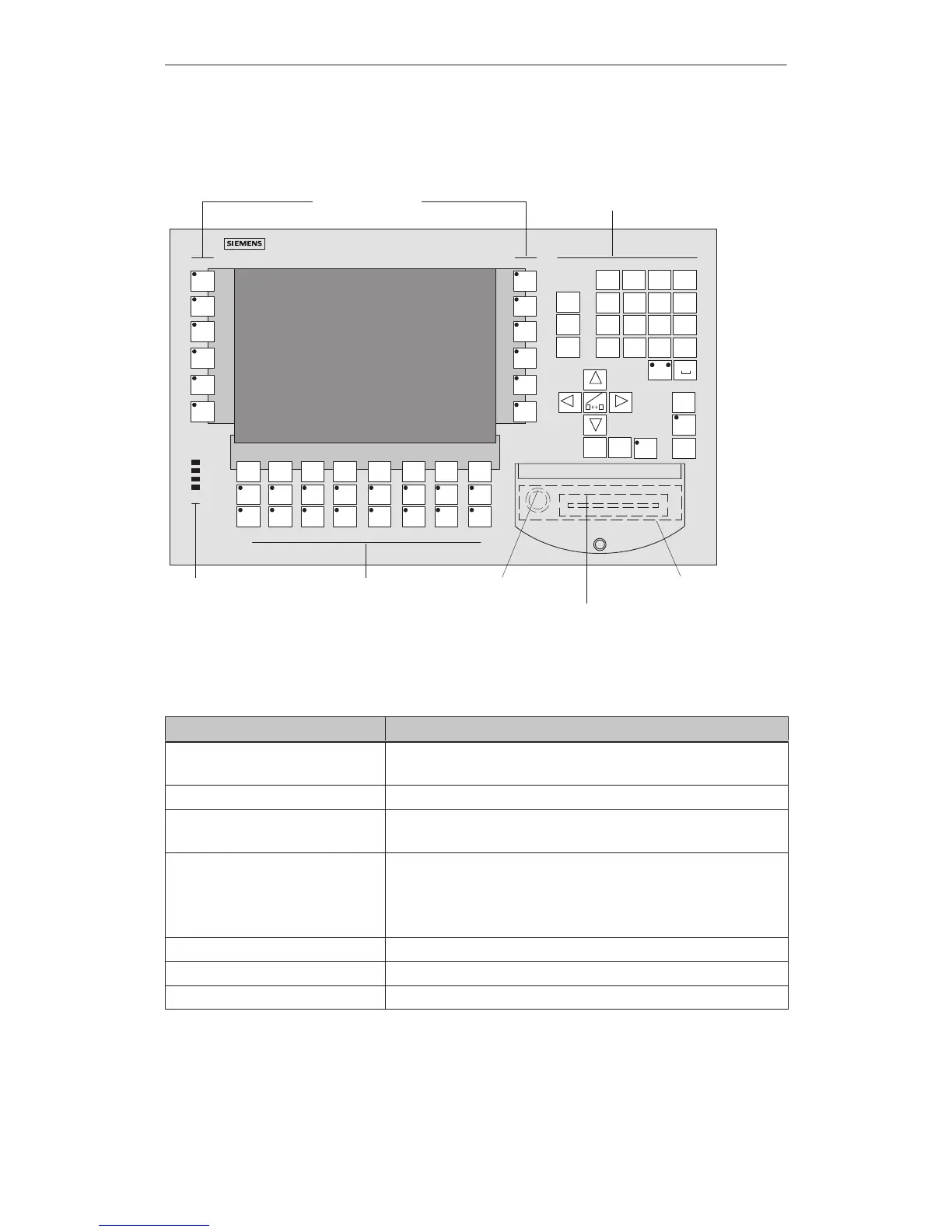

Figure 17-1 Operating and Display Element Arrangement
Name Description
Display LC display (color TFT/C–STN) with back–lighting
The definition is 640x480 pixels.
System keys 32 system keys with permanent functions
Function keys 36 configurable function keys (28 having an LED)
User-specific labeling by means of labeling strips
LED displays TEMP Internal temperature above permissible limit values
DISK Write/read access to PCMIA module
HD BUSY Write/read access to hard disk
POWER OP The OP is operating.
Floppy disk drive (Option) 3” drive for HD floppy disks (1.44 MB)
Keyboard connection MF2 keyboard for BIOS Setup and DOS mode
Front flap When closed, IP65 degree of protection
OP37 Unit Description
