Planning use
3.2 Mounting the OP 73micro
OP 73micro, TP 177micro (WinCC flexible)
32 Operating Instructions, 09/2007, 6AV6691-1DF01-0AB0
Maintaining clearances
The HMI device must be installed with sufficient clearance:
5050
1515

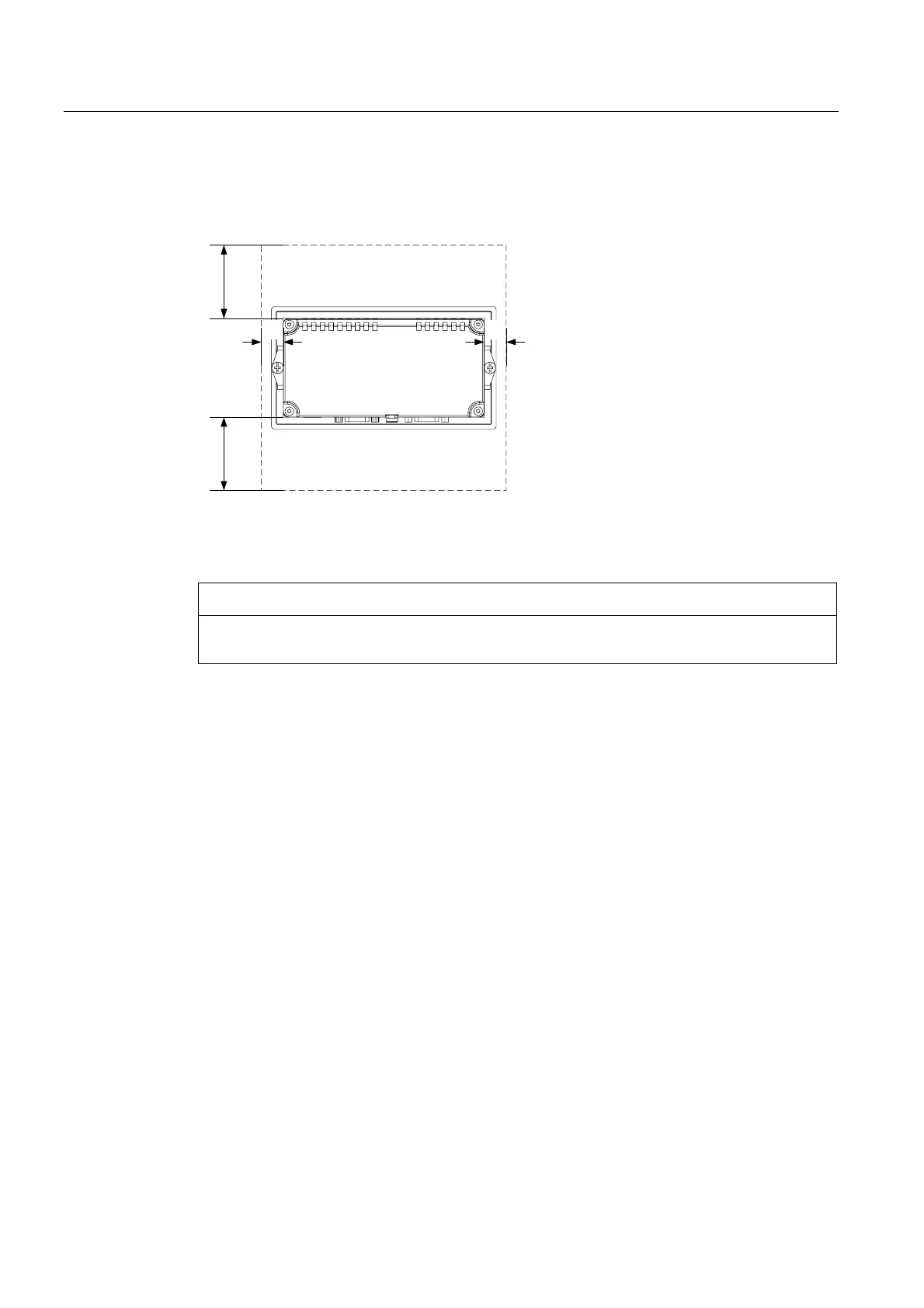

Figure 3-4 Clearance around the OP 73micro
At least 10 mm clearance is required at the rear.
NOTICE
Ensure that the maximum ambient temperature is not exceeded when mounting the device
in a cabinet and especially in a closed enclosure.
