6.2.2.3 Displaying information about the HMI device
Requirements
You have touched the "OP" icon on the Control Panel.
Procedure
Proceed as follows:
1. Open the "OP Properties" dialog and select the "Device" tab.
1
2
3
4
5

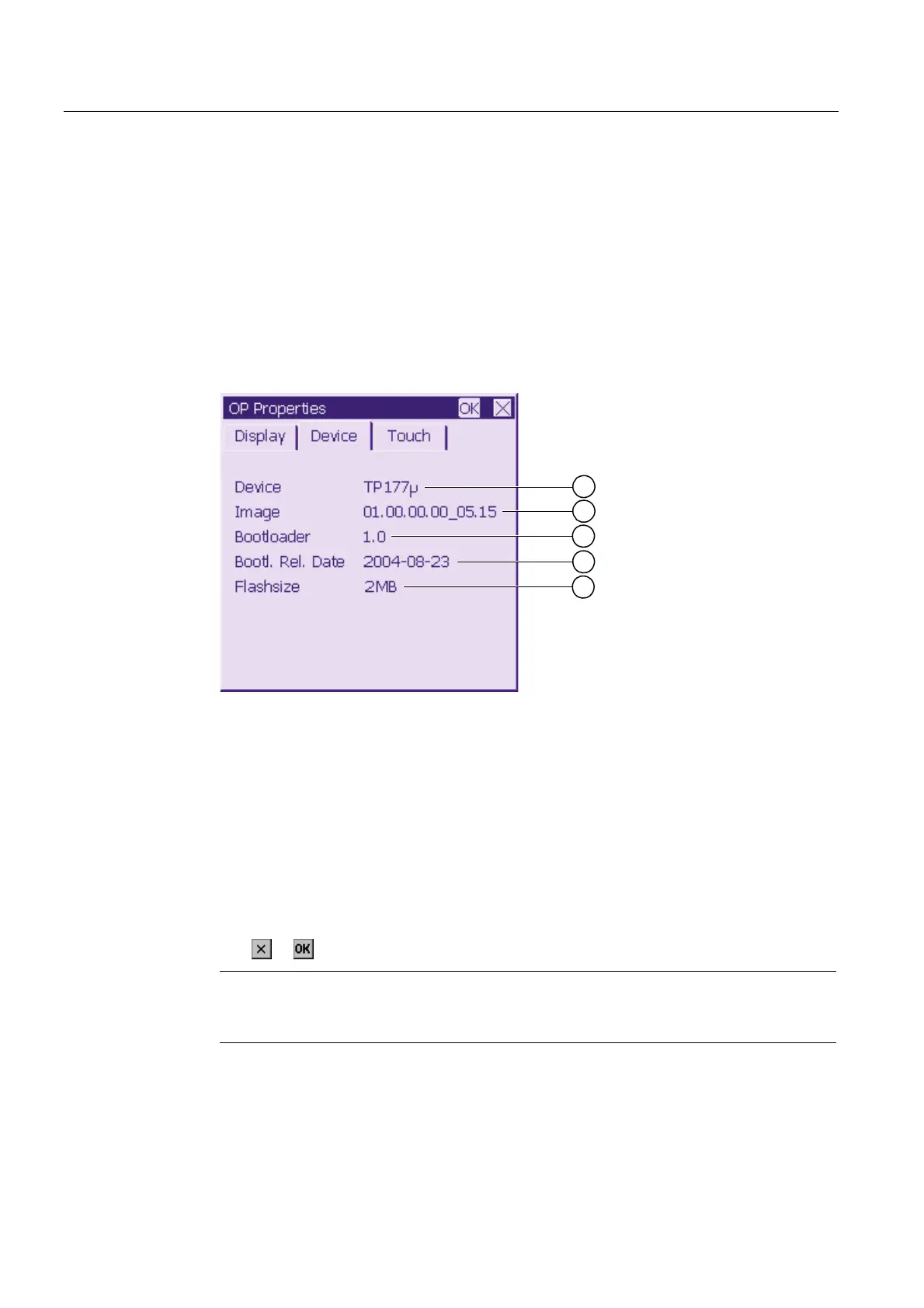

Figure 6-17 "OP Properties" dialog, "Device" tab – example
① HMI device name
② Version of the HMI device image
③ Version of the boot loader
④ Boot loader release date
⑤ The Flash memory is used to store the HMI device image and project data.
2. The "Device" tab is used to display specific HMI device information. There are no input
options.
This information is required when you contact A&D Technical Support.
3. Use
or to close the dialog when the information is no longer required.
Note
The size of the internal Flash memory does not correspond to the available working
memory for a project.
