Operator control components and LEDs
5.2 Front side operator control components and LEDs on the TP 177micro
OP 73micro, TP 177micro (WinCC flexible)
70 Operating Instructions, 09/2007, 6AV6691-1DF01-0AB0
See also
Design of the OP 73micro HMI device (Page 12)
5.2 Front side operator control components and LEDs on the TP 177micro
1

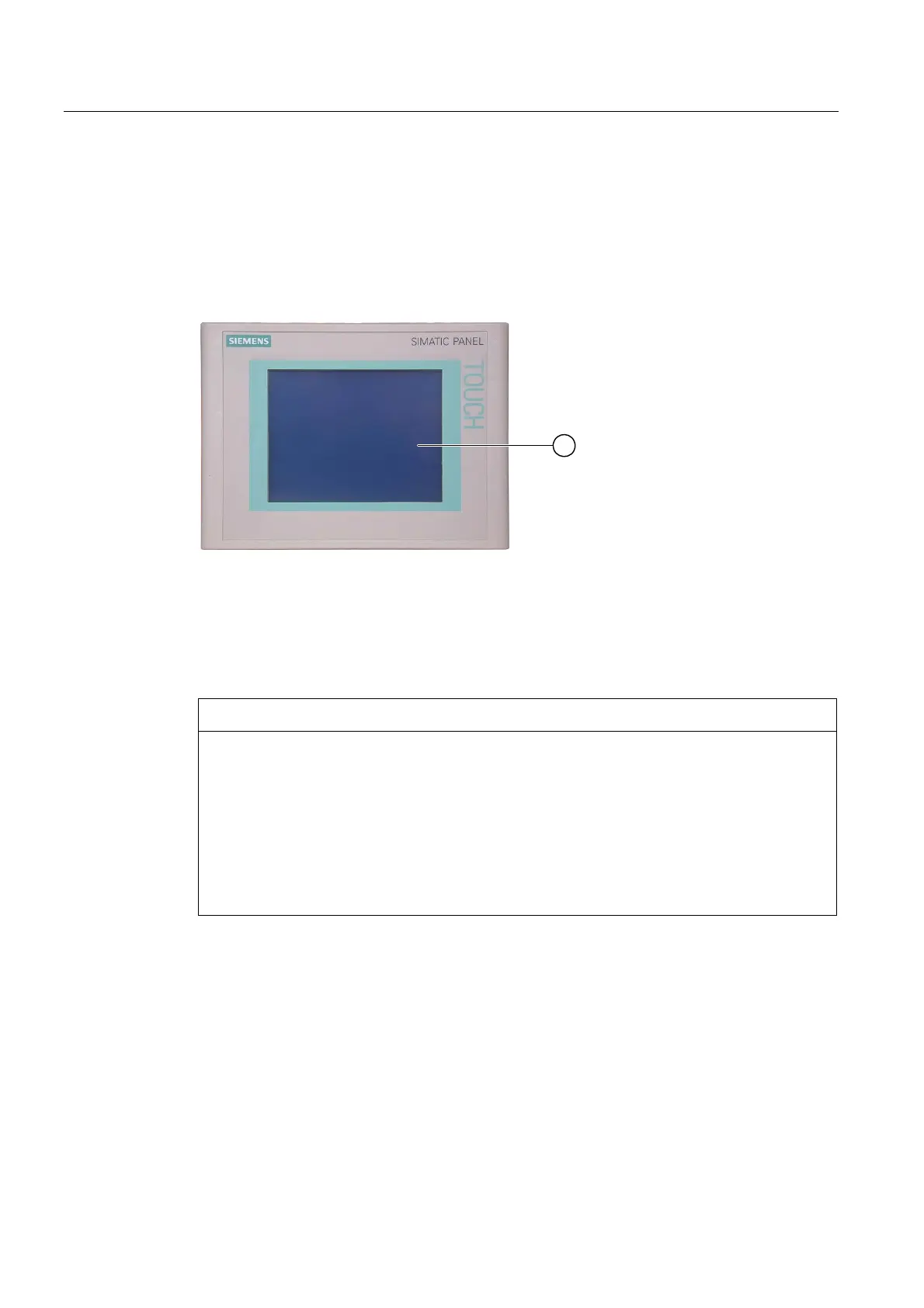

Figure 5-2 Operator control components
① Display with touch screen
Standard input unit at the HMI device is the touch screen. All operator control objects
required for operator input are displayed on the touch screen once the HMI device has
started.
NOTICE
Unintentional actions
Never touch more than one point on the display. Never touch more than one touch object at
a time, otherwise you may trigger unintentional actions.
Damaging the touch screen
The use of with hard, sharp or pointed items or applying excessive pressure when
operating the touch screen will substantially reduce its useful life and even lead to total
failure.
Always operate the HMI device touch screen with your fingers or with a touch pen.
See also
Design of the TP 177micro HMI device (Page 13)
