Planning use
3.3 Mounting the TP 177micro
OP 73micro, TP 177micro (WinCC flexible)
36 Operating Instructions, 09/2007, 6AV6691-1DF01-0AB0
Maintaining clearances
The following clearance is required around the HMI device in order to its ensure self-
ventilation:





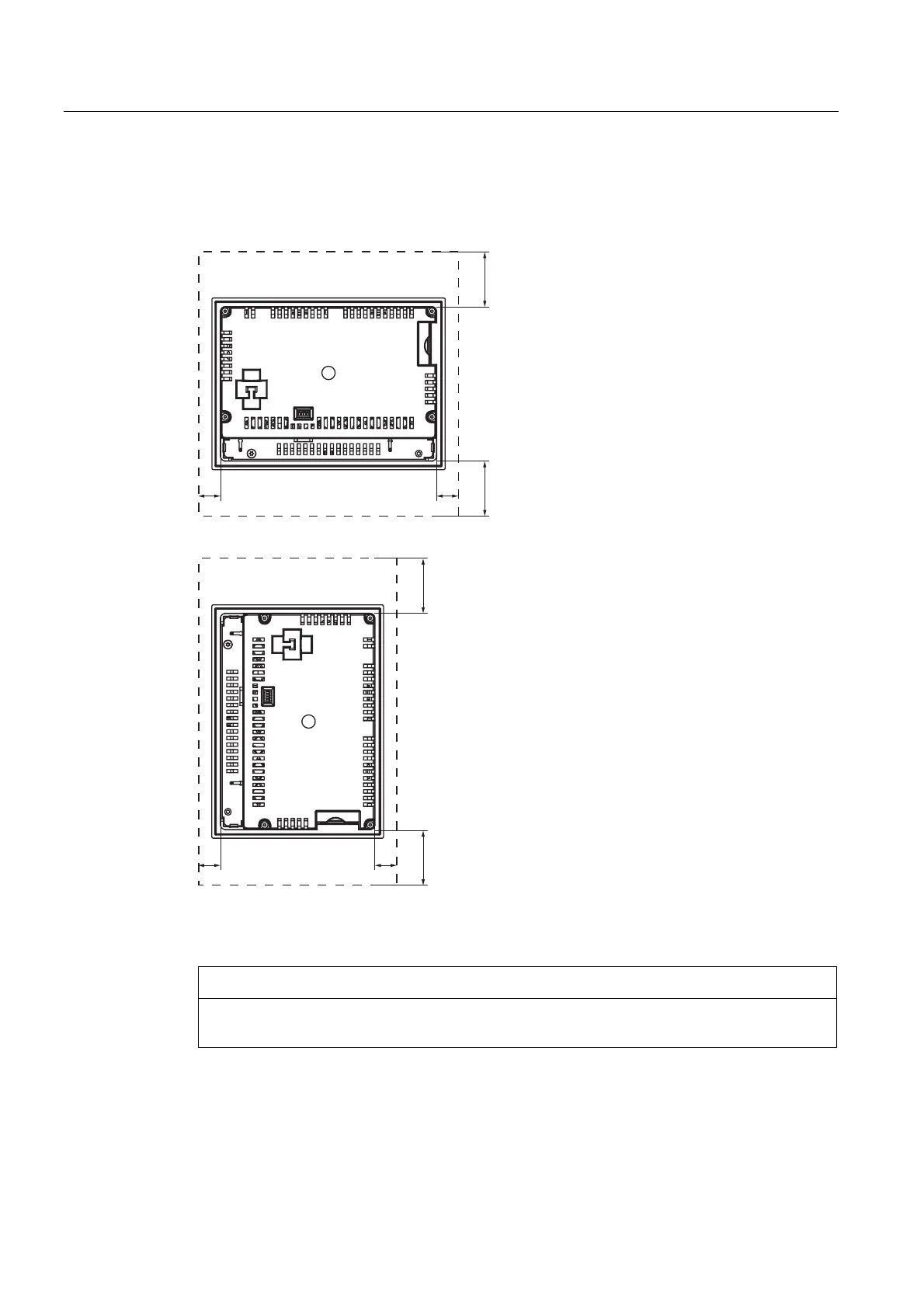

Figure 3-8 Clearance around the HMI device
At least 10 mm clearance is required at the rear.
NOTICE
Ensure that the maximum ambient temperature is not exceeded when mounting the device
in a cabinet and especially in a closed enclosure.
