Description
3
3.1 TP900 operator panel
The converter is operated and diagnosed using the operator panel.

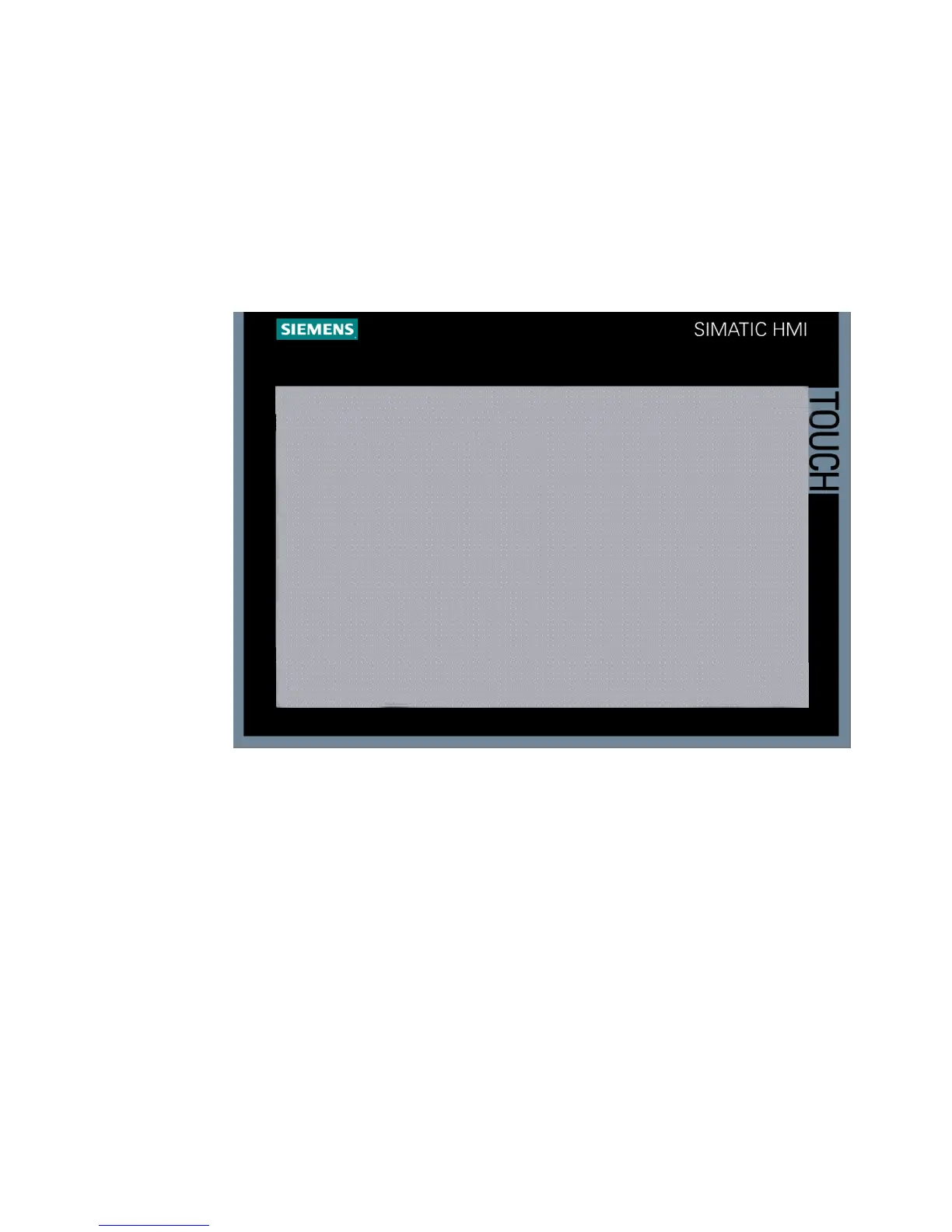

Figure 3-1 Operator panel
The operator panel communicates with the drive via Ethernet.
The operator panel has the following functions:
● Touch-screen operation
● Screen saver
● Language switching
● Local operation
● TRACE function
● Display of converter faults and alarms
● Fault memory, can be read out via USB
TP900 Function Manual
Function Manual, 10/2016, A5E39487277A 11
