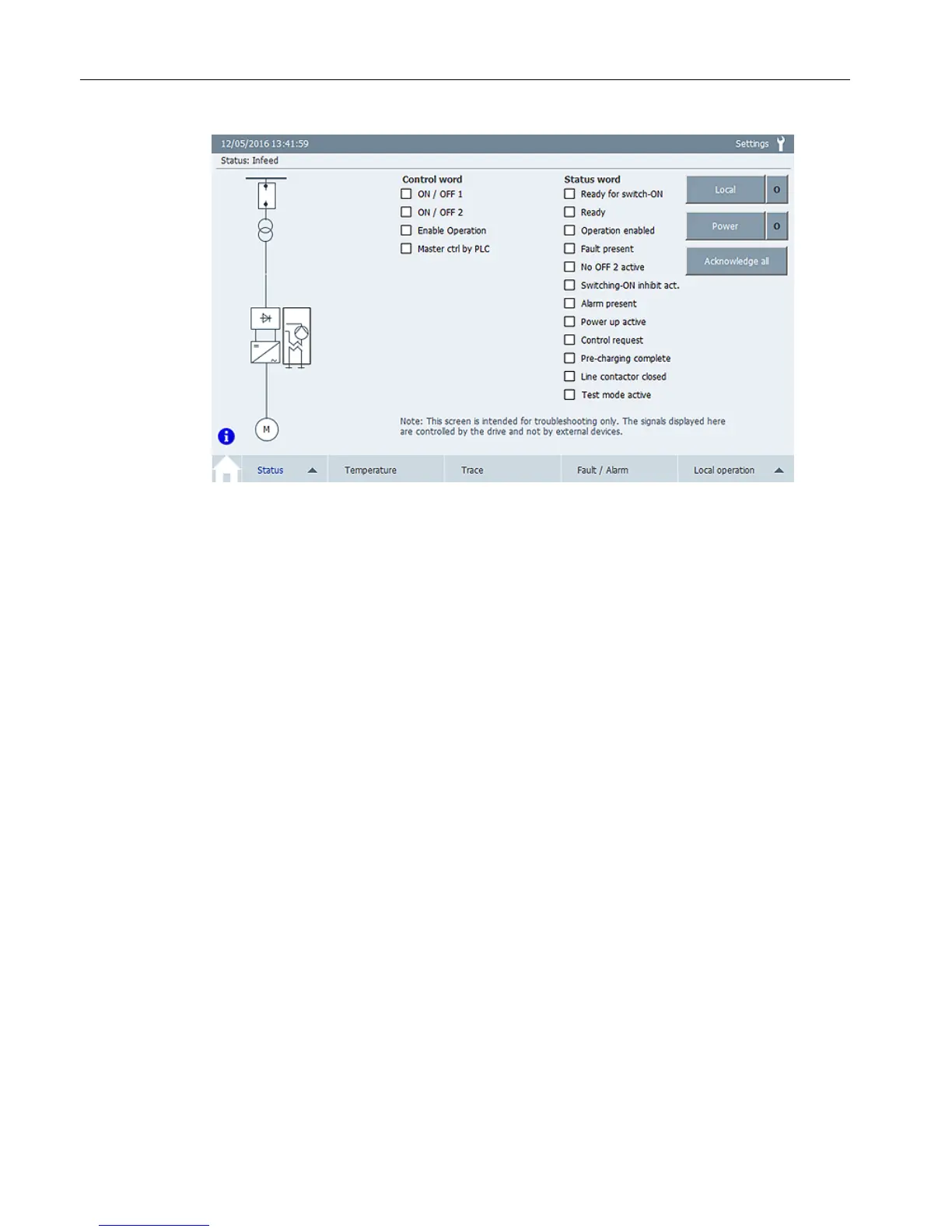

Figure 4-6 Example: "Infeed" screen, single-circuit
4.3 "Temperature" screen selection
4.3.1 "Temperature" screen
The "Temperature" screen displays the following information:
● All temperatures measured in the converter control cabinet
● Fan status during operation
Calling the screen
Press the "Temperature" button in the navigation bar.
Screens
4.3 "Temperature" screen selection
TP900 Function Manual
22 Function Manual, 10/2016, A5E39487277A
