3.2 Screen display areas

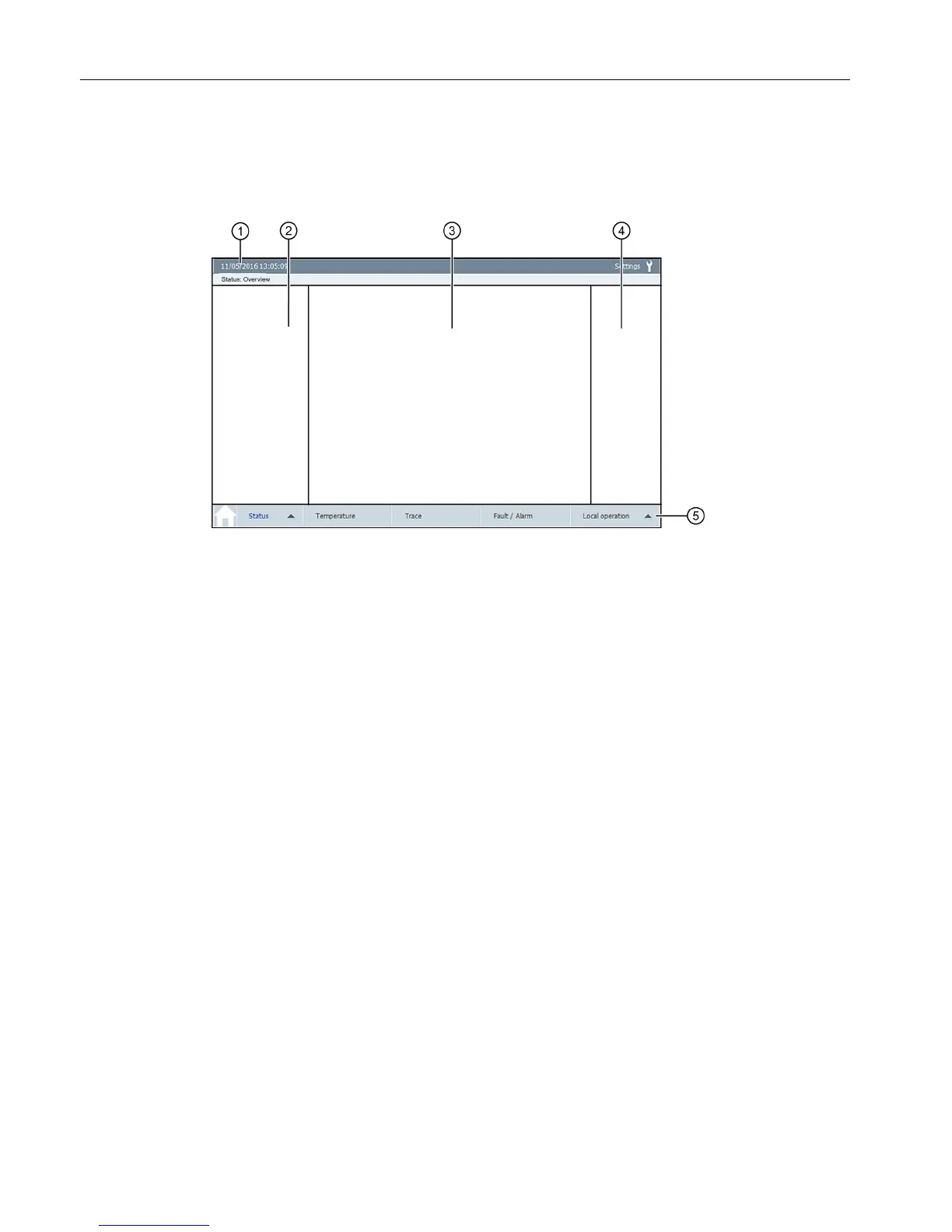

The operator panel screen is divided into several areas. Not all areas are displayed depending
on the function.
① Header
② Configuration of the converter
③ Main contents area
④ Function keys
⑤ Navigation bar
Figure 3-2 Screen display areas
Header
● The top header line displays the current date and time. Time and date are regularly
synchronized with the converter. The time of the Control Unit is overwritten with the time
of the operator panel.
● The bottom header line displays the name of the currently selected screen.
● If you press the Settings button, the menu for setting the screen appears. You will find
information in Section "Setting the screen".
Description
3.2 Screen display areas
TP900 Function Manual
12 Function Manual, 10/2016, A5E39487277A
