"Configuration of the converter" display
This area displays the configuration of the converter. Additional color information is provided
for the operating state of the drive. You will find information in Section "Color information".

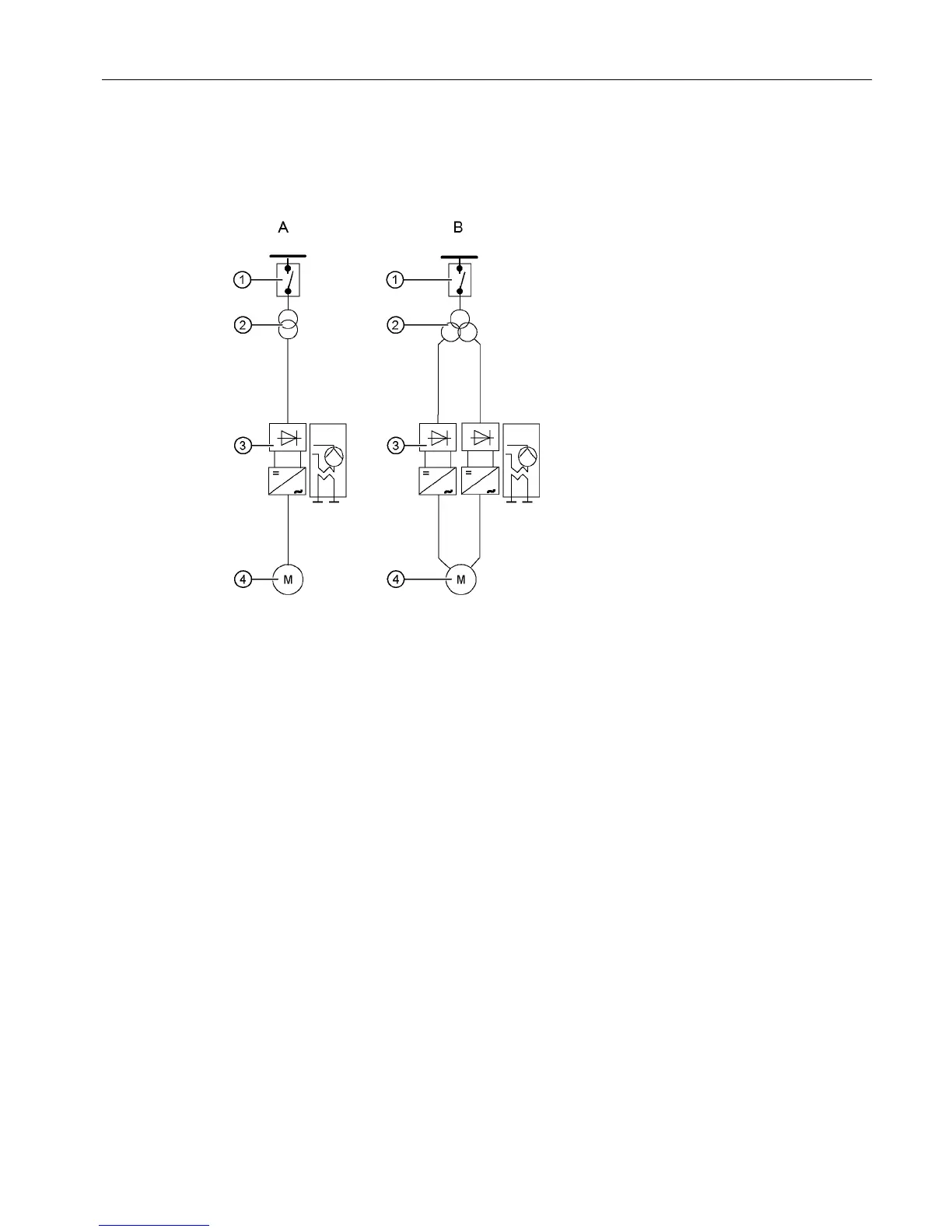

A Single-circuit converter
B Double-circuit converter
① Circuit breaker
② Transformer
③ Drive comprising Basic Line Modules, Motor Modules, cooling unit
④ Motor
Figure 3-3 Configuration
Main contents area
This area displays the values and states of the converter. The following sections contain a
description of the display options.
Description
3.2 Screen display areas
TP900 Function Manual
Function Manual, 10/2016, A5E39487277A 13
