Siemens SIMATIC HMI TP900 User Manual

4.5 "Fault/Alarm" screen selection
4.5.1 "Fault/Alarm" screen
The "Fault/Alarm" screen displays the following information:
● Faults/alarms are displayed with the fault time, the fault number, the drive object and a fault
description.
● An alarm or fault is also displayed in the navigation bar in the "Fault/Alarm" field:
– A red square for an alarm
– A yellow square for a fault
Calling the screen
Press the <Fault/Alarm> button in the navigation bar.

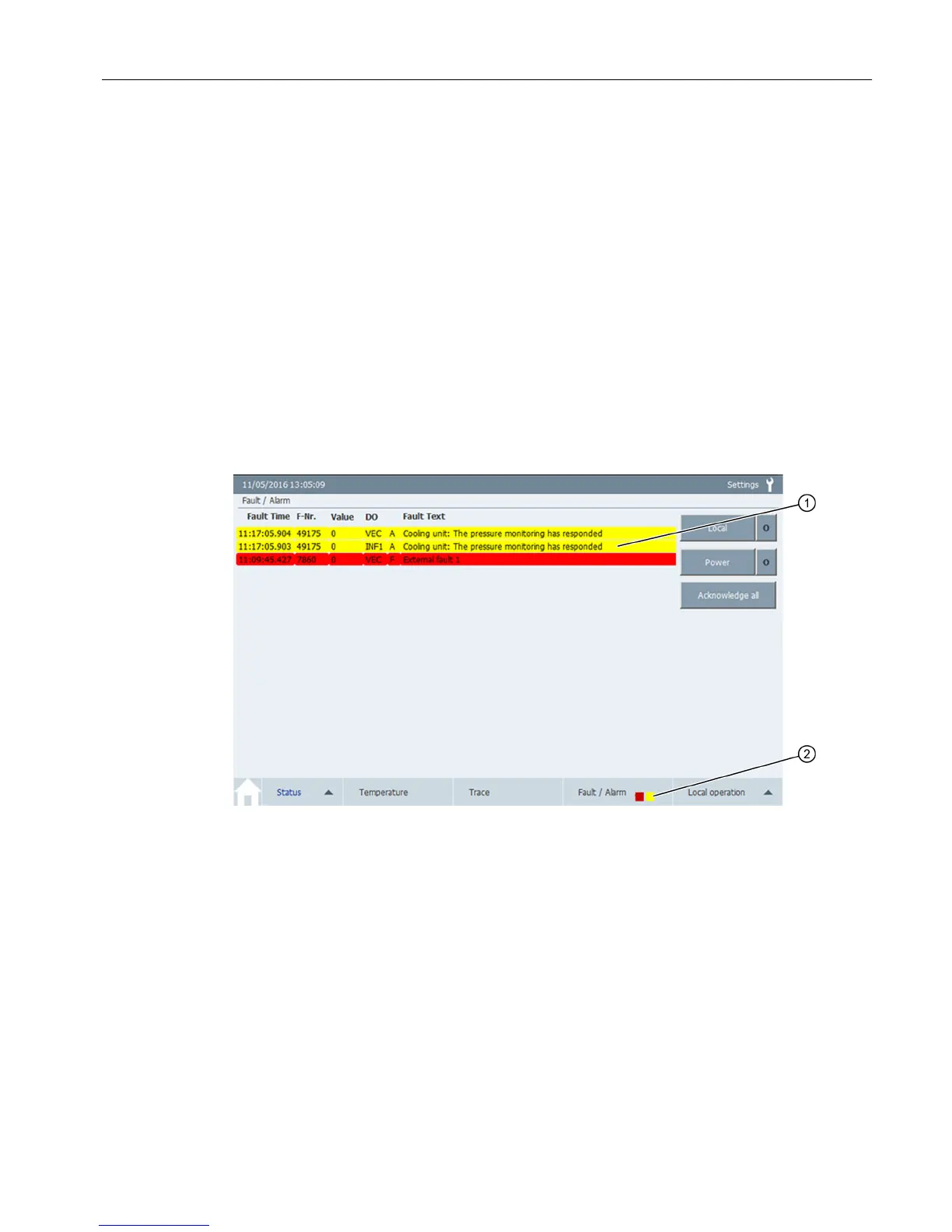

① Fault display in the main contents area. A = Alarm, F = Fault
② Fault display in the navigation bar
Figure 4-10 Example: "Fault/Alarm" screen
You can find a description of the causes and the remedy for faults/alarms in the converter List
Manual.
Screens
4.5 "Fault/Alarm" screen selection
TP900 Function Manual
Function Manual, 10/2016, A5E39487277A 25

Siemens SIMATIC HMI TP900 Specifications

General

Resolution	800 x 480 pixels
Touchscreen	Yes
Backlight	LED
Power Supply	24 V DC
Mounting Type	Panel mount
Display Size	9 inches
Interface	USB
Operating Temperature	0°C to 50°C
Protection Rating	IP65
Display Type	TFT LCD
Touchscreen Type	Resistive
