Functions
3.1 Option handling with RESERVE modules
Interface module IM151-1 STANDARD (6ES7151-1AA06-0AB0)
Manual, 07/2015, A5E01075950-AD
17

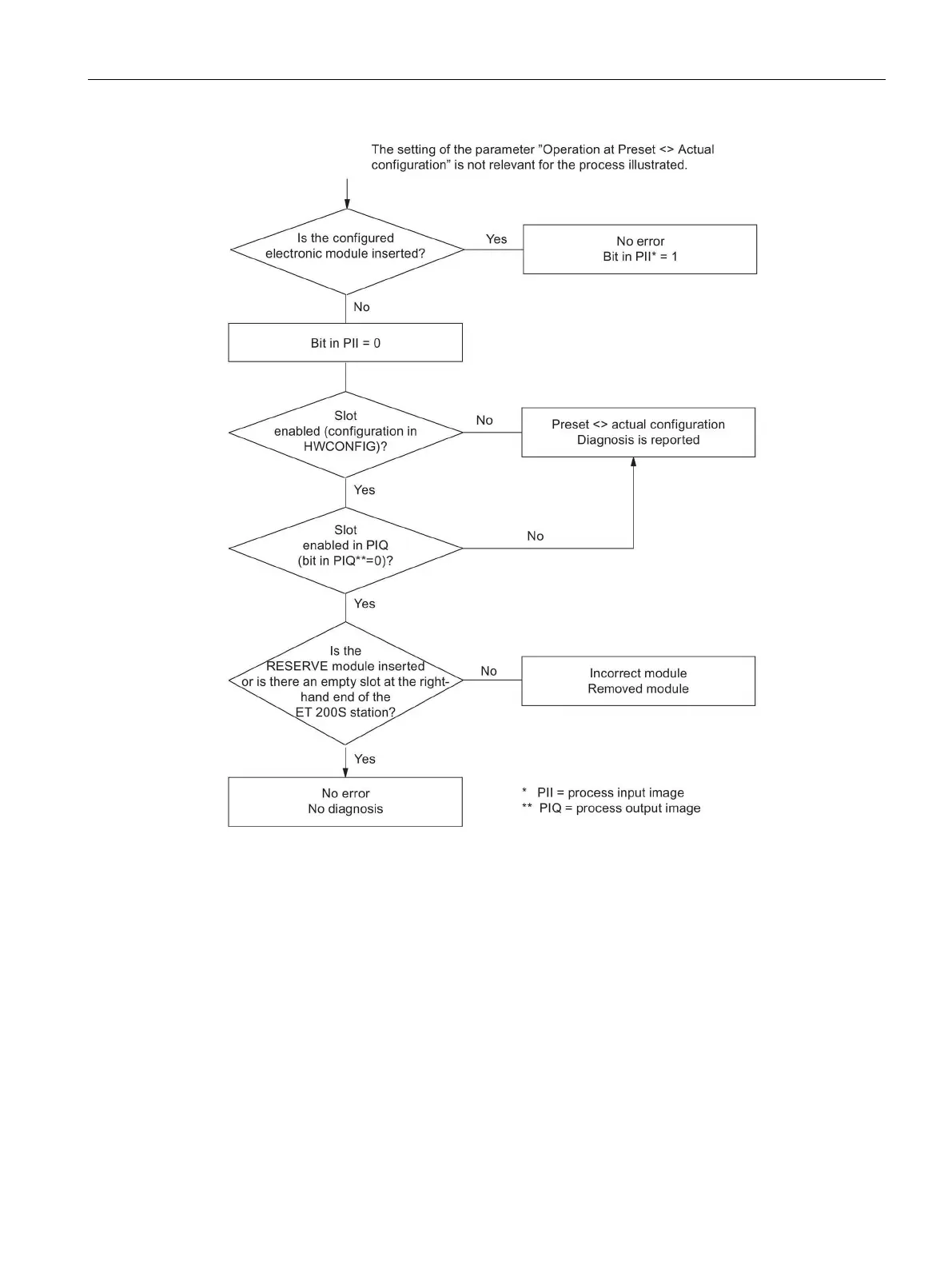

Figure 3-1 Principle of operation of option handling with RESERVE modules
