Module status
Definition
The module status indicates the status of the configured modules and provides more
information on the identifier-related diagnostics with respect to the configuration. The module
status starts after the identifier-related diagnostics and consists of 20 bytes.
The module status for the ET 200S with the IM151-1 STANDARD is structured as follows:

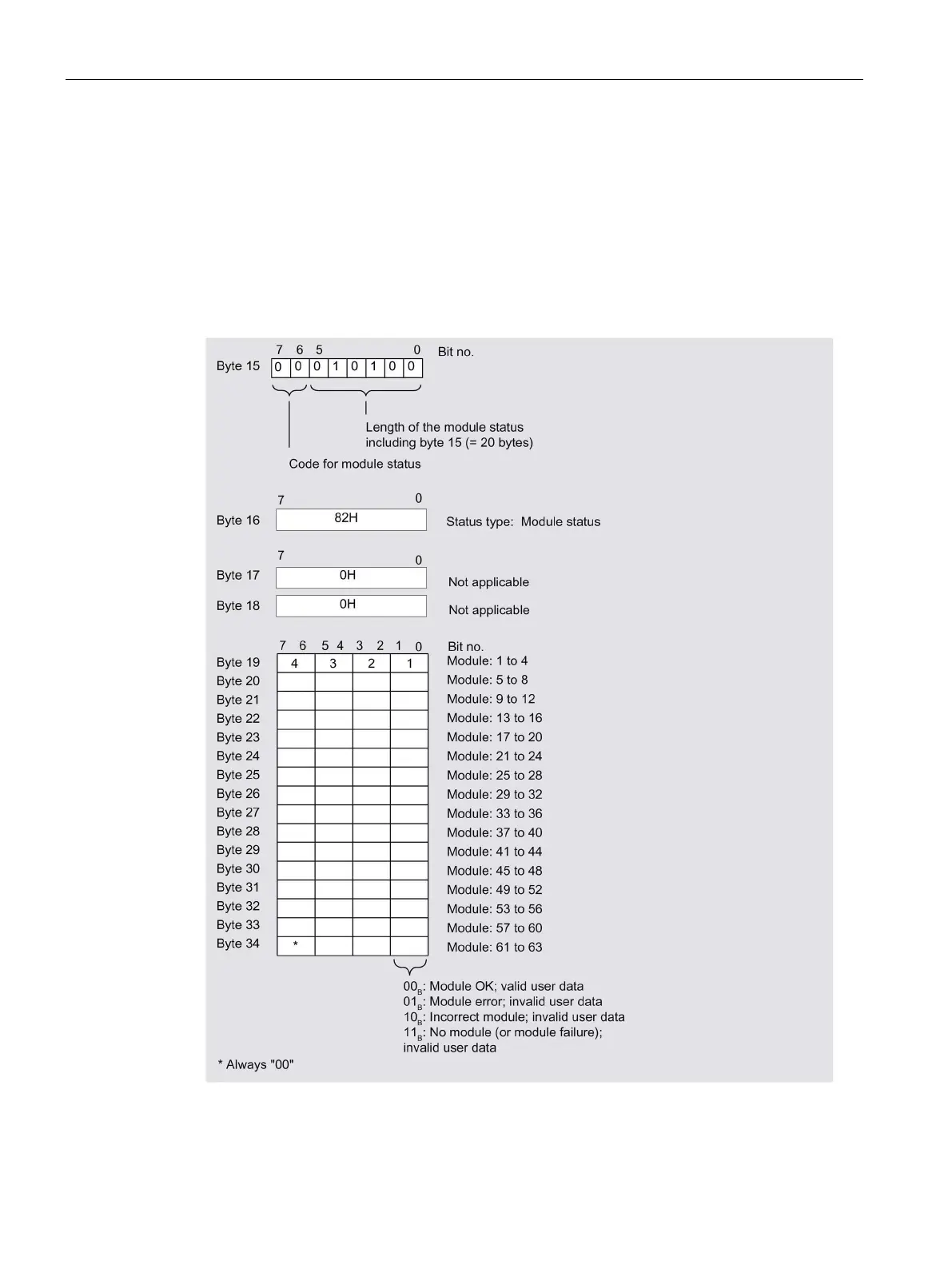

Figure 4-3 Structure of the module status for the ET 200S with the IM151-1 STANDARD
