Siemens SIMATIC IM151-1 STANDARD User Manual

Response times
5.2 Response times for the ET 200S
Interface module IM151-1 STANDARD (6ES7151-1AA06-0AB0)
60 Manual, 07/2015, A5E01075950-AD
5.2
Response times for the ET 200S
Calculating the response time with the IM151-1 STANDARD
The following equation enables you to make an approximate calculation of the ET 200S
response time:
Response time [μs]* = 28 ·
m + 9 · b + 350
Explanation of the parameters:
●
m
: Sum total of all configured modules
●
b
: Sum total of all input and output bytes (without bit granular modules)
Example for calculating the ET 200S response time (as of 6ES7151-1AA05-0AB0)

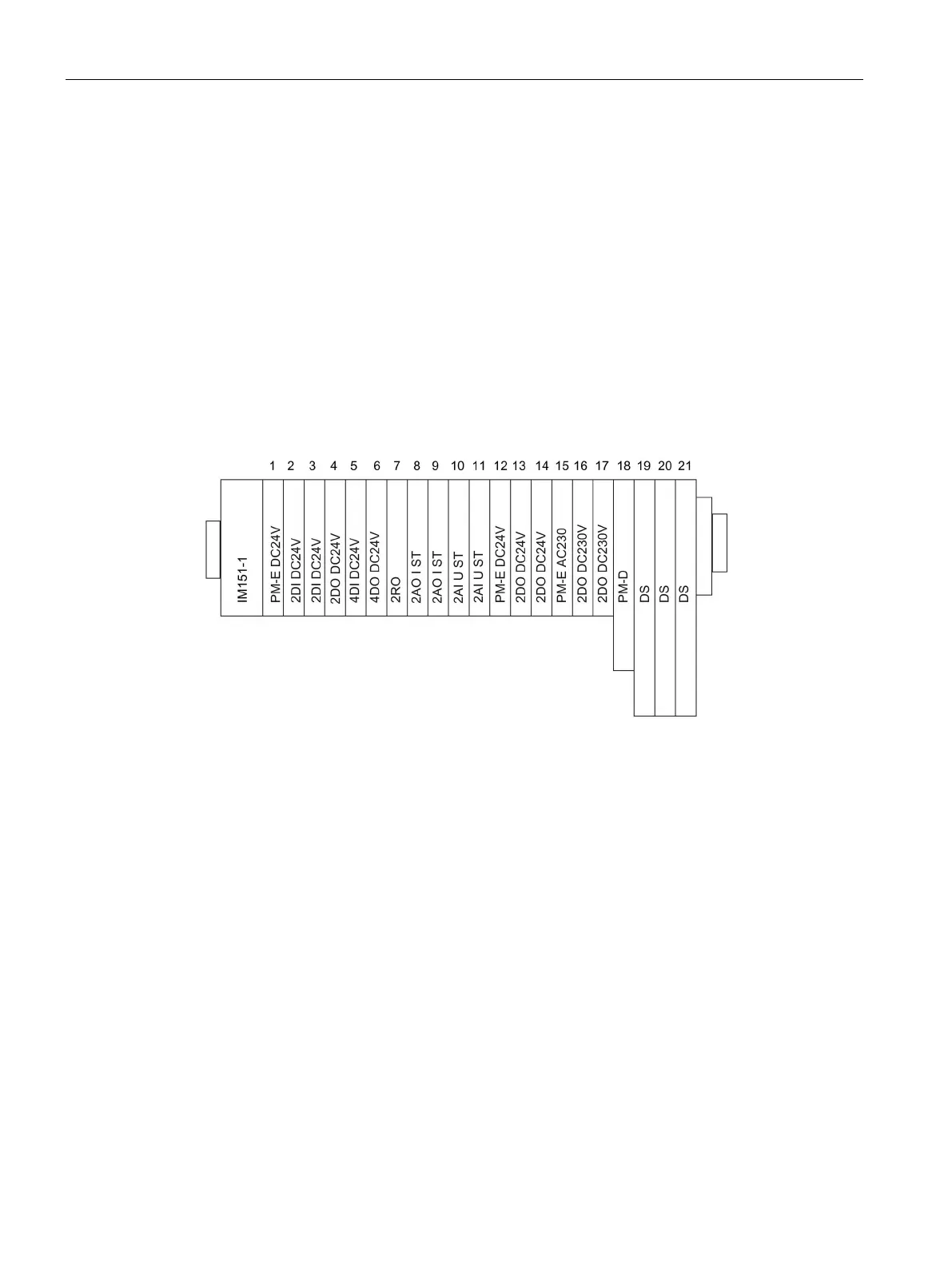

Figure 5-2 Example setup for calculating the response time of the IM151-1 STANDARD
Calculation method:
m = 21; b = 16
Response time = 28 ·
m + 9 · b + 350
Response time = 28 · 21 +9 · 16 + 350
Response time =
1082 μs
