Interface module IM151-1 STANDARD (6ES7151-1AA06-0AB0)
Manual, 07/2015, A5E01075950-AD
59
Response times
5
5.1
Overview

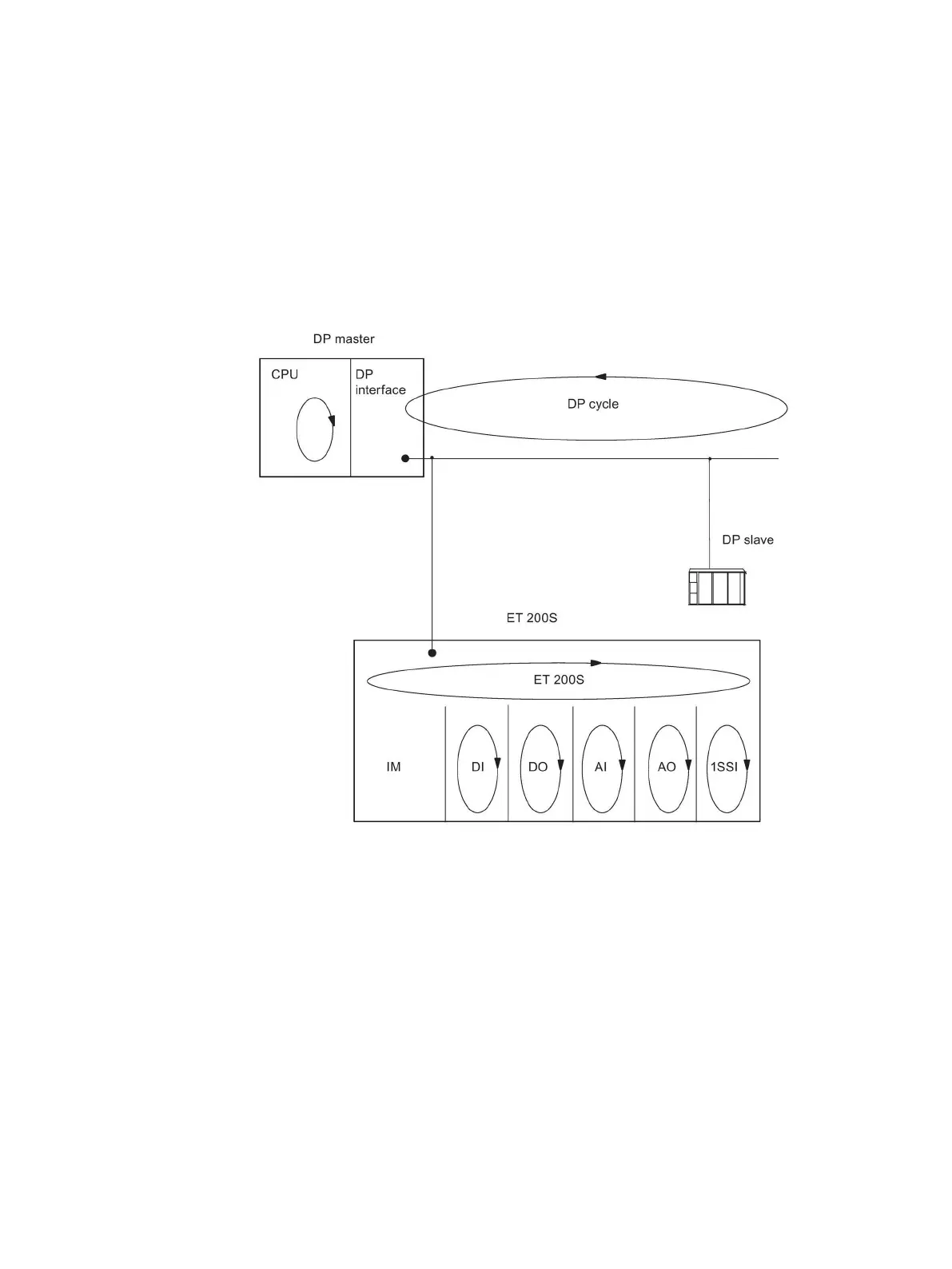

The figure below shows the various response times between DP Master and ET 200S.
Figure 5-1 Response times between DP Master and ET 200S
