Interrupt, error, and system messages
4.4 Diagnostics with STEP 7
Interface module IM151-1 STANDARD (6ES7151-1AA06-0AB0)
Manual, 07/2015, A5E01075950-AD
49
Once configuration with
STEP 7
is complete, the interrupt data is evaluated and transferred
to the relevant organization blocks (OBs).
The interrupt section for the ET 200S is structured as follows:

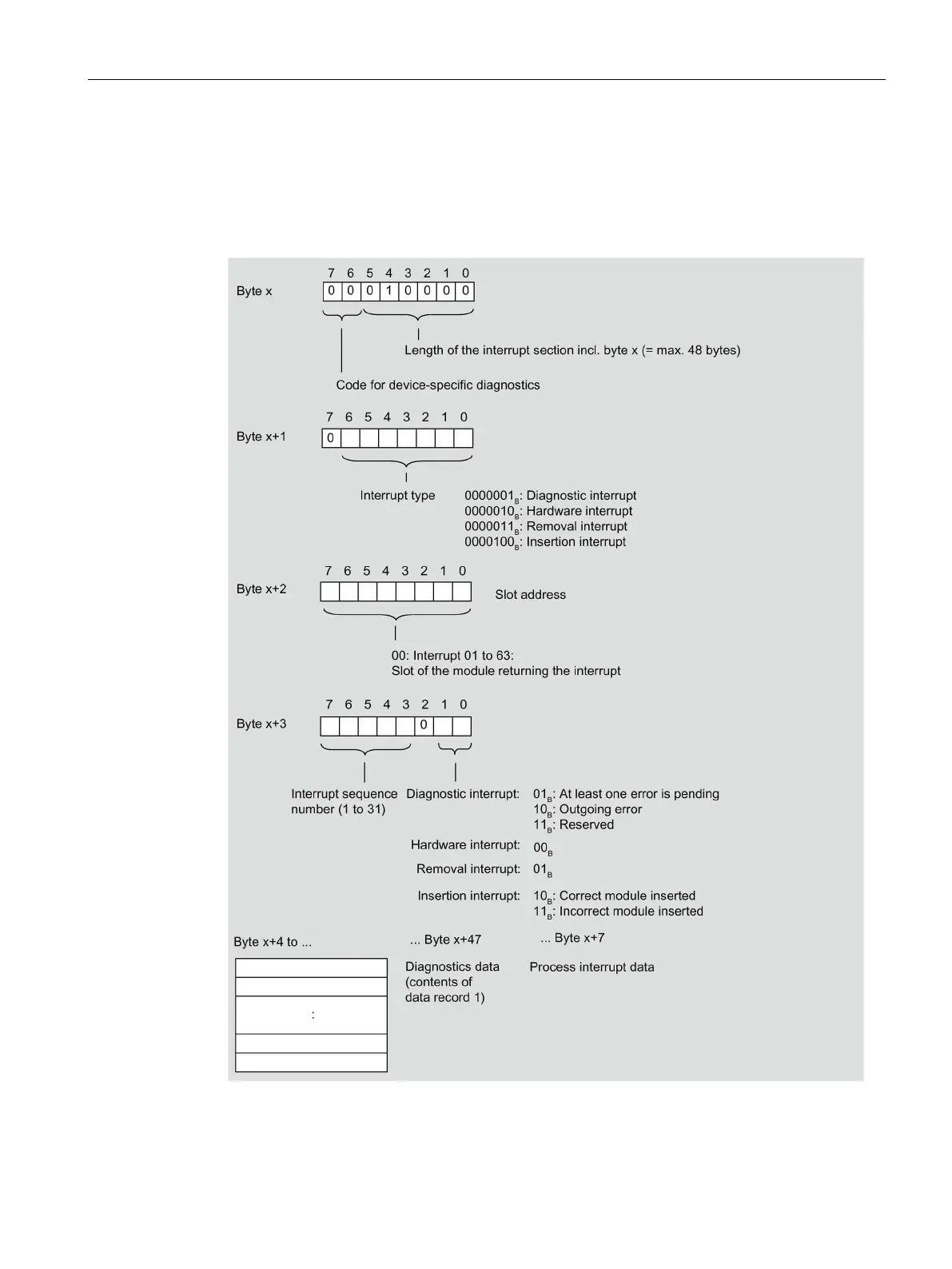

Figure 4-5 Structure of the interrupt status of the interrupt section
