Installing and connecting the device
3.1 Preparing for installation
SIMATIC IPC427D
32 Operating Instructions, 05/2017, A5E31347215-AB

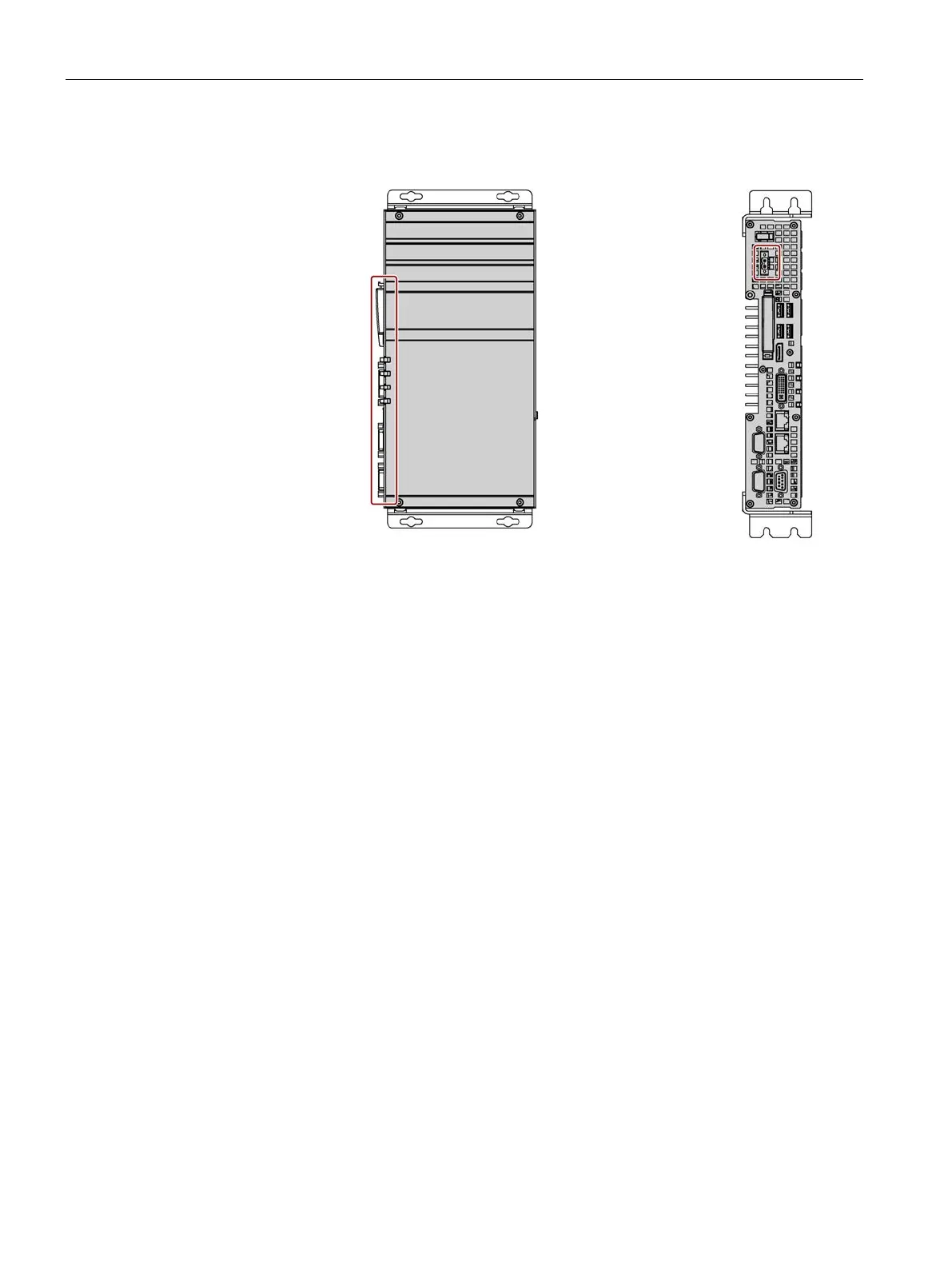

The vertical mounting options are as follows:
Wall mounting
The interfaces are at
the left.
Vertical mounting
The interfaces are
at
the front. The
power supply co
n-
nection is at the
top.
Observe the permitted temperature range for operation in the respective mounting position
as defined in "Technical specifications (Page 115)".
