Siemens SIMATIC IPC427D User Manual

Device maintenance and repair
7.3 Installing and removing hardware
SIMATIC IPC427D
86 Operating Instructions, 05/2017, A5E31347215-AB

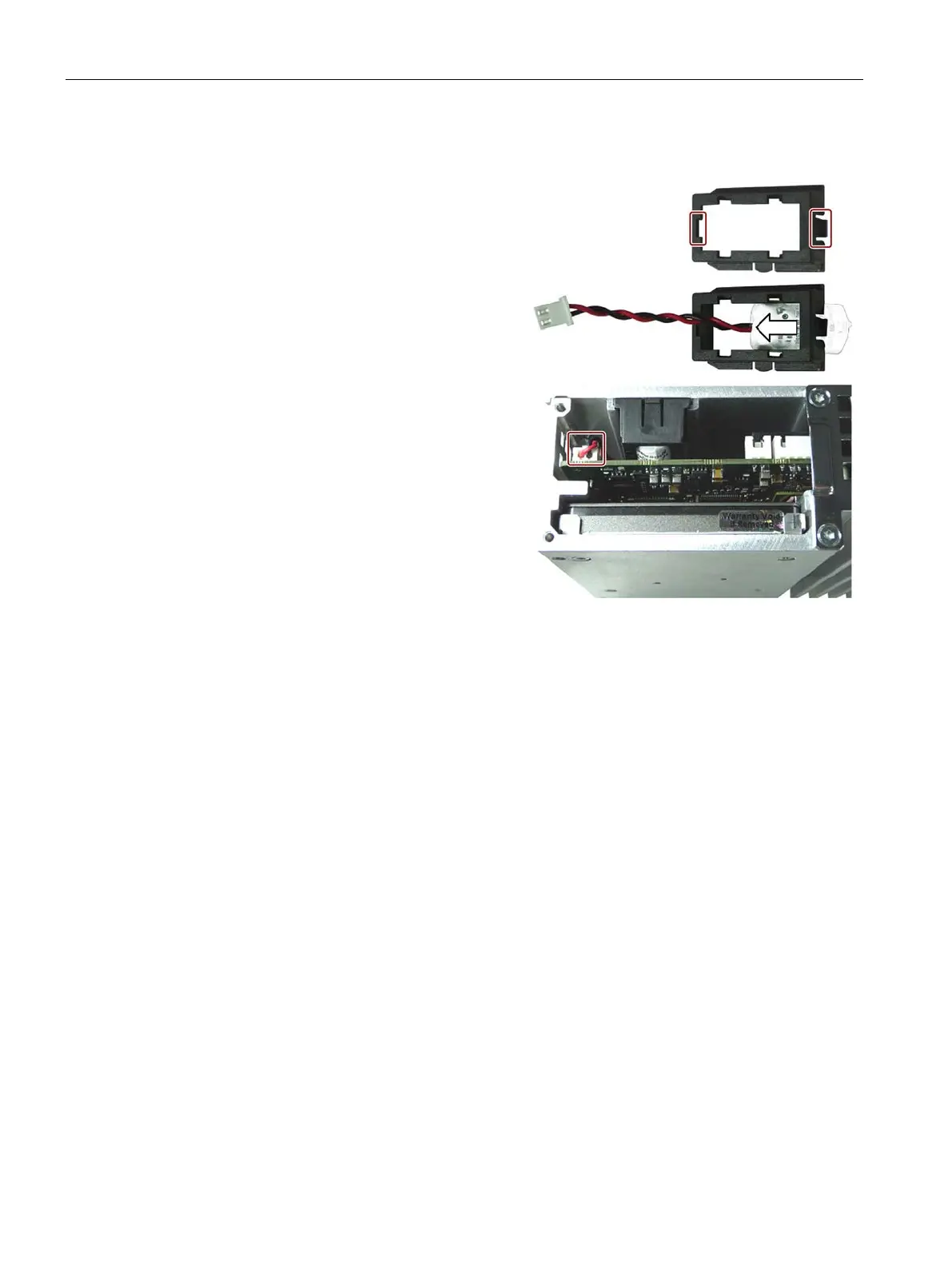

Installation
1.
Hold the battery holder according to the
form elements as shown.
2.
Insert the battery into the bottom of the
battery holder and push it in.
3.
Carefully insert the connector
shown.
4.
Insert the battery holder into the encl
o-
sure guide.
5.
Return the cover panel to its original position and tighten its two screws.

Siemens SIMATIC IPC427D Specifications

General

Brand	Siemens
Model	SIMATIC IPC427D
Category	Industrial PC
Language	English
