Device maintenance and repair
7.3 Installing and removing hardware
SIMATIC IPC427D
Operating Instructions, 05/2017, A5E31347215-AB
89
Installation

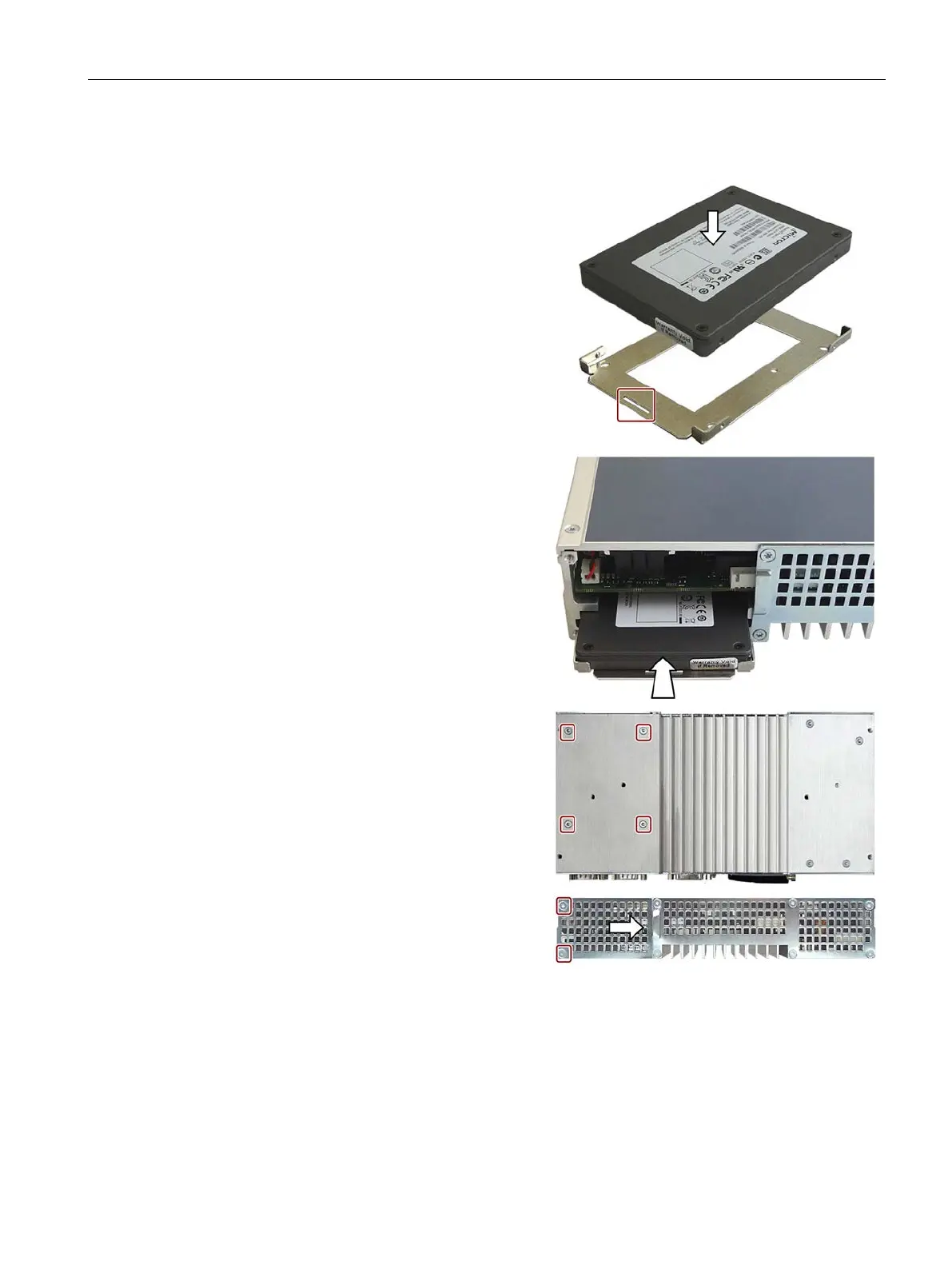

1.
Place the HDD/SSD onto the base plate.
Observe the recess position shown when
installing an SDD. The SSD interfaces
should be located opposite the recess.
2.
Insert
the new HDD/SSD into the enclo-
sure.
Take care that the nameplate is on top.
Slide the HDD/SSD into the enclosure
until you can see the mounting holes.
3.
Turn in the marked screws.
4.
Insert the cover into the enclosure.
Turn in the marked screws.
