Overview
2.2 Installation
SIMATIC IPC477E PRO
12 Operating Instructions, 08/2017, A5E39912462-AA

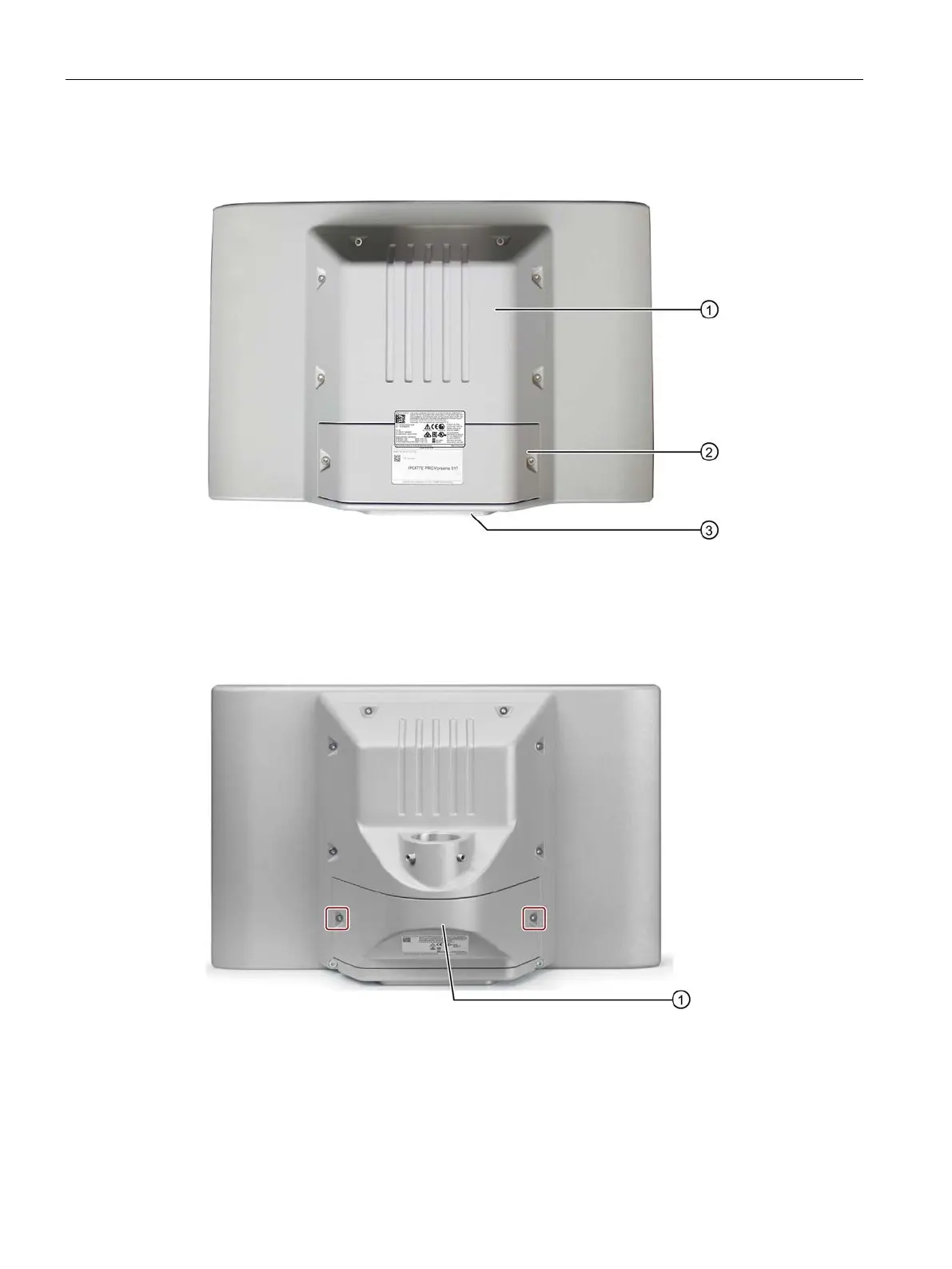

Rear view - device version "prepared for pedestal/extension components" and "prepared for support
arm without extension components".
①
Backplane cover
②
Terminal compartment cover
③
Mechanical interface for mounting/base adapter
Rear view - device version "prepared for support arm and extension components"
①
Terminal compartment cover
