Siemens SIMATIC IPC477E PRO User Manual

Mounting and connecting the HMI device
4.2 Permitted mounting positions
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
31
4.2
Permitted mounting positions
Mounting position
The mounting positions described below are permitted for the PRO devices.
● Standard mounting position: Vertical installation in horizontal format
● Inclined installation in horizontal format with a vertical inclination of maximum ±45°
Upright mounting in vertical format is prohibited for the PRO device

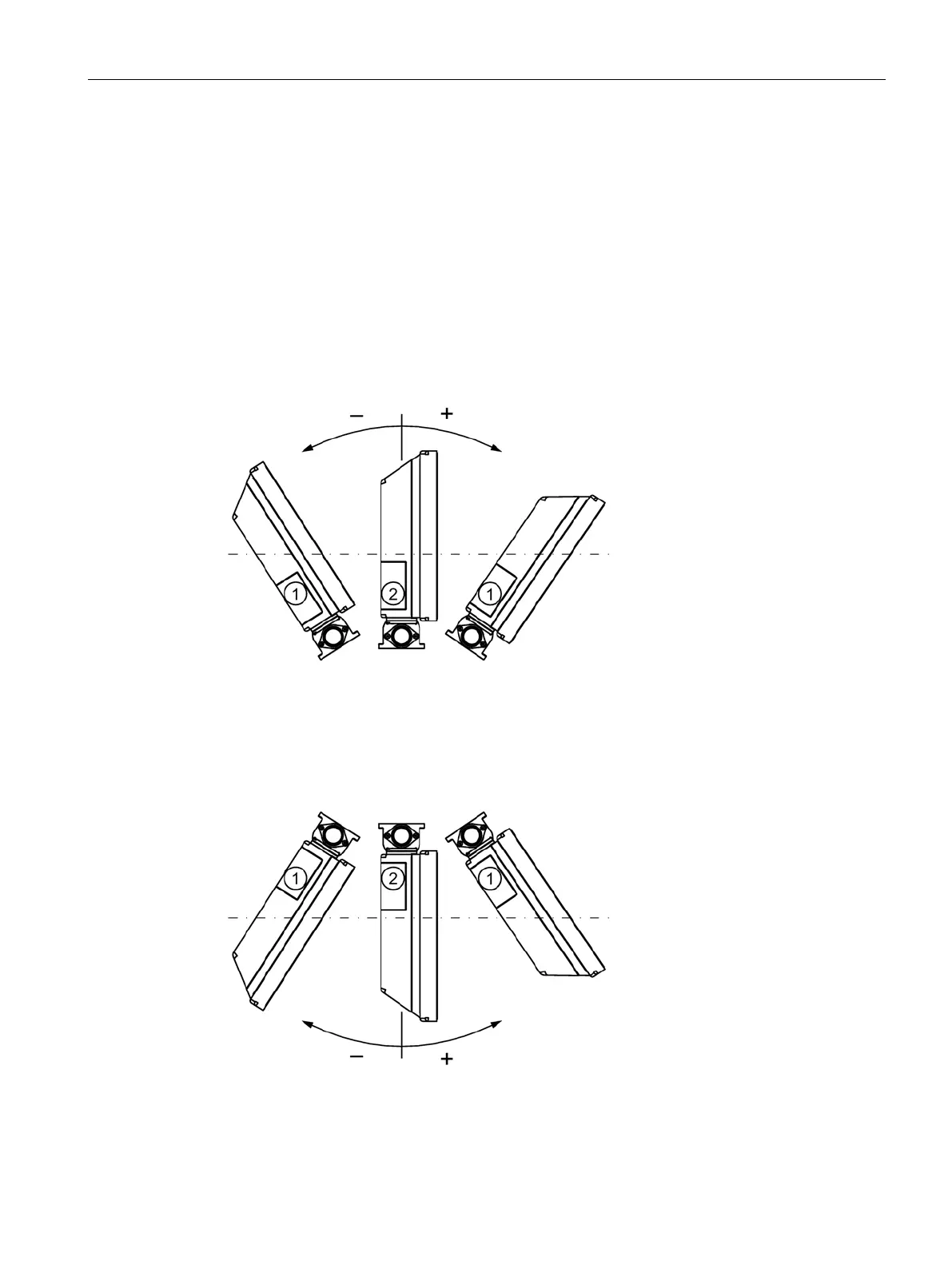

Device version "prepared for pedestal/extension components (flange at bottom)"
Mounting
position
Deviation from the vertical
①
Inclined
≤ 45°
②
Vertical
0°
Device version "prepared for support arm without extension components (flange at top)"
Mounting position
①
Inclined
≤ 45°
②
Vertical
0°
