Mounting and connecting the HMI device
4.2 Permitted mounting positions
SIMATIC IPC477E PRO
32 Operating Instructions, 08/2017, A5E39912462-AA

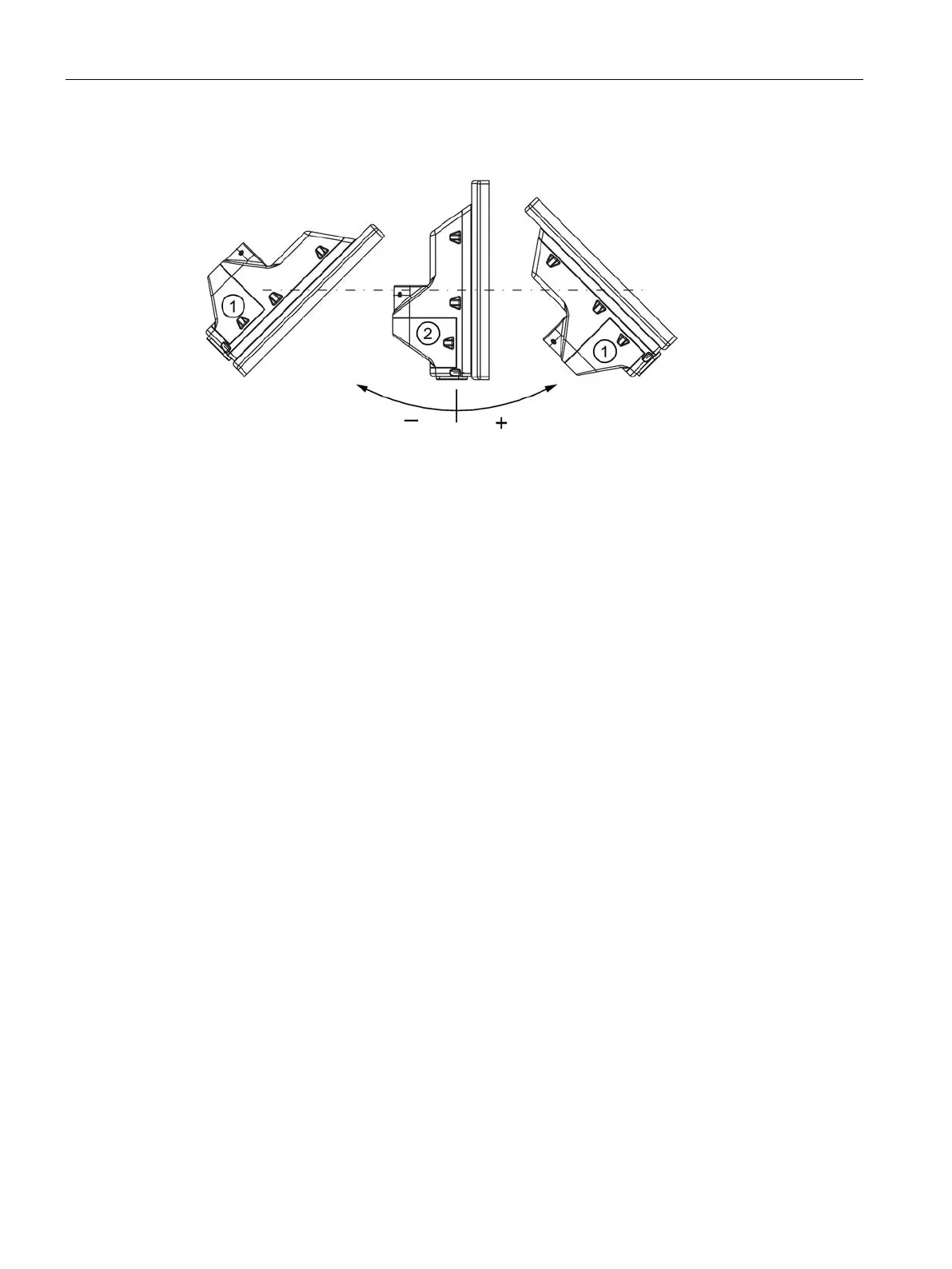

Device version "prepared for support arm and extension components (round tube)"
Mounting position
Inclined
≤ 45°
Vertical
