Overview
2.2 Installation
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
13
Note
The device version "prepared for support arm and extension components" is intended for
devices with an extension (see
System components (Page 15)).

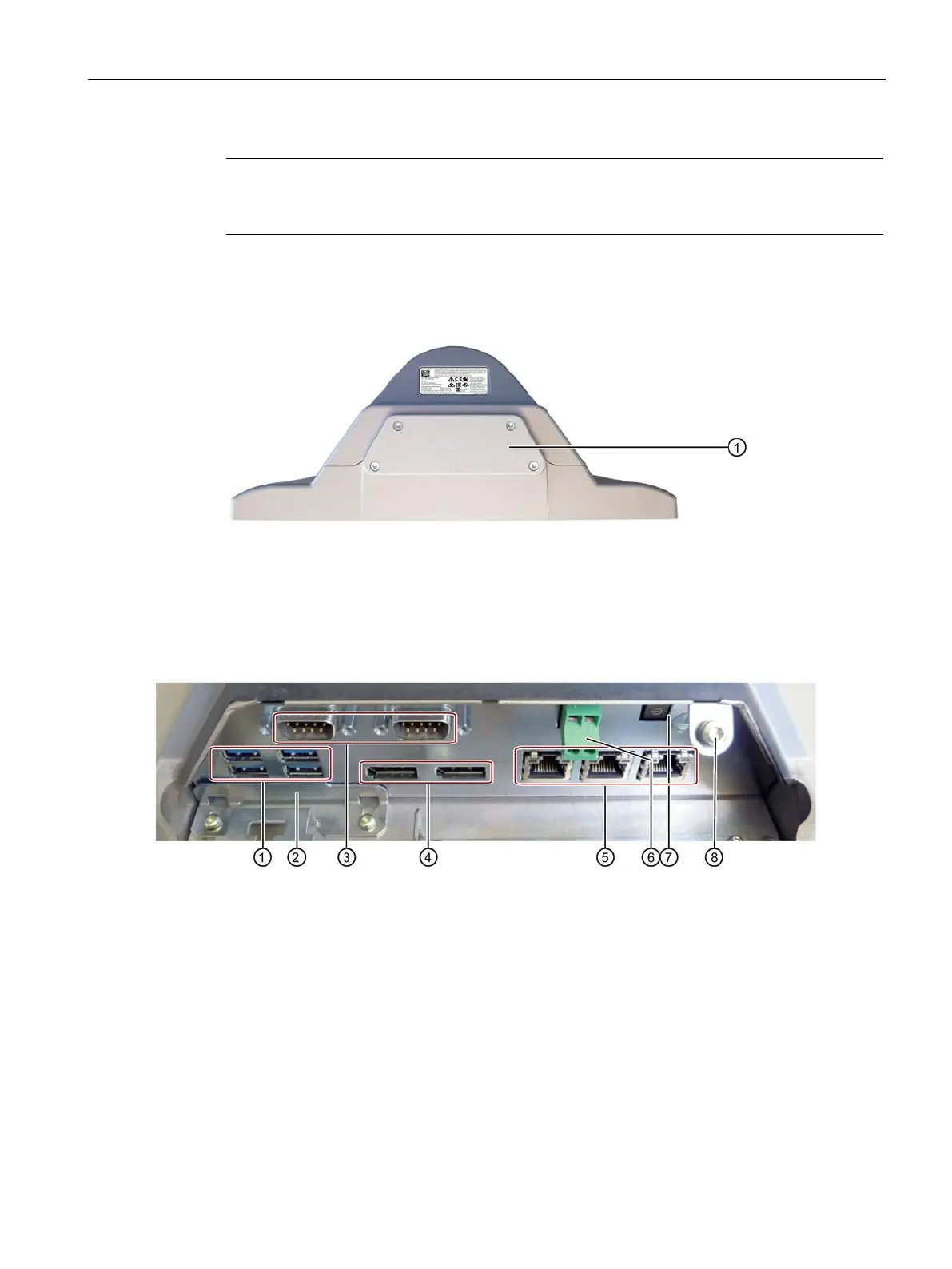

Bottom - device version "prepared for support arm and extension elements"
①
Cover plate
2.2.1
Interfaces and operator controls for PRO device
The assignment of the interfaces is shown inside the terminal compartment cover.
①
4 x USB port
USB 3.0 high speed/high current
②
Slot for CFast card
Behind the strain relief
③
COM1/2 port (optional)
Serial port, 9-pin D-sub connector
④
Display port
⑤
3 × Ethernet port
RJ45 Ethernet port, 10/100/1000 Mbps
⑥
Connection terminal
24 V DC power supply
Connection terminal inserted in delivered condition
⑦
On/off switch
⑧
Protective conductor connection
