Technical specifications
9.5 Hardware descriptions
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
129
Pin
Short name
Meaning
PC9
LED2
LED Output (not connected)
PC10 IO1 Reserved Input/Output (not connected)
PC11
IO2
Reserved Input/Output (not connected)
PC12 IO3 Reserved Input/Output (not connected)
PC13
PWR
Device Power (3.3V)
PC14
PWR
Device Power (3.3V)
PC15
GND
Device GND
PC16
GND
Device GND
PC17
CDO
Card Detect Out

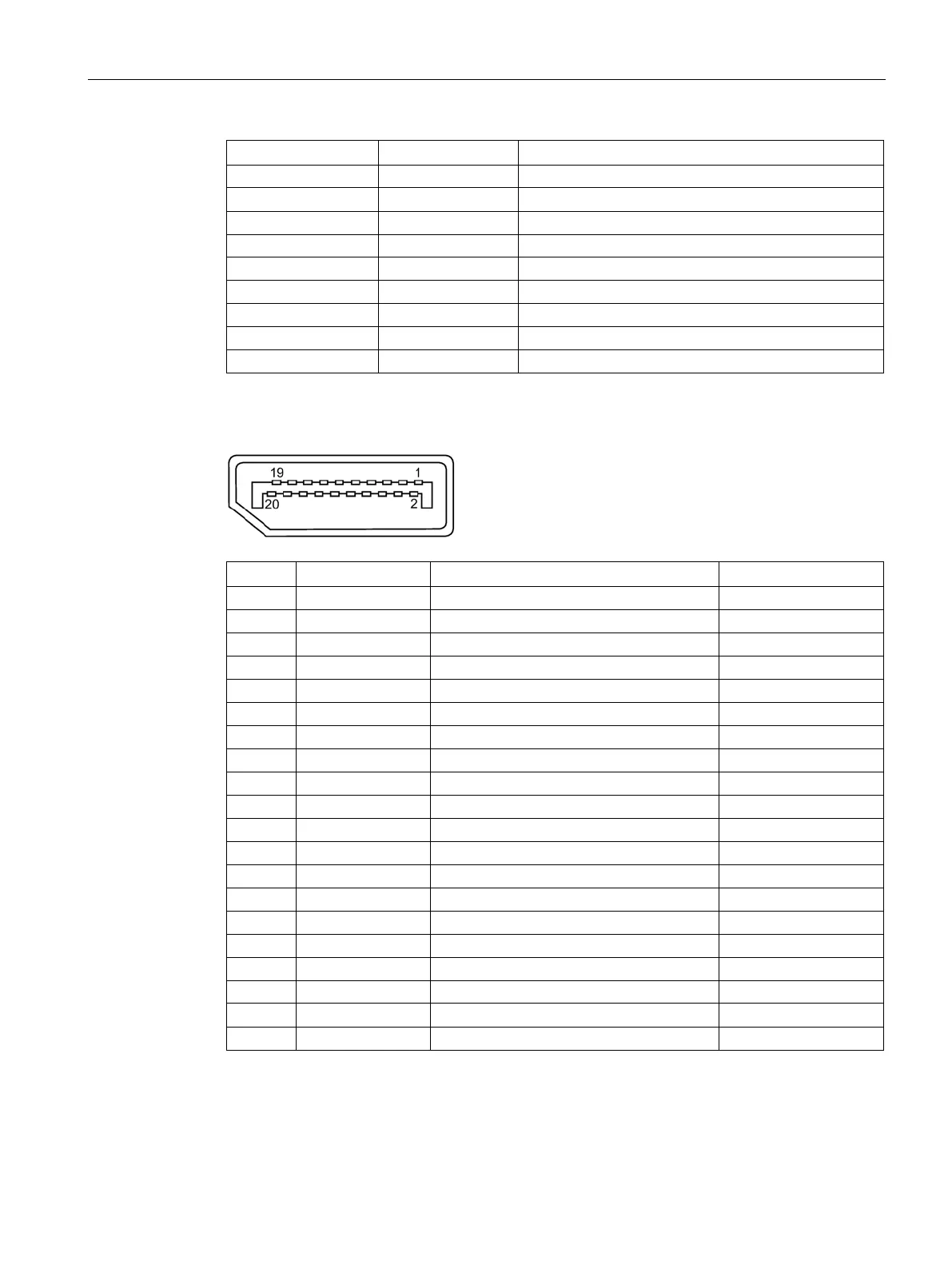

9.5.1.3
DisplayPort
Pin
Short name
Meaning
Input / output
1
ML_Lane0+
DP data 0+
Output
2
GND
Ground
-
3
ML_Lane0-
DP data 0-
Output
4
ML_Lane1+
DP data 1+
Output
5
GND
Ground
-
6
ML_Lane1-
DP data 1-
Output
7
ML_Lane2+
DP data 2+
Output
8
GND
Ground
-
9
ML_Lane2-
DP data 2-
Output
10
ML_Lane3+
DP data 3+
Output
11
GND
Ground
-
12
ML_Lane3-
DP data 3-
Output
13
CONFIG1 CAD
Cable Adapter Detect
Input
14
CONFIG2
Ground (PullDown)
-
15
AUX_CH+
Auxiliary channel+
Bidirectional
16
GND
Ground
-
17
AUX_CH-
Auxiliary channel-
Bidirectional
18
HPD
Hot Plug Detect
Input
19 GND Ground -
20
DP_PWR
+3.3V (fused)
Output
