Mounting and connecting the HMI device
4.3 Mounting the device
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
37

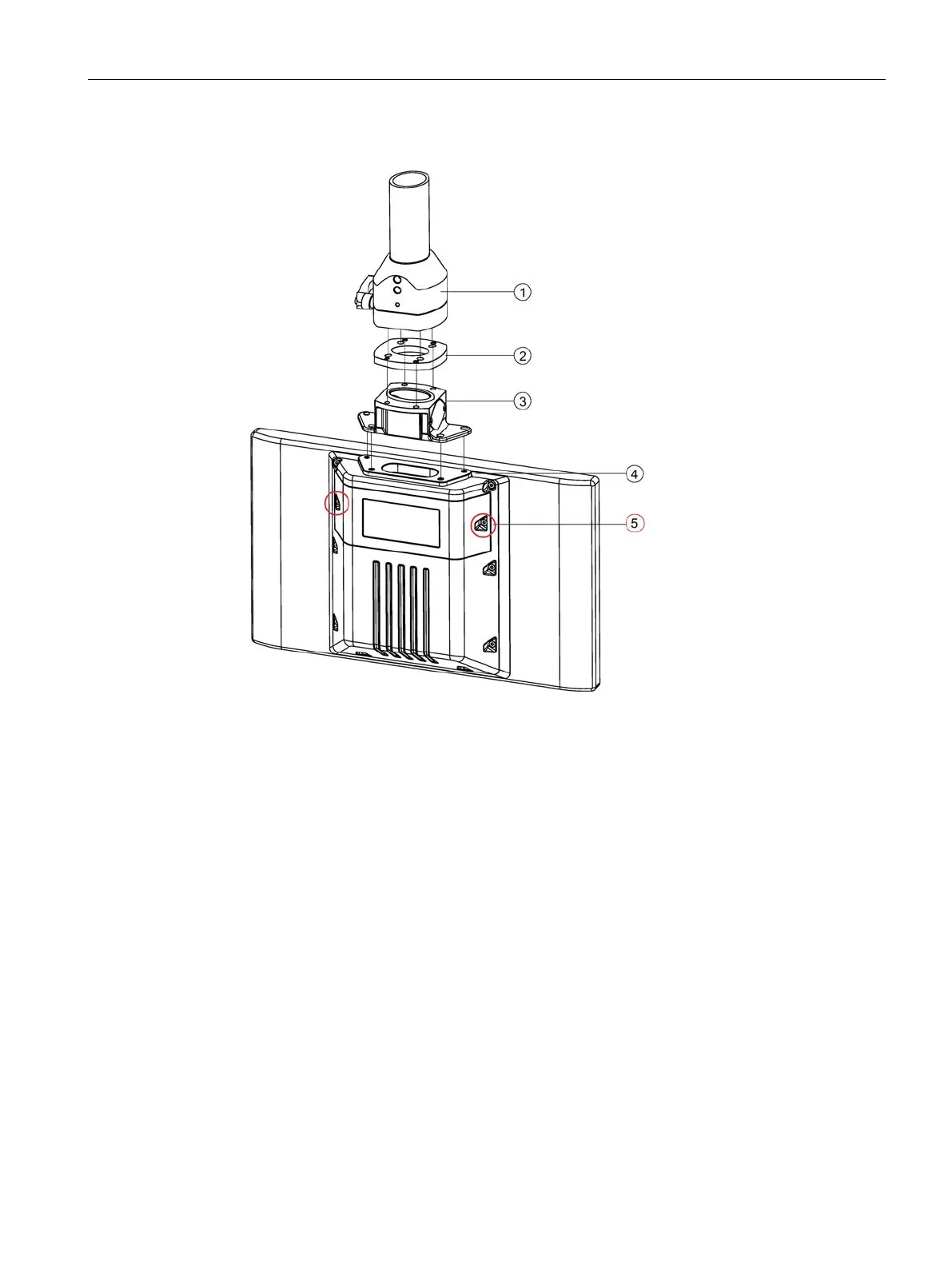

3. Remove the screws ⑤ of the terminal compartment cover.
Countersunk head screws for device
Screws for terminal compartment cover
4. Open the terminal compartment cover ⑤ and set it aside safely.
5. Insert all connection cables through the opening of the PRO device.
Make sure that the connecting cables are not damaged.
: Route large connectors (e.g. RS232 connectors) and their cables
through the pedestal or support arm first.
6. Attach the device with 4 M4x12 countersunk head screws to the base adapter
③ from
the top, torque 2.5 Nm.
Make sure that the connecting cables are not pinched.
7. Connect all cables according to the description in the section Connecting the device
(Page 42).
8. Fasten the cover plate
⑤ to the device with the 2 screws, torque 1.5 Nm.
Check that the seal is sitting correctly.
