Mounting and connecting the HMI device
4.4 Connecting the device
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
49

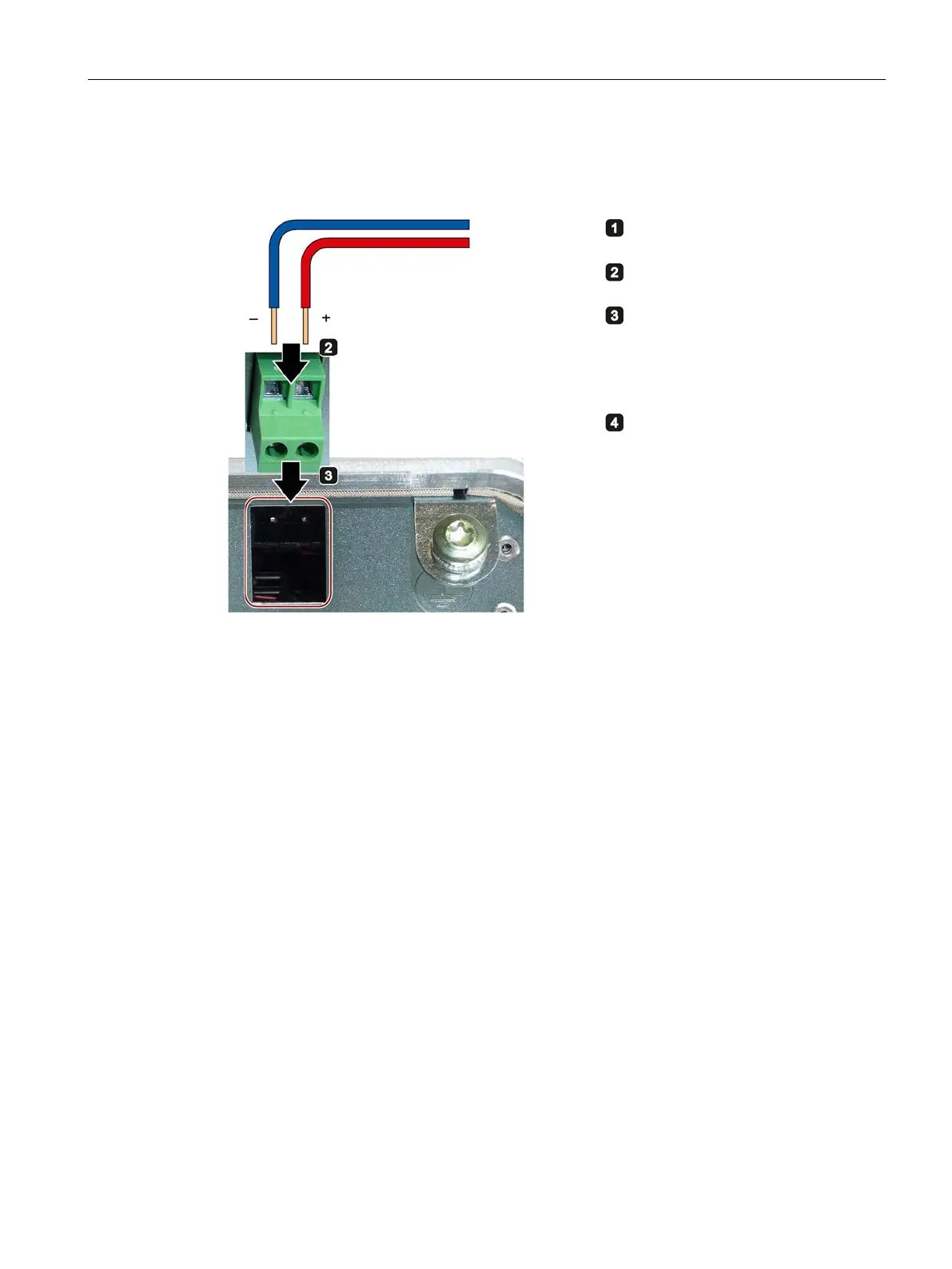

Procedure
Switch off the 24 V DC power
supply.
Connect the wires of the power
supply.
Plug the connecting terminal into
the connection socket at the indi-
cated position.
The connecting terminal must
snap into the connection socket.
Secure the power supply cable to
the strain relief with a cable tie.
Similar to figure
