Expanding the device and assigning the device parameters
7.1 Opening and closing the backplane cover
SIMATIC IPC477E PRO
Operating Instructions, 08/2017, A5E39912462-AA
77

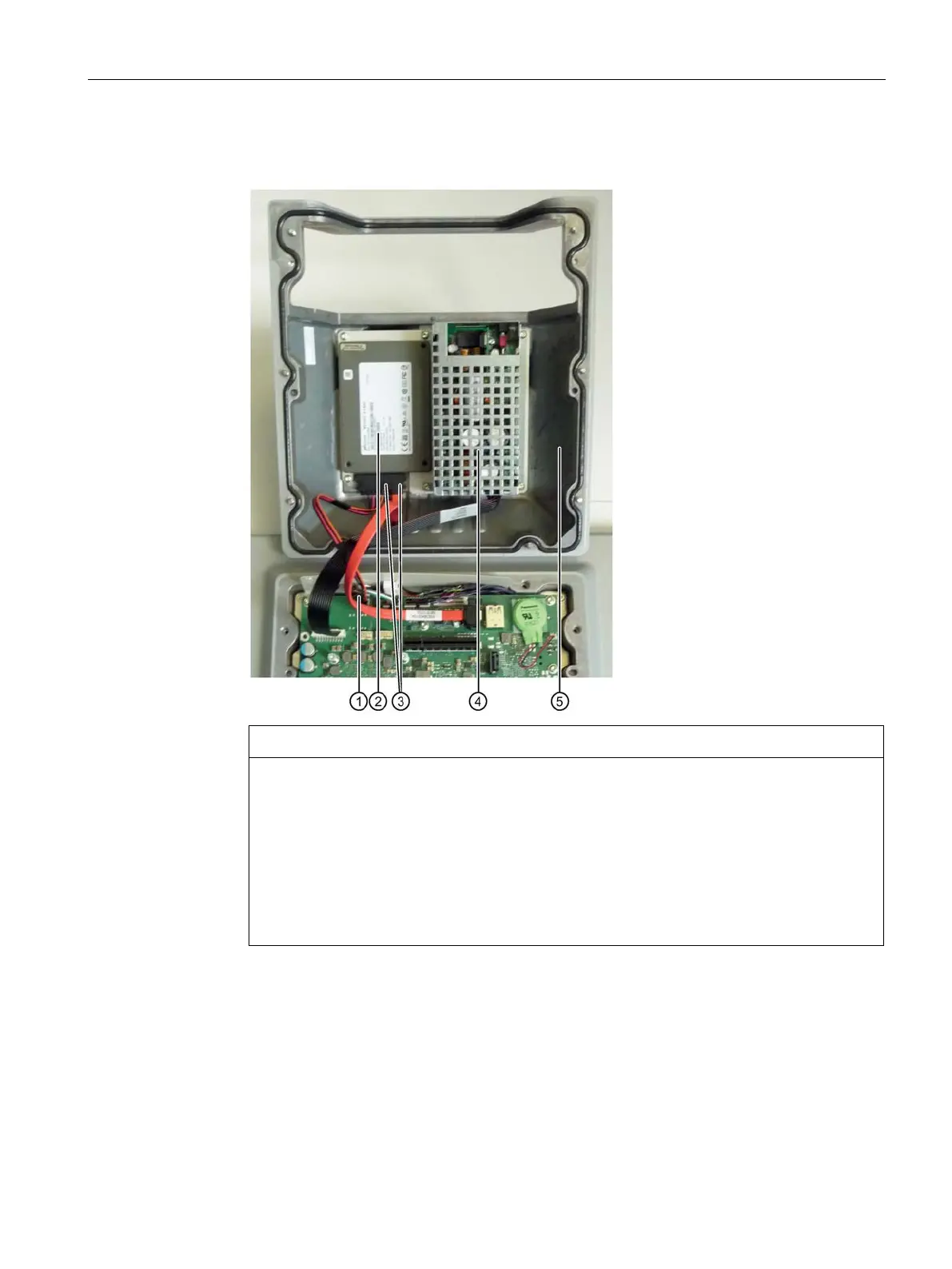

5. Open the backplane cover ①, gently open it 90° upwards and place it on the edge of the
enclosure, as shown below.
An SSD ② and power supply ④ are built into the backplane cover and connected to
the motherboard with short cables
③. If you open up the backplane cover ⑤
completely or set it aside, you pull on the cables by their connectors. The device may be
damaged.
1. Secure the backplane cover
⑤ from falling down.
2. Pull out the cable connector
③ (see section "Replace SSD (Page 89)").
3. Unplug the power supply connector
① on the motherboard.
6. Now you can install and remove the hardware.
