SIMATIC MV320 / SIMATIC MV325
Operating Instructions, 08/2015, C79000-G8976-C352-03
15
Installing and connecting (SIMATIC MV325)
Mounting the charging station
You can mount the charging station according to your requirements:
● Charging station without base plate (Page 15)
● Charging station with base plate (Page 16)
● Secure charging station with base plate to a working surface (Page 19)
1. Insert the USB cable or power cable with the cylindrical side into the charging station.

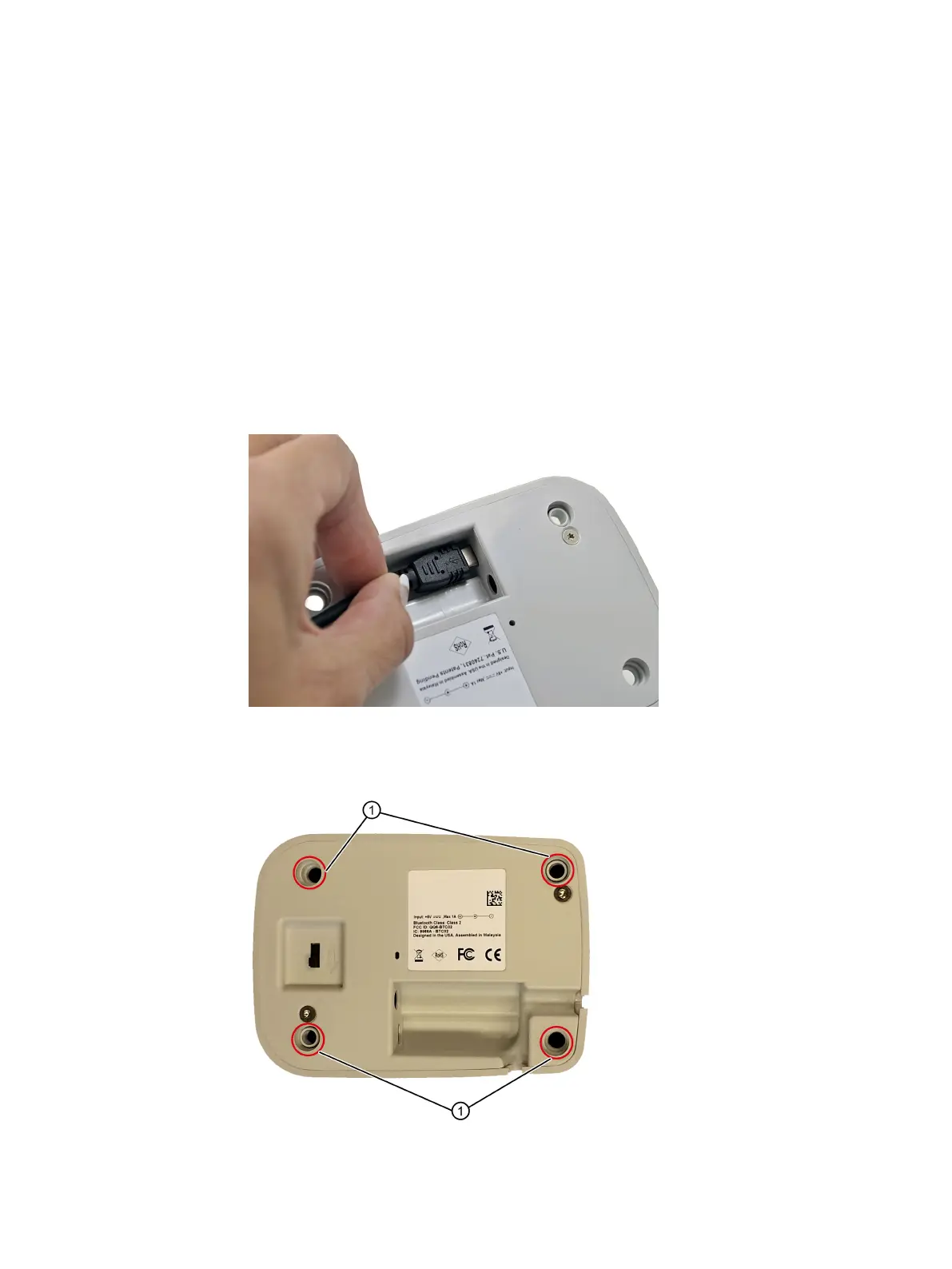

Figure 3-1 Inserting the USB cable/power cable into the charging station
2. To prevent the station from slipping: Secure the rubber feet to the corners ① on the
underside of the charging station.
Figure 3-2 Charging station: Securing the rubber feet
