Installing and connecting (SIMATIC MV325)
3.2 Mounting the charging station with base plate and rubber feet
SIMATIC MV320 / SIMATIC MV325
16 Operating Instructions, 08/2015, C79000-G8976-C352-03
The charging station is ready for use.
3.2
Mounting the charging station with base plate and rubber feet
1. Insert the USB cable or power cable with the cylindrical side into the charging station.

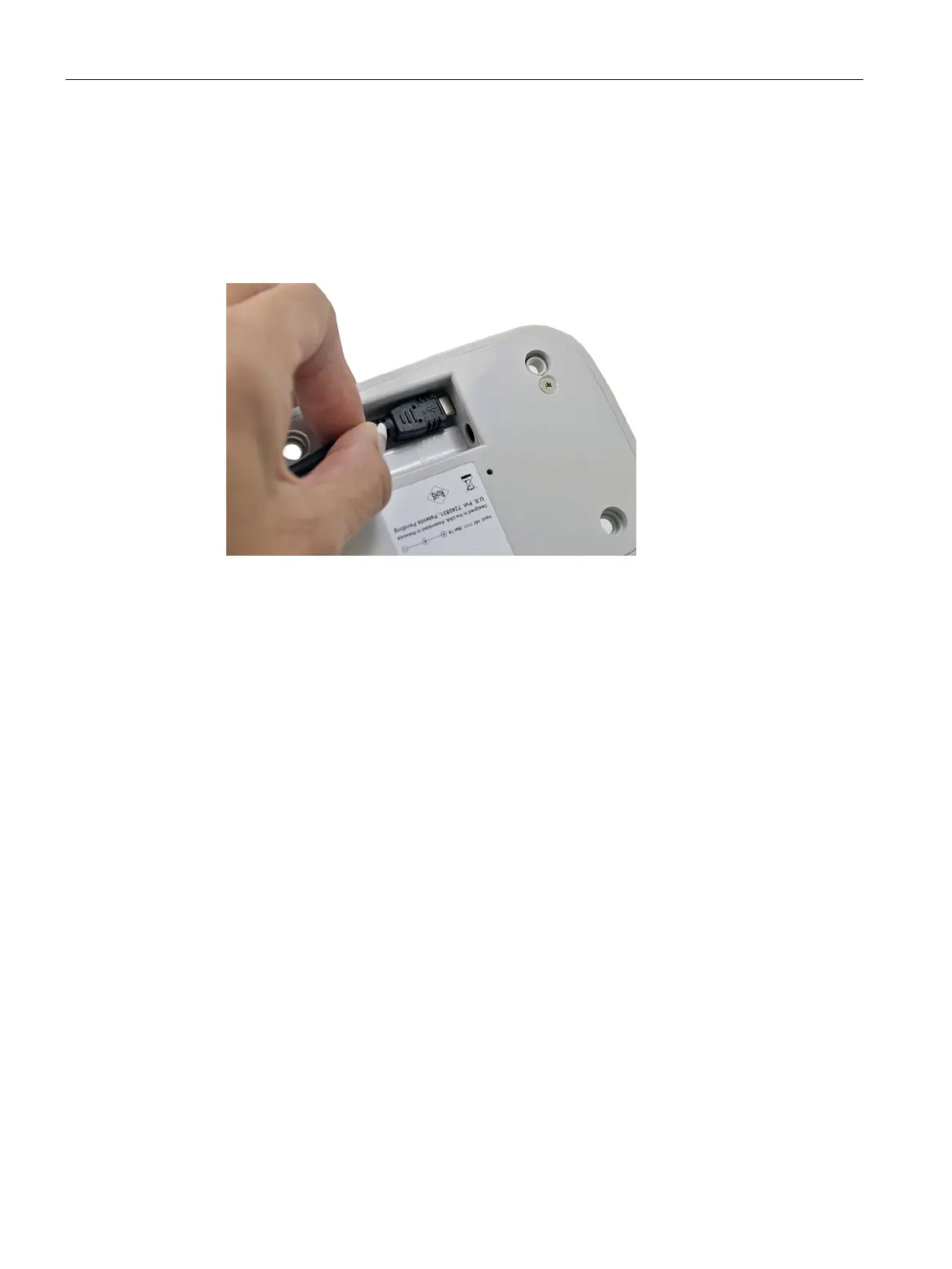

Figure 3-3 Inserting the USB cable/power cable into the charging station
For mounting the weighted base plate:
2. Lay the side of the base plate marked with "THIS SIDE DOWN" on the supporting
surface.
3. Place the charging station on the base plate.
