Connecting (SIMATIC MV320)
4.2 Connector assignment USB and RS-232 cable
SIMATIC MV320 / SIMATIC MV325
22 Operating Instructions, 08/2015, C79000-G8976-C352-03

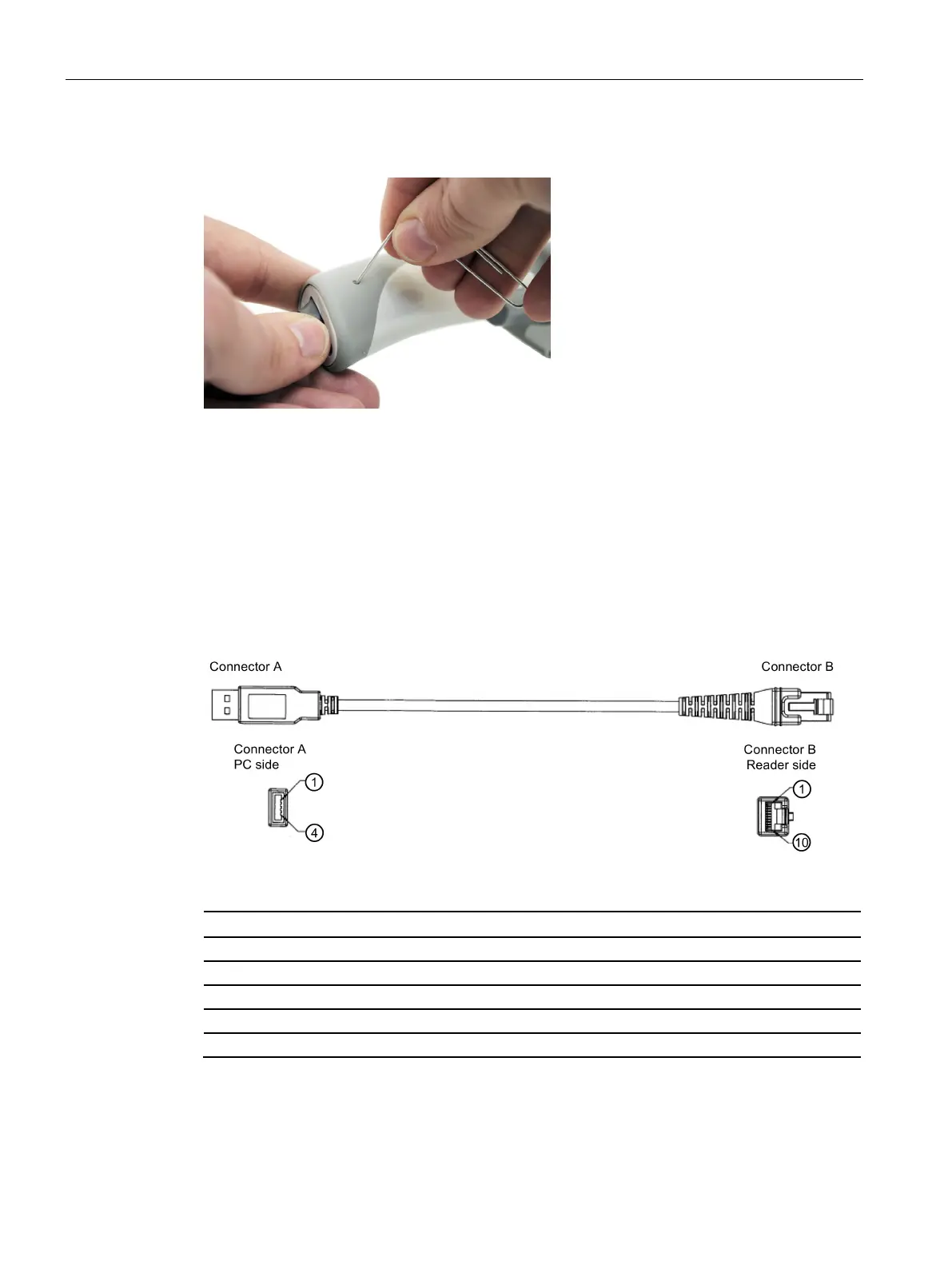

Removing the cable
1. Insert a paper clip into the opening on the side of the device handle.
2. Remove the cable carefully from the device.
4.2
Connector assignment USB and RS-232 cable
USB cable
Example with connector assignments
:
Table 4- 1 Connector table
Connector A
Designation
Wire
Color
Connector B
1
VIN
24 AWG
Red
1
2
DM
28 AWG
White
2
3
DP
28 AWG
Green
3
4
GND
24 AWG
Black
10
Housing
-
Shield
Blank
Housing
Description of the connector assignment of the reader (Page 24).
